Products Description
This trunk cable acts as the vital link between Spacelabs monitors and 5-lead ECG electrodes, translating physiological signals into actionable cardiac data. The 17PIN round connector (OEM part no. 700-0008-07) locks securely into Spacelabs Ultraview and similar systems, while the color-coded IEC/AHA lead ports simplify electrode connection-reducing setup time by 40% in emergency scenarios .

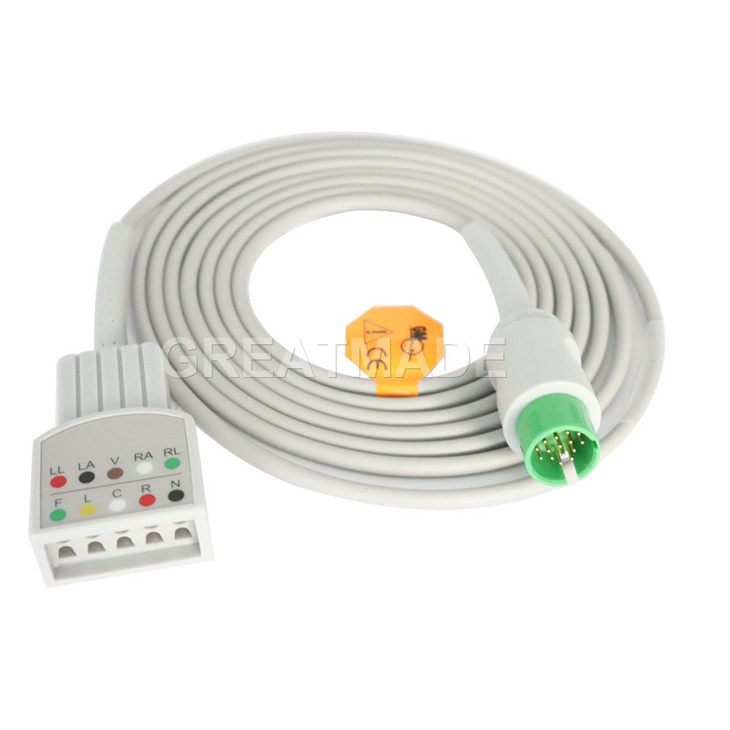

MC010A Tru-Link ECG cable , 5-Lead , IEC/AHA included, 10ft & 17PIN
OEM Part no. 700-0008-07
Main Structure
Connector End: 17PIN male connector with latch-lock design (Spacelabs monitor side).
Lead Ports: 5 color-coded ports (LL, LA, V, RA, RL) for IEC/AHA electrodes.
Conductors: Shielded for optimal signal-to-noise ratio.
Jacket: Latex-free, DEHP-free PVC.
Intended Use
Designed to transmit 5-lead ECG signals from electrodes to Spacelabs monitors, supporting real-time detection of cardiac abnormalities, arrhythmia monitoring, and post-surgical cardiac function assessment.
Engineered exclusively for neonatal care, this trunk cable redefines how healthcare providers monitor fragile newborns. Crafted from medical-grade, latex-free TPU, it's gentle on neonatal skin while withstanding the rigors of NICU environments. The 10ft. cable length balances mobility and stability, eliminating tripping hazards and cable clutter around incubators or radiant warmers.
Technical Specification
| Parameter | Specification |
| Model no. | MC010A |
| OEM Part no. | 700-0008-07 |
| Cabble Type | 5-Lead ECG Trunk Cable (TruLink Compatible) |
| Connector Configuration | 17PIN Male (Spacelabs Monitor End) → 5 IEC/AHA Lead Ports |
| Length | 10ft (3M) |
| Outer Jacket | Medical-Grade TPU (Latex-Free, DEHP-Free, Biocompatible) |
| Compatibility | Spacelabs Ultraview SL 91369, 90369, 90367, 90496 and Compatible Models |
| Minimum Order Quantiy | 1 pc |
Features
- TruLink Signal Precision
Shielded OFC conductors eliminate electromagnetic interference (EMI) from nearby devices (e.g., ventilators, infusion pumps), ensuring ECG tracings are crisp and artifact-free-critical for accurate diagnosis.
- 17PIN Latch-Lock Reliability
The connector's built-in latch clicks into Spacelabs monitors, preventing accidental disconnection during patient transfers or code situations.
- Dual IEC/AHA Compatibility
Color-coded lead ports (LL: Red, LA: Black, V: Brown, RA: White, RL: Green) support both IEC and AHA electrode standards, streamlining global clinical workflows.
- Clinical-Grade Durability
TPU jacket resists tearing, kinking, and chemical degradation, making it ideal for high-use environments like ICUs and ambulances.
Application Scenarios
Applicable Industry
- Hospitals & Critical Care Units
- Emergency Medical Services (EMS)
- Cardiology Clinics & Diagnostic Centers
- Biomedical Equipment Suppliers & Distributors
Applicable Fields
- ICU/CCU: Continuous 5-lead ECG monitoring for post-cardiac surgery or septic shock patients.
- Emergency Department: Rapid arrhythmia detection during chest pain or cardiac arrest triage.
- Ambulance Transport: Stable signal transmission for pre-hospital STEMI (ST-Elevation Myocardial Infarction) assessment.
- Cardiology Clinics: Routine 5-lead ECG screenings for arrhythmia or ischemia.
Purpose
This cable serves as the neural pathway for Spacelabs ECG monitoring, enabling:
- Real-time detection of life-threatening arrhythmias (e.g., ventricular fibrillation).
- Assessment of myocardial ischemia during stress tests or post-PCI (percutaneous coronary intervention) care.
- Compliance with cardiac monitoring protocols in critical care settings.
Pictures
Company Details
Greatmade Tech Limited is a professional manufacturer of medical cables, such as SpO₂ sensors, SpO₂ adapter cables (extension cables), patient monitor trunk cables and leadwires, ECG cables, temperature probes, and NIBP cuffs. Our products are widely used in patient monitors, EKG, EEG, and Holter systems. All accessories are fully compatible with both domestic and international patient monitoring devices.
We offer a wide selection of connectors with various contact configurations, including multipole contacts, coaxial, fiber optic, and fluidic connectors. In addition, we provide a range of single-use connectors and connectors for mains power.
These push pull self-latching circular connectors are especially adapted for below applications :
● Medical electronics
● Test and measurement
● Industrial electronics
● Automotive
● Aesthetically pleasing design
FAQ
Q1: Is this cable compatible with all Spacelabs monitors?
A1: It is optimized for Spacelabs Ultraview SL 91369, 90369, and similar models. Contact our team with your monitor's model for exact compatibility.
Q2: Can it be used with 3-lead electrodes?
A2: No. It is designed exclusively for 5-lead IEC/AHA electrode sets. For 3-lead needs, check our catalog for compatible cables.
Q3: Is it compatible with wireless ECG modules?
A3: No. This is a wired trunk cable for direct connection to Spacelabs' built-in ECG port.
Q4: What if ECG waveforms are distorted?
A4: Check for EMI sources (move the cable away from devices), ensure electrodes are properly attached, or clean connectors with alcohol swabs. Our 24/7 tech support can assist with troubleshooting.
