ECG Multi-Link Trunk Cable for Drager

ECG Multi-Link Trunk Cable for Drager/ Siemens

Name: SC9000 XL Multi-Link Trunk cable ( Spo2 , Temperature , ECG )

Greatmade No.: MC049

Compatibility

Connectors

• The distal end features a 16-pin rectangular Dräger Infinity connector, while the proximal end includes a dual-pin connector and a dual 7-pin connector.

Cable

• Material: Typically made of TPU, which provides good flexibility and durability.
• Color: Mostly gray.
• Length: 2.7 meters.

Others

• Operating Temperature: 0°C to +40°C
• Storage/Transport Temperature: -5°C to -40°C
• Humidity: 0% to 80% (non-condensing) for operation, storage, and transport
• Pressure: 86 kPa to 106 kPa

Code	MC049
Description	Multimedia-POD cable
Connector Material	PVC
Socket	a double-pin connector, Grey (ABS)
	7-pin Grey (PVC)
	7-pin Blue (PVC)
Connector inside	copper foil
hardware	Multifunctional cable with a five-finger shape
Shell	Grey
pin for connector	1.0*16.3 male
Pin for spo2 ,temp	1.0*21.95 female
Pin for ECG	1.5*19mm
Resistance	1K,3W
Magnet ring size	3.5*1.5*5mm
	9.8*10*5.7mm
	9.5*14.5*5.6
Discharge tube	Discharge tube
Cable Diameter	8.5mm
Lead standard	AHA/IEC
Length	2.7m
Label code	s / n Greatmade
Packing	1 piece per pack
Classification	Class I
Compliance	Class I device complies with Directive 93/42

• Signal Transmission: Accurately and stably transmits ECG signals, ensuring that medical staff receive reliable cardiac data for patient diagnosis and monitoring.
• Multi-parameter Support: In addition to ECG signal transmission, some cables are compatible with parameters such as SpO₂, temperature (×2), FiO₂, etc., meeting the requirements for multi-parameter monitoring.
• Reliable Quality: The product complies with certification standards such as CE and ISO. The production process includes cable cutting, welding, molding, assembly, and testing, ensuring product quality and stability.

Mainly used in medical settings such as hospitals and clinics. Compatible with Dräger and Siemens ECG monitors and multi-parameter monitoring devices, it helps provide accurate ECG data for the evaluation and diagnosis of heart function. It plays an important role in the diagnosis, treatment, and monitoring of cardiovascular diseases.

ECG Multi-Link Trunk Cable for Drager/ Siemens

Connect the ECG lead wire to the appropriate patient monitor and verify that the operation follows the instructions in the user manual. ECG electrodes should be connected to the patient in the correct order. Ensure that the lead wires are connected separately to avoid entanglement, as tangled wires may cause signal interference, such as heart rate fluctuation or waveform distortion during monitoring.

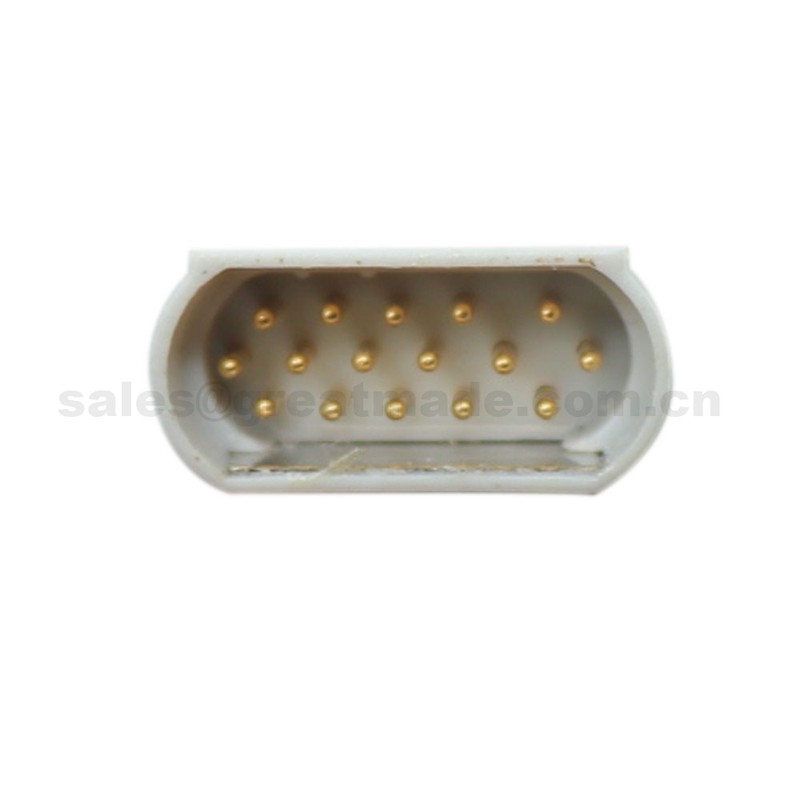

Connector

To connect other accessories

Multi-med ECG trunk adapter cable

Equipments

Greatmade is a specialized medical manufacturer. We focus on producing a wide range of medical products, including patient monitors, ECG accessories, and various medical cables such as SpO₂ sensors, ECG cables, and EKG cables. Our NIBP cuffs, temperature probes, connectors, and sensor kits are also well - received in the market. Moreover, we are experts in manufacturing Plastic Pull - Push self - latching circular connectors.

Quality is at the heart of everything we do. We strictly follow international standards to ensure our products meet the highest requirements. Count on Greatmade for reliable medical solutions.
