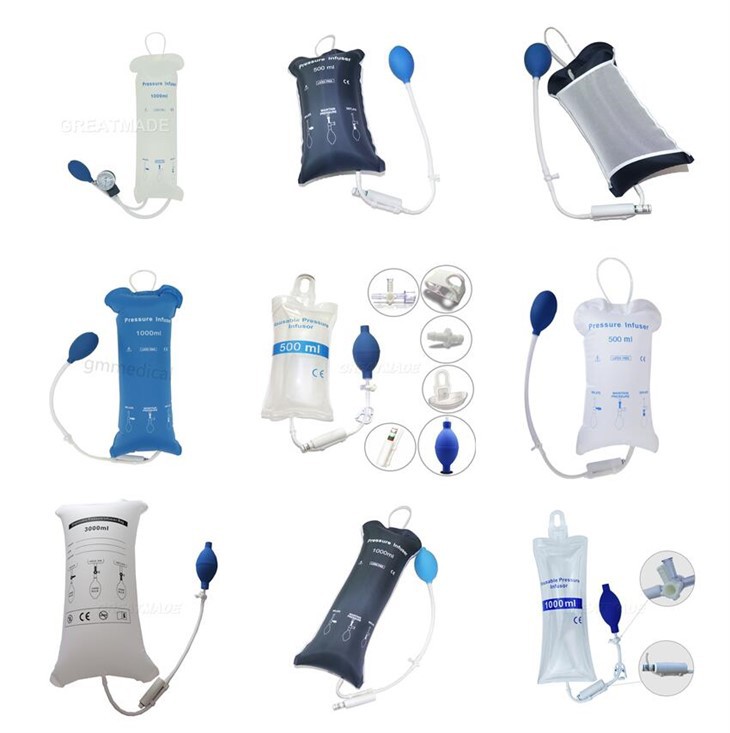

3000ml, 500ml 1000ml Infusion Pressure Bag
Overview
The infusion pressure bag is primarily designed for rapid pressure input during blood transfusions, ensuring that liquids such as blood, plasma, and cardiac arrest fluids are quickly delivered to the body. It can also continuously pressurize heparin-containing solutions to flush the built-in arterial manometer tube. Convenient, safe, and reliable, it is an essential tool for emergency treatment in both field and clinical settings. Available in 500ml and 1000ml sizes, it provides a vital solution for urgent medical needs.
Application:
This product is intended for use by medical units in emergency situations to accelerate fluid or plasma infusion through pressurization when rapid input is urgently required. While reducing the labor intensity for doctors and caregivers, it is widely applicable for emergency blood transfusions, infusions, and various invasive arterial pressure tests in clinical departments such as emergency, operating rooms, anesthesia, and intensive care, helping to ensure smooth fluid delivery.
 |
 |
 |
 |
|
|
|
 |
|
Materials and Structure
The infusion pressure bag consists of a double-layer hollow transparent silicone rubber bag, featuring a hard outer layer and a soft inner layer. The inner and outer layers are sealed together in a cylindrical shape. The upper sealing edge is equipped with a plastic buckle and hook, while the lower end is connected to a hose that splits into two branches. These are connected to the inflation chamber, with one branch linked to a spring pressure gauge and the other to an inflatable silicone ball. The upper end of the silicone ball is connected to a three-way joint for exhaust and pressure regulation.
Performance
- Air tightness: The infusion pressure bag must exhibit no leakage and maintain good air tightness for at least 3 hours.
- Load capacity: The infusion pressure bag straps can support a load of up to 1 kg.
Model
- Inflatable bag.
- Back net
- Three-way value
- Pressure ball
- valve
- Pressure display
- air tube
- edge stitching
Instructions for use
Place the plasma bag or infusion bag into the infusion pressure bag, aligning them properly. Insert the hanging strap of the infusion pressure bag into the ring, then hang it on the infusion stand.
Squeeze the silicone ball by hand to inflate air into the airbag of the infusion pressure bag through the valve and tubing.
The flow rate and volume of fluid are controlled by the pneumatic compression of the infusion pressure bag, and can be adjusted manually as needed.
After the infusion is complete, press the air release valve to discharge air from the airbag.
To continue infusion, repeat the steps above.
- Special Recommendation: This product is intended for use by a single patient only, to avoid cross-infection.
How to Clean:
After use, rinse the pressure infusion bag with tap water, then wipe or air dry. Keep the product clean; disinfection or sterilization is not required. The transparent version may be cleaned with 10% bleach or 70% acetone. Do not soak or immerse this product in water.
If aging cracks appear on the three-way connector or inflation ball during use, causing air leakage, replace the inflatable balloon and infusion tee or pressure monitor to ensure normal operation.
Note:
The packaged infusion pressure bag should be stored indoors in a well-ventilated area, with a relative humidity of no more than 85% and free from corrosive gases.
When stored and used under proper conditions, the product is valid for one and a half years from the date of manufacture (recommended usage period: one year). If it malfunctions within this period, the manufacturer will provide repair or replacement free of charge.
