The standard keyed Series B LH-FGG
The characteristic feature of these connector series is a keying system which allows higher contact density and prevents all errors in alignment. The various keying alternatives prevent unwanted cross mating of otherwise similar connectors. It is also possible to use crimp contacts to reduce cable assembly time. These connector series, include the 0B to 5B range as well as the 00 multipole and 2G (shortened version of the 2B series), some vacuumtight models are also available.
The B Series JH-FGG offers a flexible, practical, durable and reliable circular multipole connector for applications needing quick and secure Push-Pull locking.
The self-latching system allows the connector to be mated by simply pushing the plug axially into the socket.
Once firmly latched, connection cannot be broken by pulling on the cable or any other component part other than the outer release sleeve.
Making it an ideal choice for semiconductor manufacturing and testing processes, test and measurement, instrumentation, medical devices, research and audio/video applications.
MAIN FEATURES:
B series connectors provide the following main features:
– security of the Push-Pull self-latching system – multipole types 2 to 64 contacts
– solder, crimp or print contacts (straight or elbow) – high packing density for space savings
– 360° screening for full EMC shielding. – keying system («G» key standard)
– multiple key options to avoid cross mating of similar connectors for connector alignment
Part Section Showing Internal Components
| NO. |
Fixed socket |
Straight plug |
| 1. |
outer shell |
outer shell |
|
2. |
earthing crown |
latch sleeve |
| 3. |
retaining ring |
collet nut |
|
4. |
hexagonal nut |
split insert carrier |
| 5. |
locking washer |
insulator |
| 6. |
insulator |
male contact |
| 7. |
female contact |
collet |
Technical Characteristics
Mechanical and Climatical
Characteristics Value Standard
Endurance > 5000 cycles IEC 60512-5 test 9a
Humidity up to 95% at 60° C
Temperature range - 55° C, +250° C
Resistance to vibration 10-2000 Hz, 15 g IEC 60512-4 test 6d
Shock resistance Shock resistance IEC 60512-4 test 6c
Salt spray corrosion test > 144h IEC 60512-6 test 11f
Protection index (mated) IP50 IEC 60529
Climatical category 55/175/21 IEC 60068-1
Electrical
Characteristics Value Standard
Shielding at 10 MHz > 75 dB IEC 60169-1-3
efficiency at 1 GHz > 40 dB IEC 60169-1-3
The various tests have been carried out with JH-FGG and JH-EGG connector pairs, with chrome-plated brass shell and PEEK insulator.

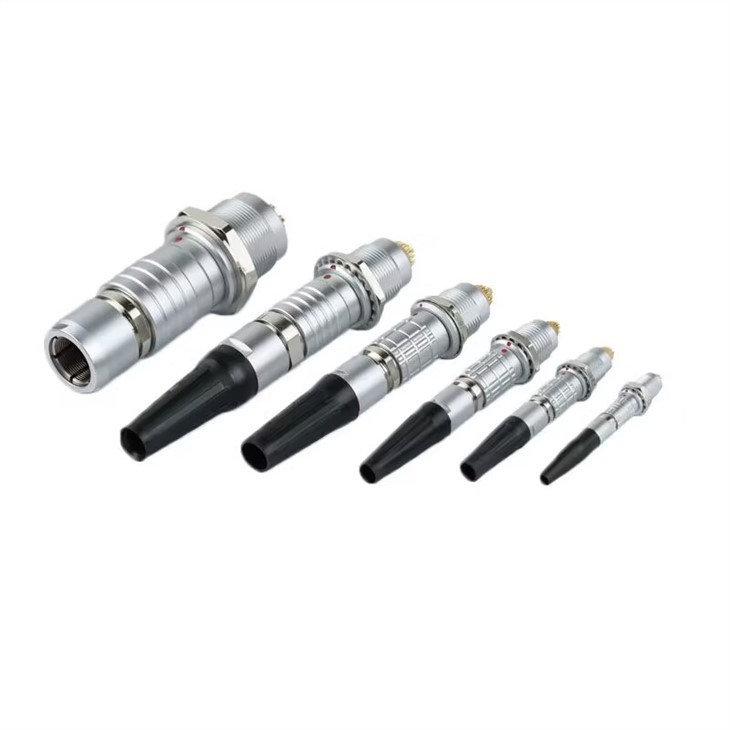

JH-FGG B Series Male Straight Plug
JH-FGG Straight plug, key (G) or keys(A…M and R), cable collet
| Reference | Dinmensions (mm) | |||||
| Model | Series | A | L | M | S1 | S2 |
| LFGG | 00B | 6.4 | 28.5 | 20.5 | 5.5 | 5 |
| LFGG | 0B | 9.5 | 36 | 26 | 8 | 7 |
| LFGG | 1B | 12 | 43 | 32 | 10 | 9 |
| LFGG | 2B | 15 | 50 | 38 | 13 | 12 |
| LFGG | 3B | 18 | 58 | 43 |
15 |
14 |
JH-FGG Straight plug, key (G) or keys (A…M),cable collet and nut for fitting a bend relief
| Reference | Dinmensions (mm) | |||||
| Model | Series | A | L | M | S1 | S2 |
| LFGG | 00B | 6.4 | 28.5 | 20.5 | 5.5 | 5 |
| LFGG | 0B | 9.5 | 36 | 26 | 8 | 7 |
| LFGG | 1B | 12 | 43 | 32 | 10 | 9 |
| LFGG | 2B | 15 | 50 | 38 | 13 | 12 |
| LFGG | 3B | 18 | 58 | 43 |
15 |
14 |
Details
Product name:Push Pull Self-latching Multipole Straight Plug Connector
Origin:China Brand Name:Greatmade Type:circular push pull
Environment:Indoor Gender:Female/Male Surface Treatment:Pearl chrome
Pin:2 to 16 pin IP Degree:IP50 Contact Type:Solder
Contact Treatmen:Plated gold Endurance:Above 5000 times push-pull Housing Materia:Chromium-plated brass
Insulator Material:PPS Application:Automotive/Communication/Industry/Led display
Packaging
1 PCS connector in a PE bag
50-100 PCS connectors in a small box/cartoon
- Port:Shenzhen,China
FAQ
Q1:How does a push pull connector work?
Push-pull connectors successfully prevent accidental disconnections through the use of a strong, self-latching mechanism that allows the connector to be mated by pushing the plug into the socket. However, the connection cannot be broken by merely pulling on it.
Q2:Can you produce customized product orders? OEM or ODM orders?
Sure. With OEM and ODM manufacturing experience, we are able to provide you with one-stop Custom Connector Solutions.
Q3:Do you provide free sample?
No, and you need to pay for delivery fee.
Q4:How do you transport the goods?
As our clentele demand for,it may take place by AIR / SEA Freight / express Delivery (DHL/UPS/FEDEX,eg.).
