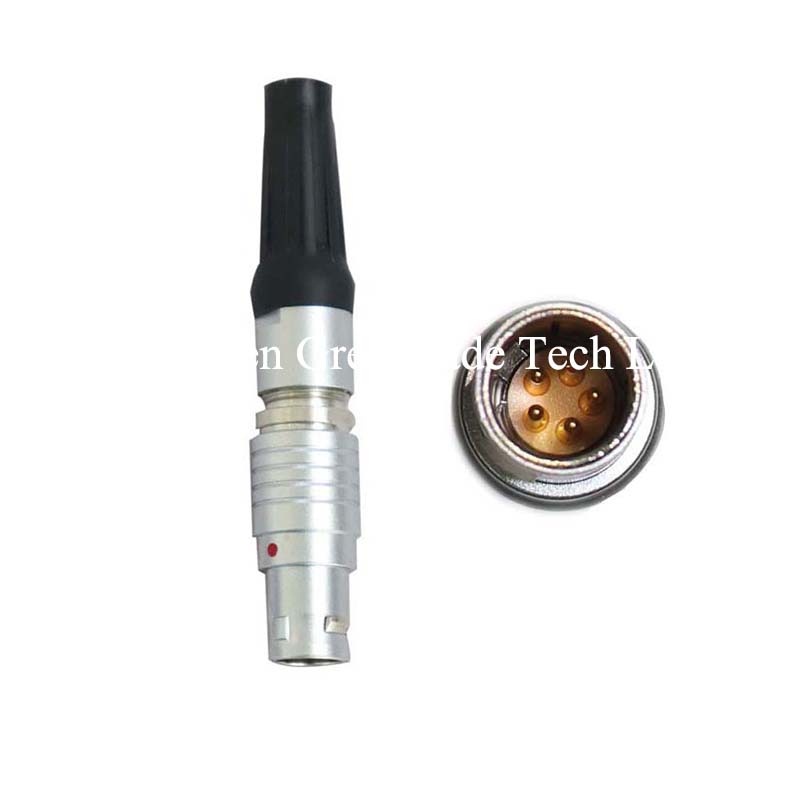

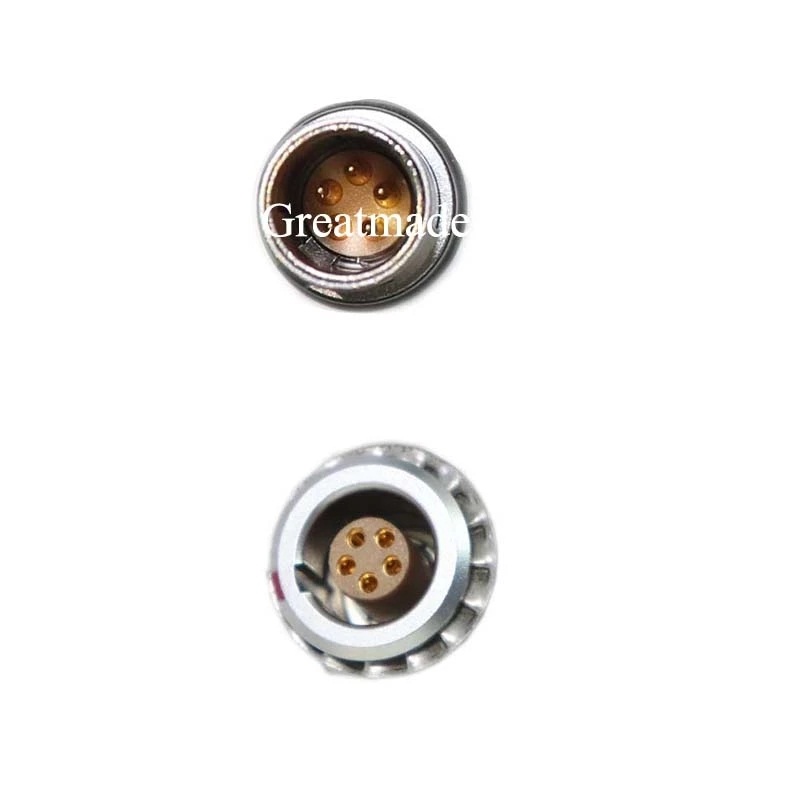

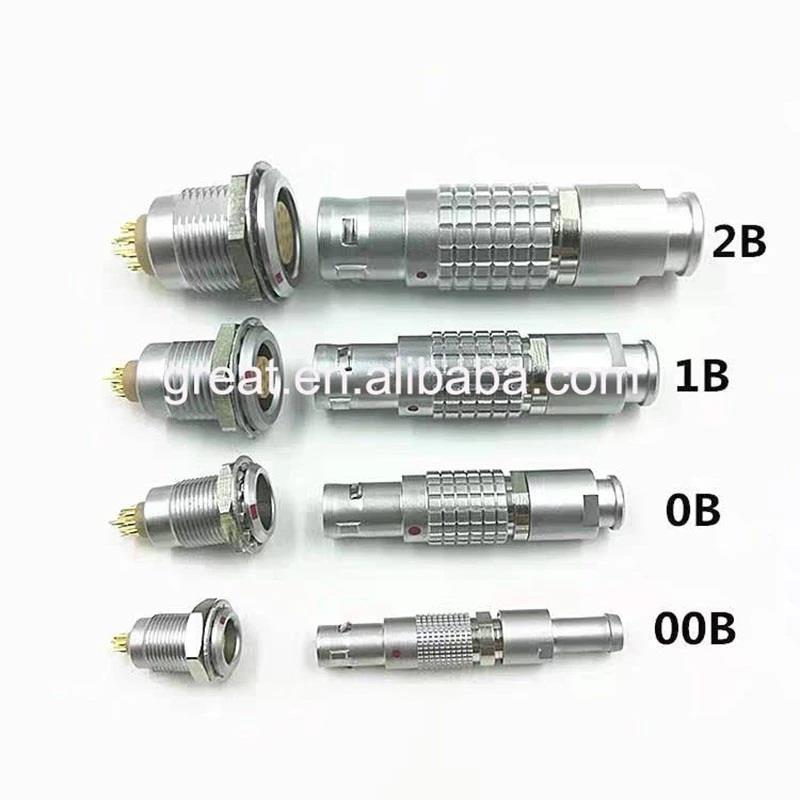

1B 5 Pin Multipole Circular Metal Connector

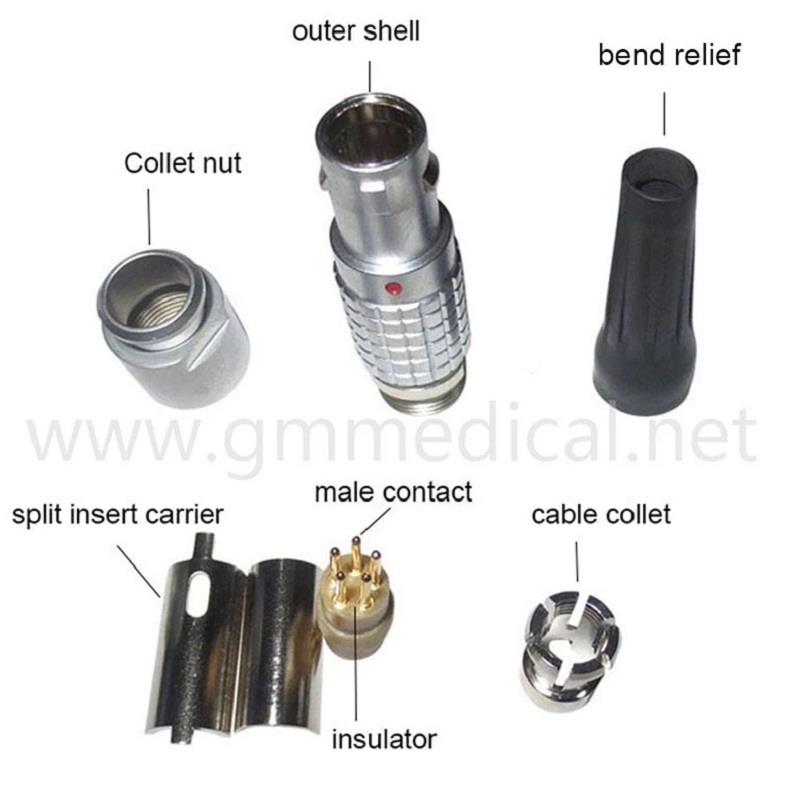

Quick Details Place of Origin: Guangdong, China (Mainland) Number: EGG FGG.1B.305.CLAD62Z Type: Circular Push Pull Application: Automotive, Lighting, Electrical Connector Gender: Female/Male, Female and Male Product Parameters Number FGG.1B.304.CLAD62Z EGG.1B.304.CLL Size/Series 1B 4pin Shell Style/Model Straight plug,cable collet Fixed receptacle, nut fixing Keying 1 key (alpha=0, plug: male contacts, receptacle: female contacts) Housing Material Brass (chrome plated) shell and collet nut, nickel plated brass latch sleeve and mid pieces Configuration Brass (gold plated) Insulator PPS Contact Type Solder Endurance (Shell) 5000 mating cycles Temp (min) -40 deg Temp (max) 200 deg C Humidity (max) <=95% [at 60 deg C / 140 F] Vibration 15 g [10 Hz - 2000 Hz] Shock Resistance 100 g [ 6 ms] Salt Spray Corrosion >144 hr IP Rating IP50 Pin: 1B 5pin Housing Material: Brass Contact
