Product Parameters
| Number |
FGG.1B.307.CLAD62Z EGG.1B.307.CLL |
| Size/Series | 1B 7pin |
| Shell Style/Model |
Straight plug,cable collet Fixed receptacle, nut fixing |
| Keying | 1 key (alpha=0, plug: male contacts, receptacle: female contacts) |
| Housing Material | Brass (chrome plated) shell and collet nut, nickel plated brass latch sleeve and mid pieces |
| Configuration | Brass (gold plated) |
| Insulator | PPS |
| Contact Type | Solder |
| Endurance (Shell) | 5000 mating cycles |
| Temp (min) | -40 deg |
| Temp (max) | 200 deg C |
| Humidity (max) | <=95% [at 60 deg C / 140 F] |
| Vibration | 15 g [10 Hz - 2000 Hz] |
| Shock Resistance | 100 g [ 6 ms] |
| Salt Spray Corrosion | >144 hr |
| IP Rating | IP50 |

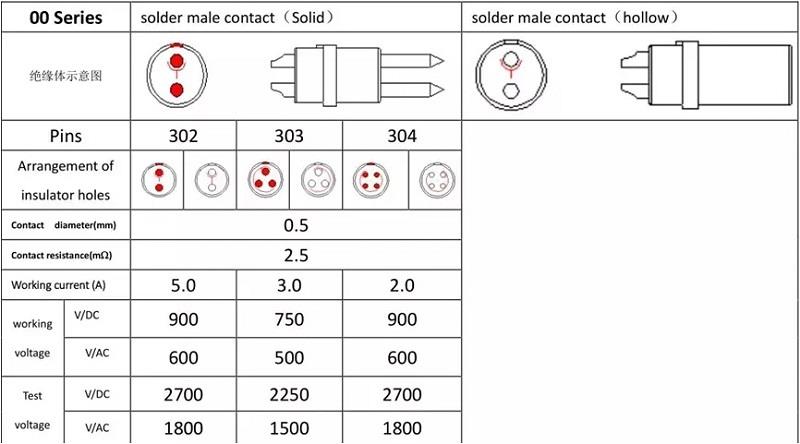

Insulator specs for B series:

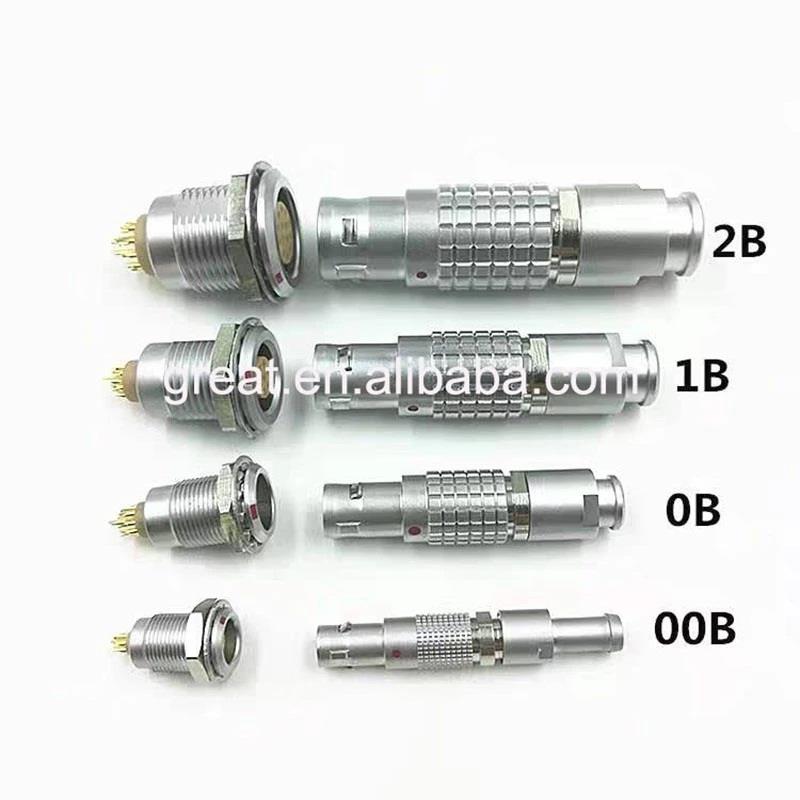

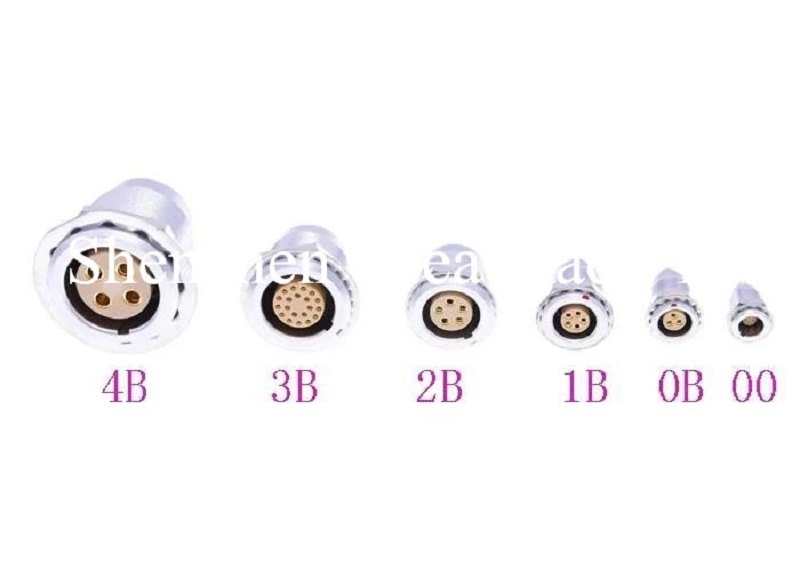

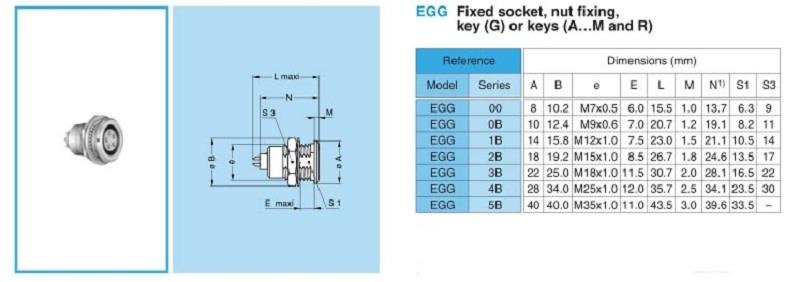

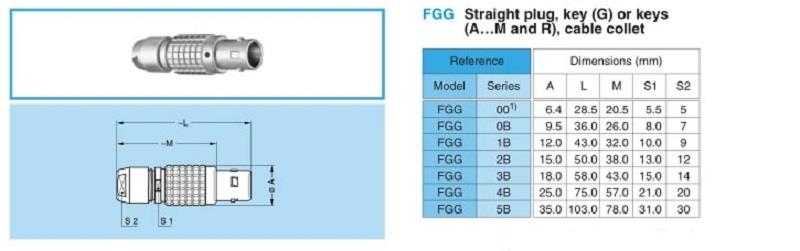

Prodcut Size:

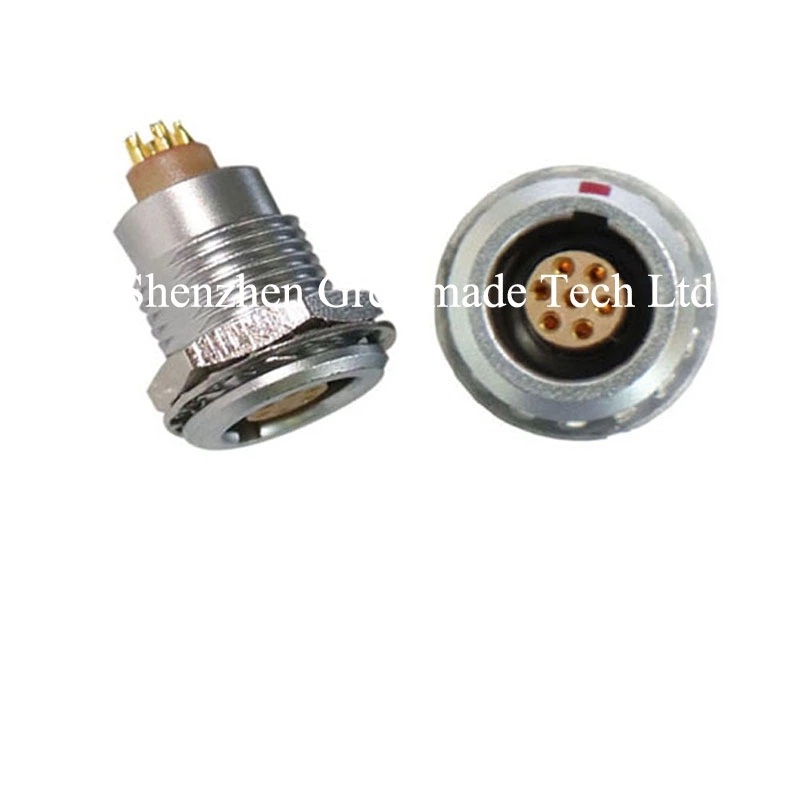

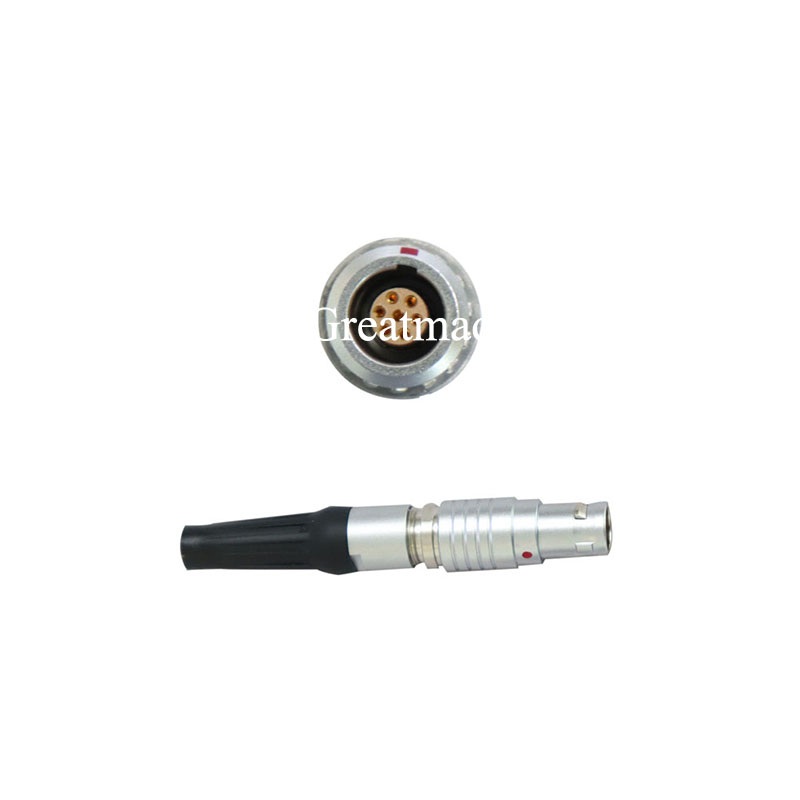

Product characteristics
Internal structure
Scope of Application
Our Certification:
EC, CE ,FDA
