2.4 inch high-resolution LCD screen with adjustable brightness, display effect is clearer in different environment.
-

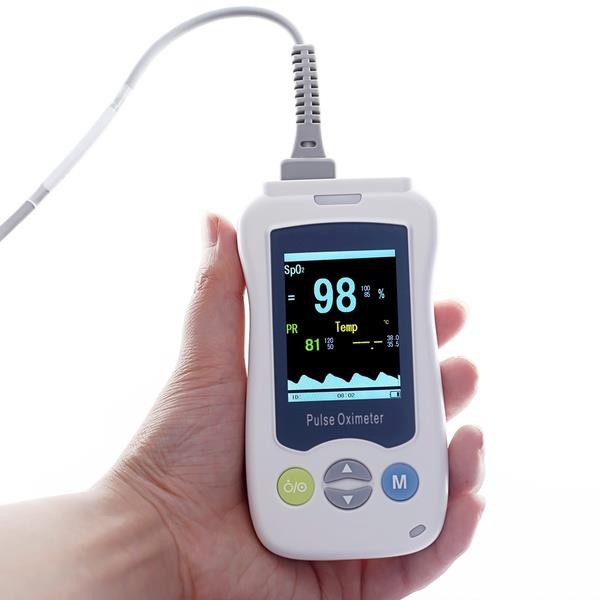

Intelligent parameter monitoring interface,Real-time display values and waveforms.
-
Low perfusion <0.4%. Anti-interference. Detection is simpler and more accurate.
-
Probe optional, applicable to Adult, Child and Neonatal patients. Shows SpO2 and PR.
-
Threefold alarms: Words, Audio and Visual alarms. Support English, Spanish, Turkish language
Medical Mini Handheld Pulse Oximeter Description:
Handheld Pulse Oximeter:

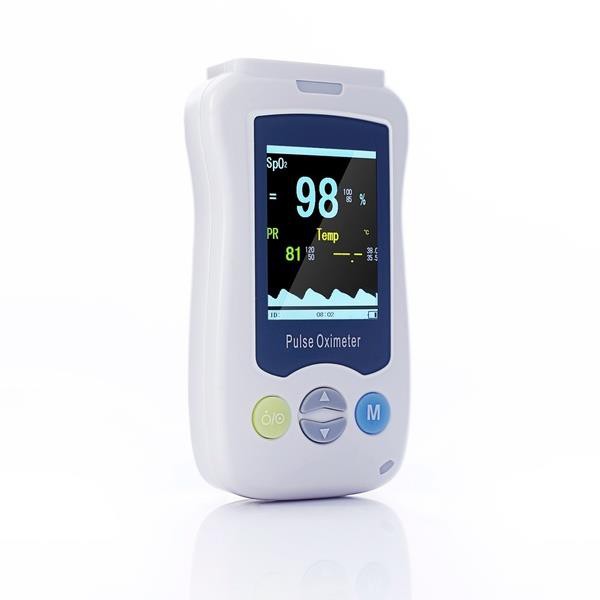

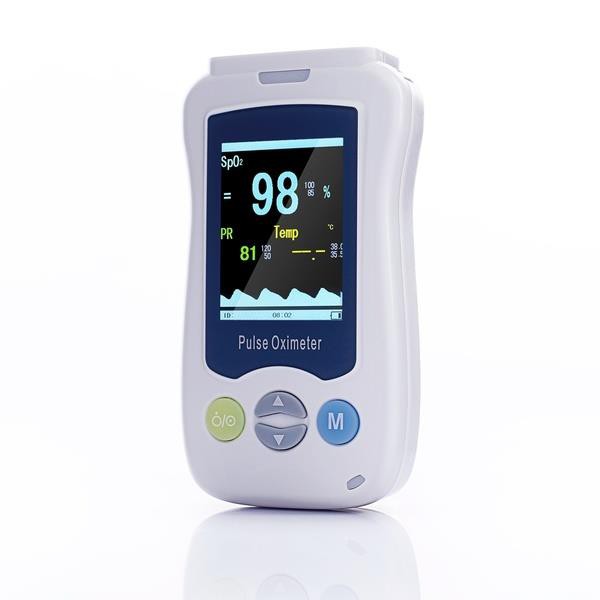

(1)2.4-inch high-brightness color LCD display, while providing brightness adjustable function, so that products in a variety of environments can achieve a clearer display
(2)Real-time display of numerical and waveform, intelligent and friendly interface design, is conducive to the user more clearly, observation and analysis of patient monitoring information
(3)With voice, text and visual alarm function, three alarm, to provide physiological alarm and technical alarm, physiological alarm on the lower limit can be set according to their own
(4)Digital blood oxygen technology, anti-motor interference, anti-weak perfusion ability
(5)Pulse modulation sound
(6)Battery power indication
(7)Has a menu setting function
(8)Supports multiple languages: English, Spanish, Turkish
(9)Stylish, exquisite, small size, easy to carry
(10)Applicable to a wide range of adults, children, newborns can be used
Medical Mini Handheld Pulse Oximeter Features:
1. Screen resolution: 2.4 inch color LCD display screen
2. SpO2 Measurement range: 70~99%
3. SpO2 Resolution: ±1%
4. SpO2 Accuracy: ±2% (70%~99%), unspecified (<70%)
5. Pulse rate Measurement range: 30~240 bpm
6. Pulse rate Resolution: ±1%
7. Pulse rate Accuracy: ±2bpm or ±2% (select larger)
8. Low Perfusion ≤0.4%
9. Power: 1.5V (AAA size)
10. alkaline battery x 3 (Not included )
11. Supply voltage: 4.5~5V
12. Warranty time:1 years
13. Size: 68.6*26.8*130mm
14. Commodity Quality Certification:CE
• Long time monitoring
• Adult, children, newborn three probes can choose
• Medical clinical level settings
Operation Instruction

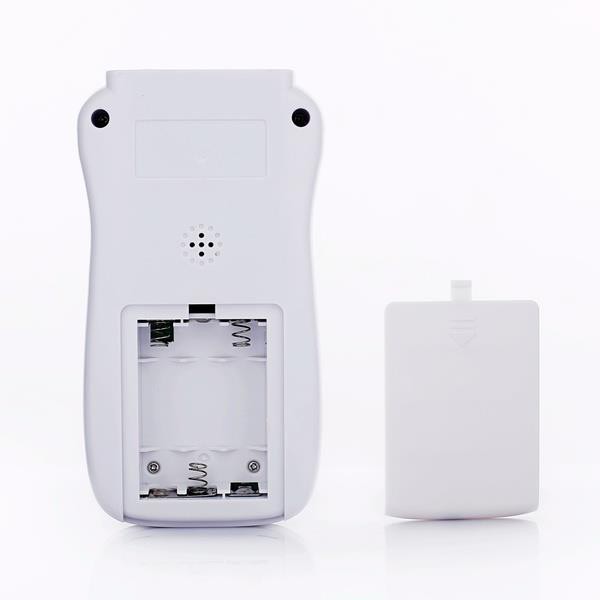

1.Install 3 AAA batteries into battery cassette before covering its cover
2.Plug 1 finger into rubber hole of the oximeter
3.Press button on the front panel;
4.Don't tremble your finger when the oximeter is working. Your body is not recommended on moving status.
5.Read relevant datum from the display screen.
6.Please replace new batteries when OLED indicates the batteries are in low power.
Specifications:
Display mode: 2.4 inch colorful OLED screen
Oxygen saturation:
1. Oxygen saturation: Measuring range:70%-99%
2. Accuracy of measurement: 80%-99% (range ±2%) 70%-79%(range ±3%) No requirement for less than
70%
3. Resolution: Oxygen saturation ±1%
Environment:
1. Temperature:5℃-40℃
2. Storage temperature:-10℃-40℃
3. Environment humidity: 15%-80%( working hours 10%-80%)
4. Atmospheric pressure：86kPa-106kPa
Measuring way: Noninvasive, continuous monitoring of arterial oxygen saturation and pulse rate
Power: 3* AAA 1.5V alkaline batteries (not included)
Pulse frequency: 1. Measuring range: 30BPM-240BPM 2. Accuracy of measurement: ±1%
Color: White
Product Size:97*61*161mm
Product Weight(Gross Weight): 270g

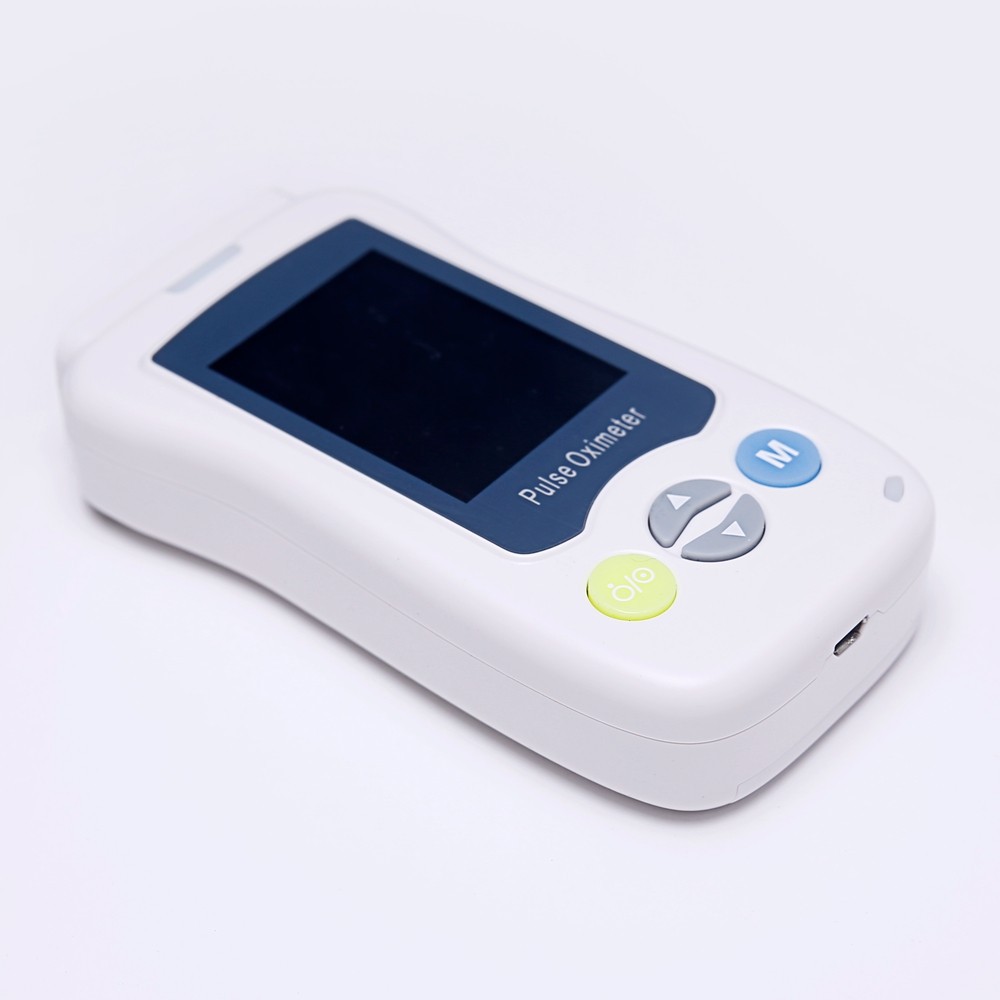

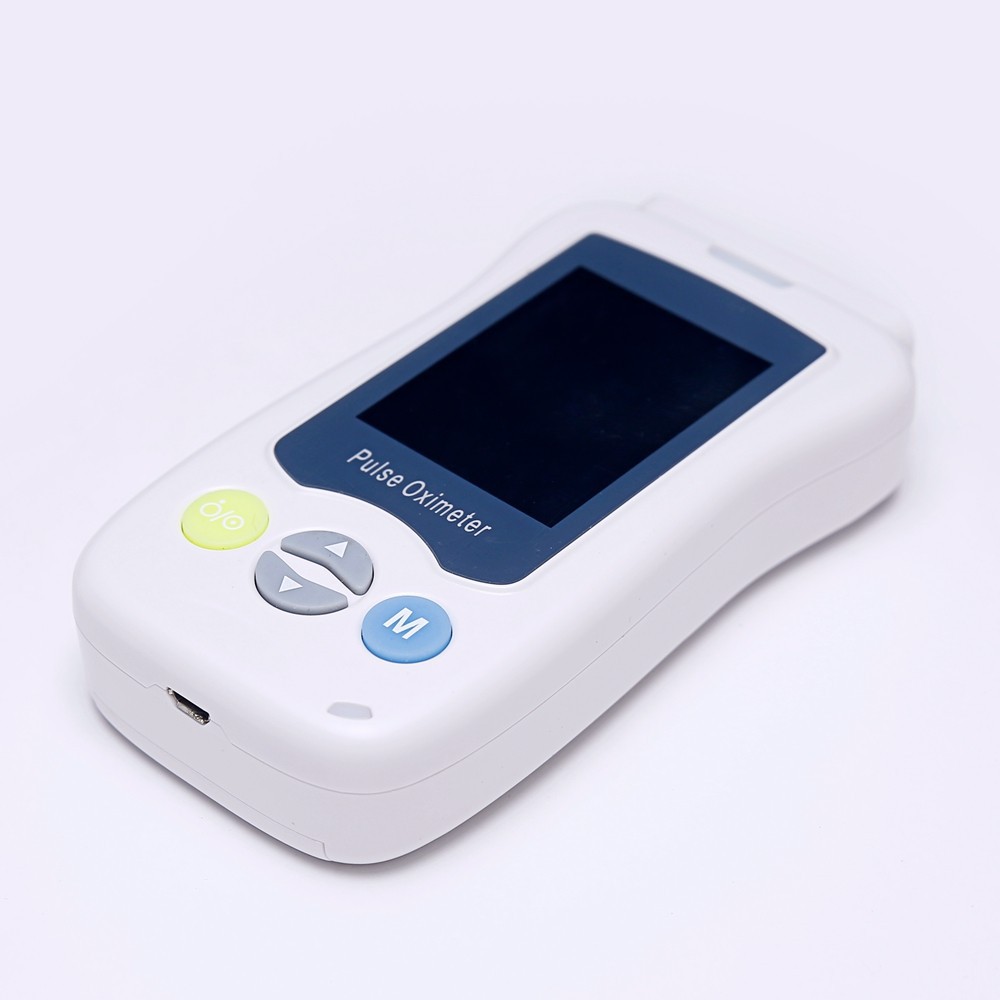

Pictures

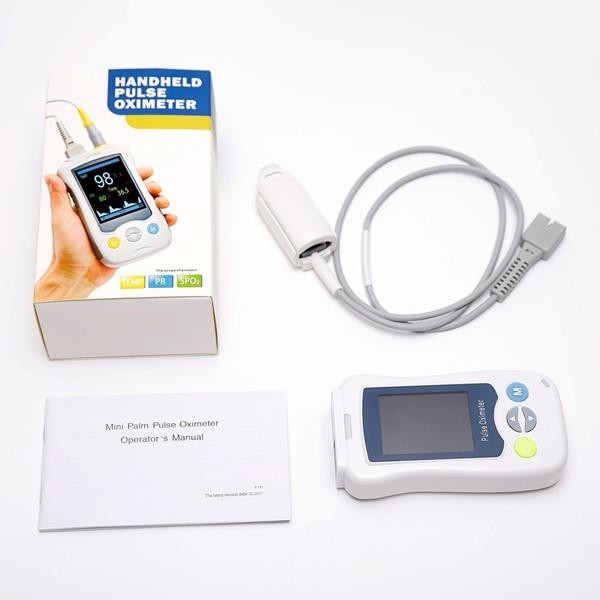

Packing List
1 x Handheld Pulse Oximeter
1 x probe
1 x Product Manual
For people: Adult Children Newborns Commodity Quality Certification: CE Screen resolution: 2.4 inch color LCD display screen SpO2 Measurement range: 70~99% SpO2 Resolution: ±1% SpO2 Accuracy: ±2% (70%~99%), unspecified (<70%) Pulse rate Measurement range: 30~240 bpm Pulse rate Resolution: ±1% Pulse rate Accuracy: ±2bpm or ±2% (select larger) Low Perfusion ≤0.4% Power: 3 AAA batteries required (not included) Supply voltage: 4.5~5V Warranty time: 1 years
