The Prince-100F Oximeter is a professional measurement and recording device for use in hospitals, health clinics or home users that need to do daily monitoring of their medical condition.
This model of handheld pulse oximeter is a portable device for monitoring SpO2, pulse strength, pulse rate with real-time pulse bar graph.
Has 70 hours of data storage and review with date and time.
High-resolution large LCD digital display with full color screen and switchable backlight.
Supplied with an adult probe. Optional infant and pediatric probes are also available for this model.
Description:
Healforce Prince-100F hand-held pulse oximeter is a portable device for monitoring SpO2, pulse rate, pulse strength, and perfusion index which is fast and reliable, this device is applicable to home, hospital, and clinic
SpO2, pulse rate, and perfusion index monitoring, and bar-graph of pulse as well as plethysmogam of SpO2 display
Provide reliable SpO2, and pulse rate measurements on any patient
Portable and lightweight
High accuracy and repetition
Visual and audible alarm
Battery status display
Store and review the measuring data
Automatic power-off function
Mount available
Features:
• Handheld size with detachable probes
• Large dot-matrix LCD display with switchable backlight
• Optional detachable probes for adult, pediatric and neonate measurement
• Accurate measurement of SpO2 and PR (pulse rate) with anti-motion technology, real time pulse bar display
• Switchable to PI (perfusion index) percentage and plethysmogram display
• Audio and visual alarm for abnormal readings, with adjustable alarm limit of SpO2 and PR
• Automatic power-off after finger out
• Function of data storage up to 70-hour record and review
• Optional PC data management software for data transmission and analysis
• 3xAA batteries power supply with power management
• Optional external power (AC 110~250V/60~50Hz)
Applications
Prince-100F Hand-held Pulse Oximeter is a portable device for monitoring Spo2, pulse rate, pulse strength, and Perfusion Index which are fast and reliable. This device is applicable both at home and in hospital.
Specifications:
Screen display: 2.2 inch OLED display
Monitoring parameters: SpO2, PR, PI
Waveform display: pulse intensity histogram, blood oxygen volume wave, SpO2 trend table, pulse rate trend chart
Pulse rate measurement accuracy: ±2%
Oxygen saturation measurement accuracy: ±2% (75%~100%)
Blood perfusion index: 0.1%
Alarm: audible and visual, auto setting range
Data storage: 384 hours ECG monitoring waveform can be stored(8 second interval sampling)
Data transmission: oximeter data management software can be download, playback analysis can be uploaded
External probe: big probe(standard), small probe(optional)
Measuring object: adult, elder, children
Power supply: 3*AAA battery

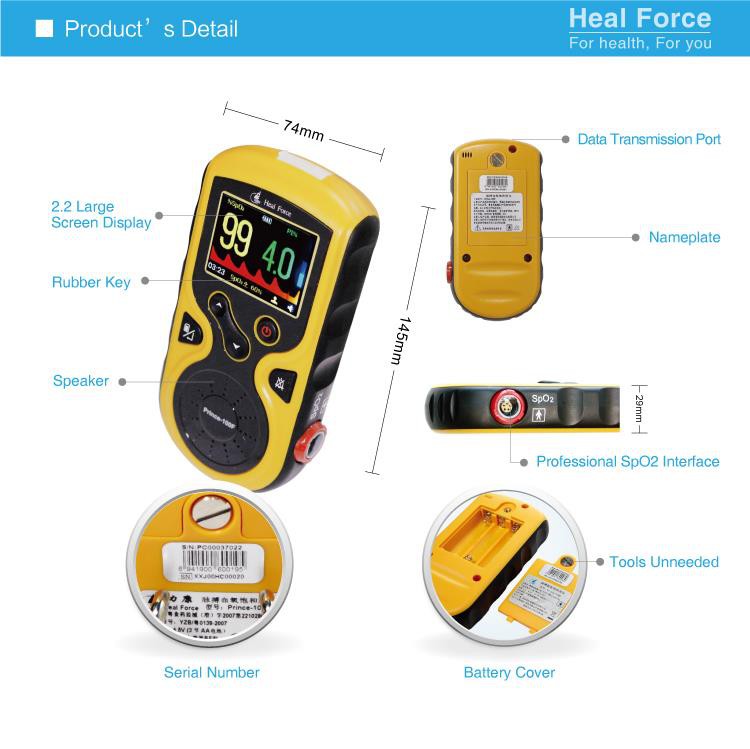

Product Size:224*160*70mm
Product Weight(Gross Weight): 480g
Measurement Parameters: SpO2, Pulse Rate, Perfusion Index Waveform Display: Plethysmogram, Pulse intensity histogram Alarm Function: Audio and Visual Alarm Beep alarm for abnormal readings with adjustable limits (can be configured by user) Mute function - suitable for use during longer-term sleep apnea monitoring Automatic power-off after the finger is removed from the probe Optional PC data management software for transmission and analysis of measurement data (Link to download the software: https://goo.gl/P4G6eP) Includes metal stand with rubber feet to hold the unit in place while being used Brand: Heal Force Certification: FDA, CE, RoHS, ISO 13485, MDD93/42/EEC
Pictures

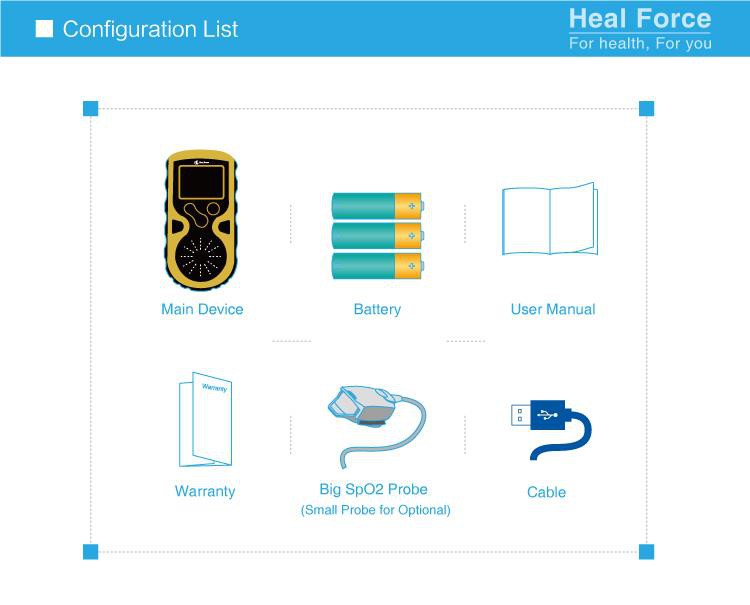

Packing List
1 x Heal Force Prince 100F Pulse Oximeter
1 x External Probe for Adult
1 x User Manual
1 x Warranty Card
Product's name: Handheld Pulse Oximeter
Model: Prince-100F
Screen: 2.2 inch OLED display
Monitoring parameters: SpO2, Pulse Rate, Perfusion Index
Waveform display: pulse intensity histogram, blood oxygen volume wave, SpO2 trend table, pulse rate trend chart
Accuracy Pulse rate: ±2%
Spo2: ±2% (75%~100%)
Perfusion index: 0.1%
Alarm: audible and visual, auto setting range
Data storage: 384 hours
Data transmission: Data management software, upload to PC
External probe: big probe(standard), small probe(optional)
Object: adult, elder, children
Batteries: 3*AAA Alkaline battery
