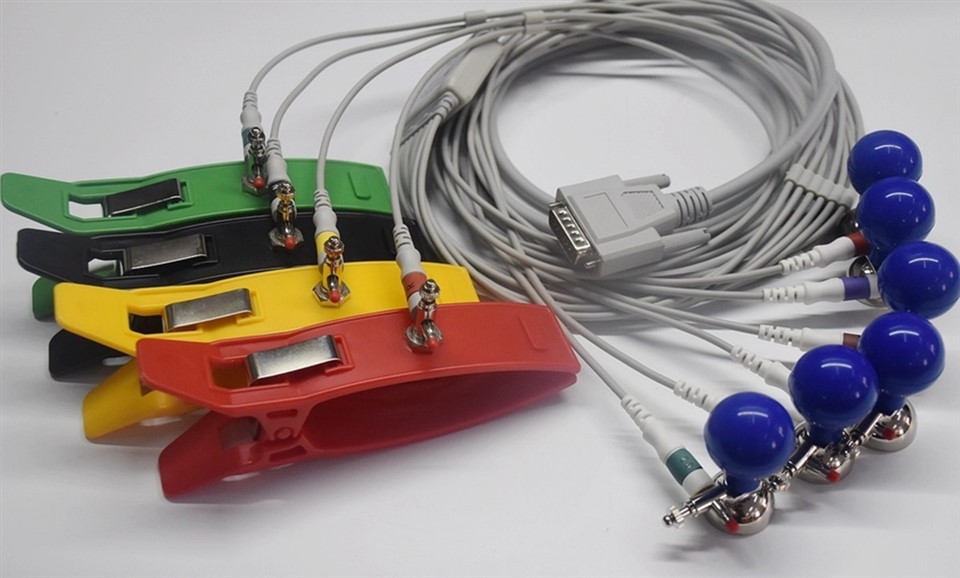

IEC EKG Cable Of Banana 4.0 Plug For Schiller

The IEC EKG Cable with Banana 4.0 plug for Schiller featuring a DB15M connector and Banana 4.0 plugs compliant with IEC standards, is a vital accessory for electrocardiogram (ECG) devices. Designed to ensure precise and stable transmission of cardiac electrical signals, it plays a crucial role in accurate cardiac monitoring and diagnosis, making it an indispensable tool for healthcare professionals.

Products Description

This IEC EKG Cable with Banana 4.0 plug for Schiller is a tailor - made accessory exclusively for Schiller series electrocardiogram (EKG) devices. Developed and manufactured in strict compliance with international IEC standards, it is equipped with core Banana 4.0 connectors that precisely match the signal transmission requirements of Schiller equipment. This ensures stable and interference - free transmission of cardiac electrical signals, providing clear and accurate raw data support for clinical EKG testing.

Part no. : EC010A

Description: EKG cable for Schiller, IEC, DB15M> Banana 4.0

Schiller Compatible Direct-Connect EKG Cable

Crafted from medical - grade durable materials, the cable features a flexible and wear - resistant outer sheath. It can withstand high - frequency plugging, unplugging, and movement in medical institutions, thereby extending its service life. Meanwhile, the connectors undergo precision processing, ensuring tight contact and excellent oxidation resistance. This effectively prevents signal loss or distortion caused by poor contact, helping medical staff efficiently complete routine physical examinations, disease diagnosis, and dynamic cardiac monitoring. It is truly a reliable companion for Schiller EKG devices.

learn more

Products Parameters

Category	EKG

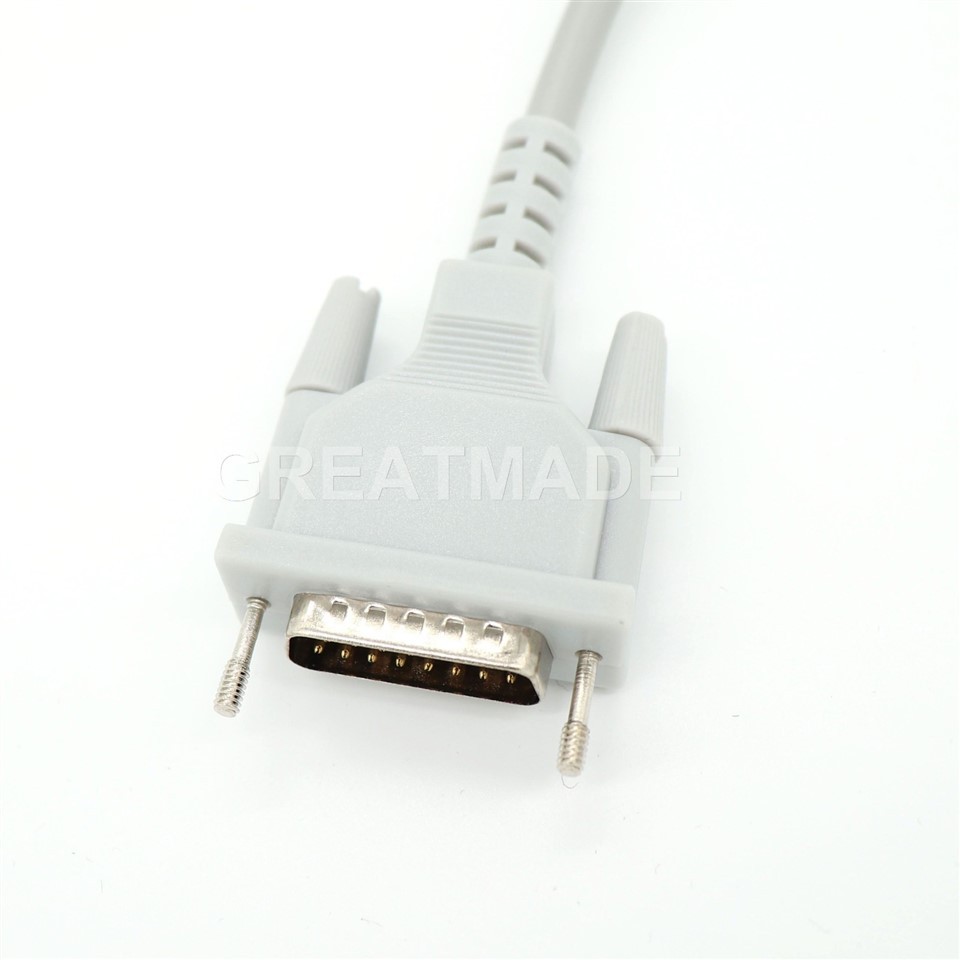

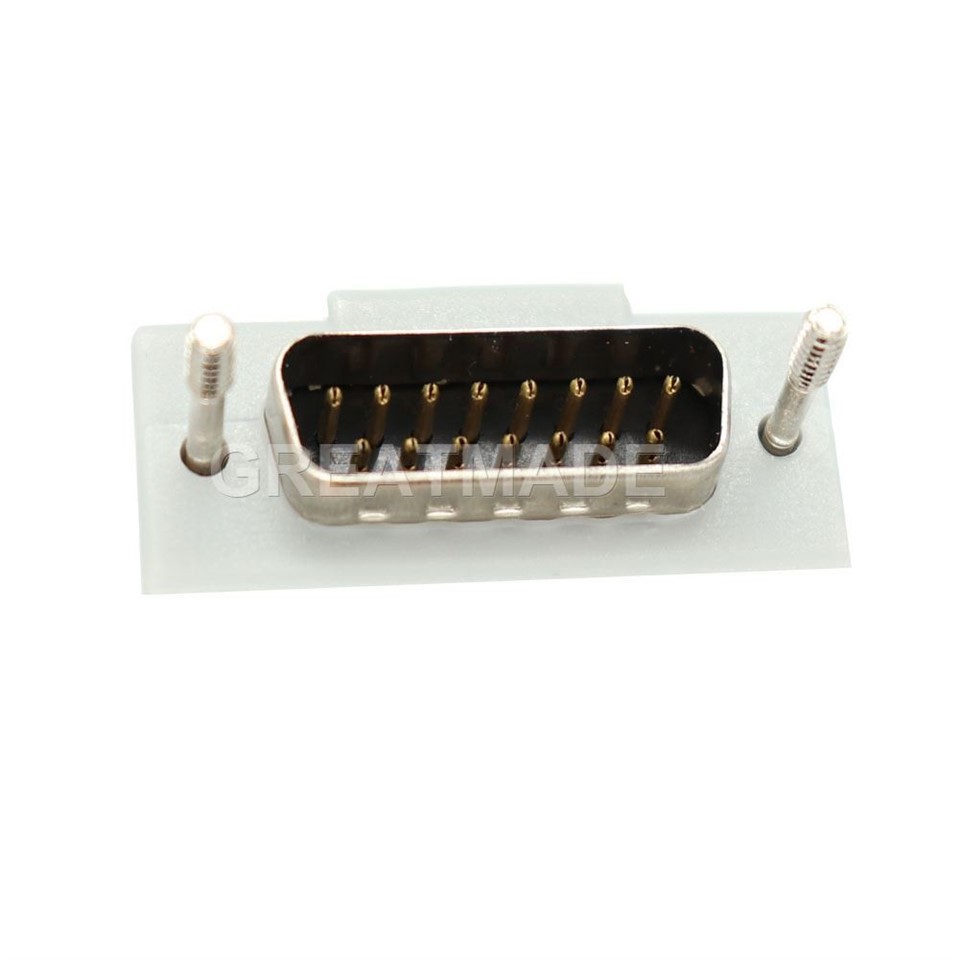

Connector Distal	DB15 Connector with Screws
Connector Proximal	Banana 4.0
Standard Compliance	IEC
Latex-free	Yes
Lead cable color	Gray
Cable Diameter (Trunk cable)	6.0mm
Cable Diameter (leadwires)	3.25mm
Trunk cable length	2M
Lead cable length Limb	1.2M
Lead cable Length Suction	0.8M
Material	TPU jacket
Lead Number	10
Patient Size	Adult/ Pediatric
Resistance	10K Ohms

Compatibility:

Manufacturer	Model
Cardiette	AR1200 adv
Futuremed	All
Esaote	50, Biosound MyLab 30 CD, Biosound MyLab 30 CV, MyLab 30 Vet, P80 Series 40893
Schiller	AT1, AT2, AT2 Light, AT2 Plus, AT4, CS200, FT-10

Product Feature and Application

Feature

Precise Signal Transmission: Ensures accurate capture and transmission of cardiac electrical signals, facilitating reliable ECG readings.
Durable Construction: Made from robust materials to withstand frequent use in medical environments, offering long-term reliability.

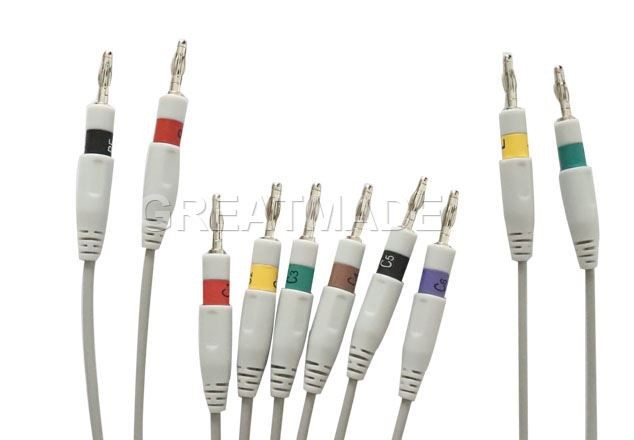

Easy Identification: Color-coded Banana 4.0 plugs aid in quick and correct electrode connection, saving time during procedures.
Seamless Compatibility: Perfectly matches Schiller EKG machines for hassle-free integration.

Application

Ideal for use in hospitals, clinics, and other healthcare facilities for routine cardiac check-ups, diagnostic tests, and continuous cardiac monitoring of patients.

Deliver, Shipping and Serving

Delivery Time: Typically 3 - 5 business days for in-stock items; custom orders may take [specify time, e.g., 7 - 10 business days].
Shipping Options: Available via express carriers (DHL, FedEx, UPS) for fast international delivery, with tracking provided.
Serving: We offer comprehensive after-sales service, including technical support for installation and troubleshooting. Warranty is provided 6 months warranty period against manufacturing defects.


FAQ

Q1: Is this cable compatible with non-Schiller EKG devices?
A1: It is primarily designed for Schiller EKG machines. It may work with some non-Schiller devices that have matching connectors (DB15M input, Banana 4.0 output) and meet IEC standards, but full compatibility and performance cannot be guaranteed. We recommend confirming with our customer service before use with other brands.

Q2: How to clean and maintain the cable?
A2: Wipe the cable and connectors with a soft damp cloth (or mild medical detergent if needed); avoid harsh chemicals. Store it loosely in a dry, dust-free place, and avoid sharp bends or pulls during use.

Q3: What if the cable is damaged during shipping?
A3: Take photos of the damaged cable and packaging, contact our customer service within 48 hours of delivery with your order number. We will verify and arrange a free replacement or full refund per our policy.

Q4: Does the cable have a warranty?
A4: Yes, it has a 6-month limited warranty covering material and manufacturing defects. It does not cover damage from improper use, modifications, or normal wear. Contact us for warranty issues.

Q5: Can the cable length be customized?
A5: Yes, custom lengths are available for bulk orders (minimum quantity required). Contact our sales team with your desired length and order details for a quote and production schedule.
