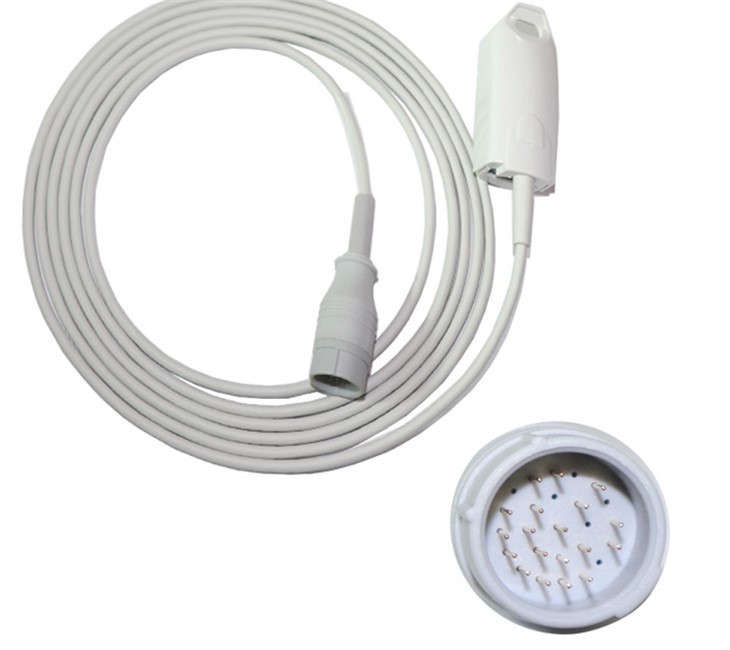

Compatible Direct-Connect SpO2 Sensor - 2054
Compatibility:
| Manufacturer | Model |
|---|---|
| Masimo |
Rad-5, Rad-57, Rad-5v, Rad-8, Rad-87, Radical-7 |
| Riester |
RVS 100 |
| Stryker > Medtronic > Physio Control |
Lifepak 15 |
| Welch Allyn |
73MT-B, 74ME-B, 74MX-B, 75 MT-B Connex Spot, 75ME-B |
| Zoll |
X Series |
Technical Specifications:
| Cable Color | Gray |
|---|---|
| Cable Diameter | 4 mm |
| Category | SpO2 |
| Connector | Red, 20-pin connector |
| Connector | Adult Clip |
| Latex-free | Yes |
| Packaging Type | Bag |
| Packaging Unit | 1 |
| Patient Size | Adult (>40Kg) |
| SpO2 Technology | MS |
| Sterile | No |
| Total Cable Length | 3m |
| Warranty | 12 months |
Reminder:
when you select the Spo2 sensor, please check carefully the below points:
1. If the Spo2 sensor connector is really compatible to your patient monitor socket,such as 8pin or 9pin.
2. If there's different spo2 moudle for one same type patient monitor, such as the popular spo2 moudle like nellcor, massimo, and so on.
3. If the sensor is used for the right people? such as for adult or neonate.
4. When you select the short cable spo2 sensor,please check if you have the adapter cable in hand,if you have not,you can select it in our store. They need connecting together to work.
5. If you have special purpose, please let me know,we will try to offer you the professional service and instruction.
【Key technical parameter】
Range of pulse rate(30～245)bpm:±3bpm.
90%-100%SpO2:±2digits;
Range of wavelength for LED of red light:660nm(±3nm).
Range of wavelength for LED of infrared light:905nm(±3nm).
【Working environment】
Operation temperature:+5℃～+40℃
Storage/transportation temperature:-20℃-+70℃
Humidity:10%～80%(no condensation)
Atmospheric pressure:86kPa～106kPa
Our Main Products:
1. Reusable/Disposable Spo2 Sensor
2. Spo2 extension cable
3. ECG trunk cable &leadwire
4. EKG Cable&Accessories
5. ECG electrodes
6. EEG Leadwires with electrodes
7. IBP Cable/Disposable IBP transducer
8. Water trap
9. NIBP cuff/hose/connecor
10. Temperature Probe
11. Medical battery and O2 cell
12. TOCO and US transducer
After-sale services
1. In-Warranty Period: we will give the replacement for all quality problems in time under normal conditions of use.
2. If the new items can not work with your devices, we will send new replacement or refund in time.
FAQ
What is a SpO2 sensor?
If you've been hunting for a new smartwatch, you've probably come across the terms SpO2 sensors, pulse ox, or blood oxygen levels. SpO2 sensors measure your blood oxygen saturation — or, put more simply, the amount of oxygen you have in your blood.
What is the normal SpO2 level?
A normal level of oxygen is usually 95% or higher. Some people with chronic lung disease or sleep apnea can have normal levels around 90%. The “SpO2” reading on a pulse oximeter shows the percentage of oxygen in someone's blood. If your home SpO2 reading is lower than 95%, call your health care provider.
How SpO2 is measured?
A pulse oximeter can measure oxygen saturation. It is a noninvasive device placed over a person's finger. It measures light wavelengths to determine the ratio of the current levels of oxygenated hemoglobin to deoxygenated hemoglobin. The use of pulse oximetry has become a standard of care in medicine.
Why is sp02 important?
A normal SpO2 level is vital to maintaining the health of all tissue in the body. As previously mentioned, hypoxemia is low oxygen saturation in the blood. Hypoxemia is directly related to hypoxia, which is low oxygen saturation in the body's tissue.
