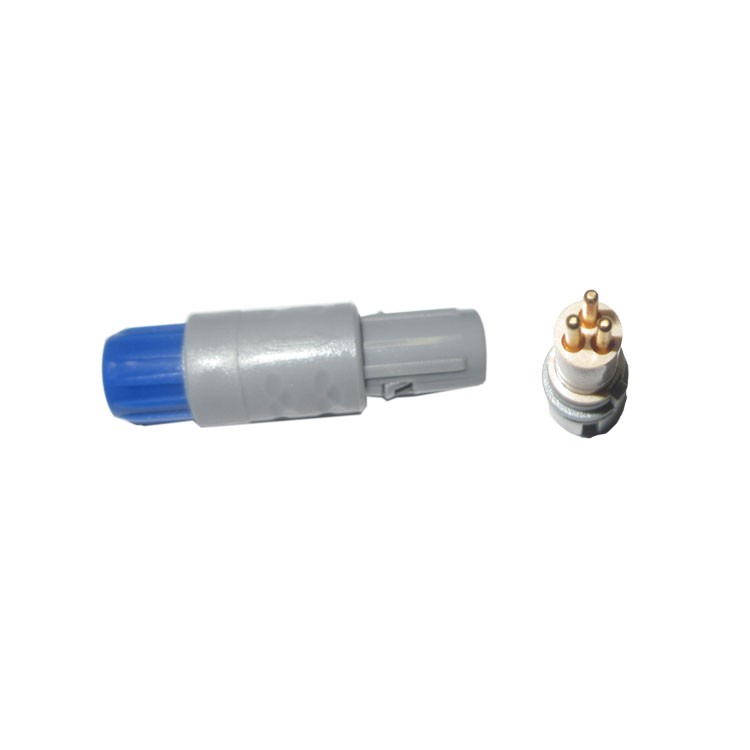

Plastic Connector PAG 2-10pin 14pin 1P Two Keying 80 Degree Push-Pull Circular Straight Plug With Backnut
Plastic Connector PAG 2-10pin 14pin 1P Two Keying 80 Degree Push-Pull Circular Straight Plug With Backnut
Plastic Connector PAG 2-10pin 14pin 1P Two Keying 80 Degree Push-Pull Circular Straight Plug With Backnut
Plastic Connector PAG 2-10pin 14pin 1P Two Keying 80 Degree Push-Pull Circular Straight Plug With Backnut
Plastic Connector PAG 2-10pin 14pin 1P Two Keying 80 Degree Push-Pull Circular Straight Plug With Backnut
Plastic Connector PAG 2-10pin 14pin 1P Two Keying 80 Degree Push-Pull Circular Straight Plug With Backnut
Plastic Connector PAG 2-10pin 14pin 1P Two Keying 80 Degree Push-Pull Circular Straight Plug With Backnut
Plastic Connector PAG 2-10pin 14pin 1P Two Keying 80 Degree Push-Pull Circular Straight Plug With Backnut
1/6
Plastic Connector PAG 2-10pin 14pin 1P Two Keying 80 Degree Push-Pull Circular Straight Plug With Backnut
PAG.M0.2GL.AC39A Straight plug with cable collet and alignment key (G) 80 Degree, multipole type with 2 male contacts to solder, grey
PSU outershell, PEEK insulator, collet for a cable ø 2.7 to 3.9 mm and blue collet nut.
PAG.M0.2GL.AC52A Straight plug with cable collet and alignment key (G) 80 Degree , multipole type with 2 male contacts to solder, grey
PSU outershell, PEEK insulator, collet for a cable ø 4.0 to 5.2 mm and blue collet nut.
PAG.M0.2GL.AC65A Straight plug with cable collet and alignment key (G) 80 Degree , multipole type with 2 male contacts to solder, grey
PSU outershell, PEEK insulator, collet for a cable ø 5.3 to 6.5 mm and blue collet nut.
Product Introduction
1P Series
A well proven connector of a small size to accomodate cable diameter up to 6.5 mm and allow up to 14 solder contacts. Top quality lightweight and rugged materials have been chosen to optimize most applications. Poly sul fone (PSU), UL certified as auto extinguishable, can be sterilized by gas or by steam. The contacts are gold-plated over copper and nickel to ensure at least 2000 mating/ unmating cycles without significantly affecting the electrical characteristics. A keying system combined with colour coding can be incor porated on most connector models to assist in the prevention of mismating. Colour coding of the plug collet nut and socket flange will give an instant visual indication of connector compatibility
