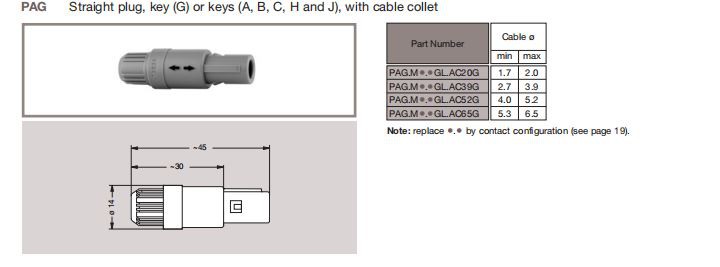

1P Series
A well-proven connector of a small size to accommodate cable diameters up to 6.5 mm and allow up to 14 solder contacts. Top quality lightweight and rugged materials have been chosen to optimize most applications. Poly sulfone (PSU), UL certified as auto extinguishable, can be sterilized by gas or by steam. The contacts are gold-plated over copper and nickel to ensure at least 2000 mating/ unmating cycles without significantly affecting the electrical characteristics. A keying system combined with color coding can be incorporated on most connector models to assist in the prevention of mismating. Color coding of the plug collet nut and socket flange will give an instant visual indication of connector compatibility
Series P Plastic connector with the following main features:
1) Lightweight and rugged materials, rapid push-pull locking system.
2) Small size to accommodate cable diameter up to 6.5 mm and allow up to 14 solder contacts.
3) The contacts are gold-plated over copper and nickel,
4) Straight and Elbow; CB and Solder contacts
5) At least 5000 mating/ unmating cycles without significantly affecting the electrical characteristics
6) Several keys and different nut /bend relief colors are optional.
Industry Application:
It has 2,3,4,5,6,7,8,9,10,14Pins for your choice.
The Push-Pull Self-locking of high-quality medical connectors can be widely used in Medical ECG equipment, Detection Systems, Test Systems, Instrumentation, Endoscopy, Computer Systems, Electronic / Mixed Coaxial Unlimited Equipment Breathing Machines, Anesthesia Machine,
Monitors, Blood Pressure Monitors, Ultrasound, Infrared Treatment, Electrophysiological, CT, High-Frequency Electric Knife, Endoscopes, Defibrillators, Scaler, Electric Shock Generator, Nuclear Magnetic Resonance and so on.
