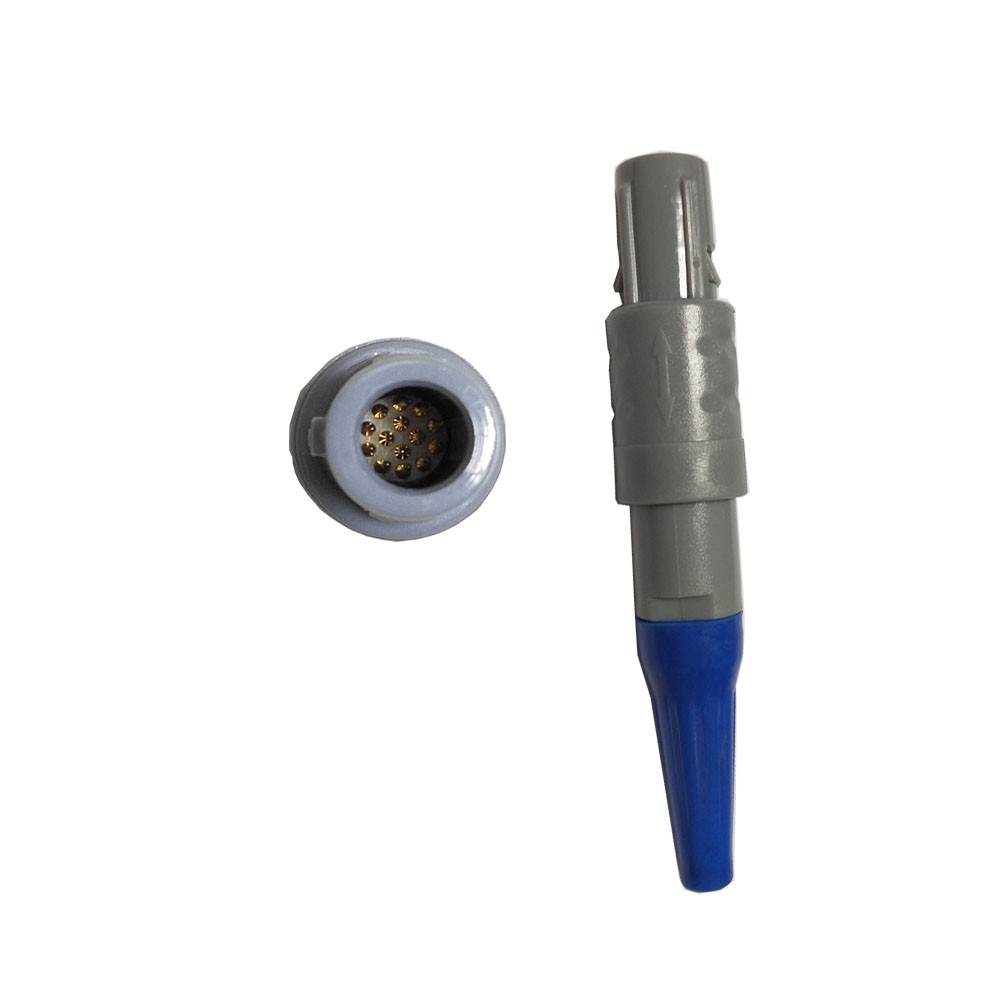

Model Number:P series plastic connector
Type:Push pull, 1P
Application:medical/audio/video/instrumentation
Pins:1-10pin 14pin
Degree of protection:IP50
Out shell:plastic
Latch Sleeve:Plasic
PIN:Brass,gold plated
Insulator:PPS
Collect Nut:Brass,Chrome plated
Insulator Carrier:Brass,Nickel plated
withstand voltage:500V AC
Envitonment:Indoor
1P Series
A well proven connector of a small size to accomodate cable diameter up to 6.5 mm and allow up to 14 solder contacts. Top quality lightweight and rugged materials have been chosen to optimize most applications. Poly sul fone (PSU), UL certified as auto extinguishable, can be sterilized by gas or by steam. The contacts are gold-plated over copper and nickel to ensure at least 2000 mating/ unmating cycles without significantly affecting the electrical characteristics. A keying system combined with colour coding can be incor porated on most connector models to assist in the prevention of mismating. Colour coding of the plug collet nut and socket flange will give an instant visual indication of connector compatibility
