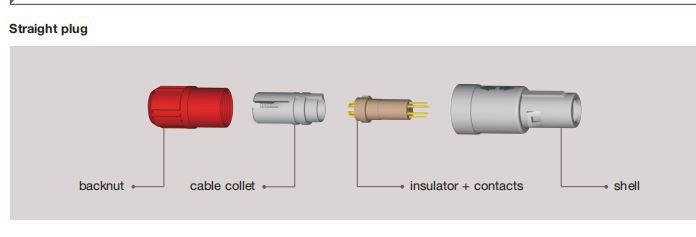

PAG.M0.2GL.AC39A Straight plug with cable collet and alignment key (G), multipole type with 2 male contacts to solder, grey PSU outershell, PEEK insulator, collet for a cable ø 2.7 to 3.9 mm and blue collet nut. PKG.M0.2GL.LA Fixed socket with two nuts and alignment key (G), multipole type with 2 female contacts to solder, grey PSU outershell, PEEK insulator, and blue plastic front nut. PAA.M0.2GL.LA Straight plug with cable collet and alignment two key (G) 30 Degree, multipole type with 2 male contacts to solder, grey PSU outershell, PEEK insulator, and blue collet nut. PKA.M0.2GL.LA Fixed socket with two nuts and alignment two key (G) 30 Degree, multipole type with 2 female contacts to solder, grey PSU outershell, PEEK insulator, and blue plastic front nut. PAB.M0.2GL.LA Straight plug with cable collet and alignment two key (G) 60 Degree, multipole type with 2 male contacts to solder, grey PSU outershell, PEEK insulator and blue collet nut. PKB.M0.2GL.LA Fixed socket with two nuts and alignment two key (G) 60 Degree, multipole type with 2 female contacts to solder, grey PSU outershell, PEEK insulator, and blue plastic front nut. PAC.M0.2GL.LA Straight plug with cable collet and alignment two key (G) 80 Degree, multipole type with 2 male contacts to solder, grey PSU outershell, PEEK insulator,and blue collet nut. PKC.M0.2GL.LA Fixed socket with two nuts and alignment two key (G) 80 Degree, multipole type with 2 female contacts to solder, grey PSU outershell, PEEK insulator, and blue plastic front nut.

Product Introduction

1P Connector (Plug and Socket ) we have in stock .

1. Connector Part Number : PAG/PKG, PAA/PKA, PAB/PKB, PAC/PKC

2.Connector pins number : 2 pins , 3 pins, 4 pins, 5 pins , 6 pins,

7pins, 8pins, 9pins, 10pins, 12pins, 14pins

3.Keying number : 1 pcs (Degree 0) , 2 pcs (Degree 40 , 60 . 80)

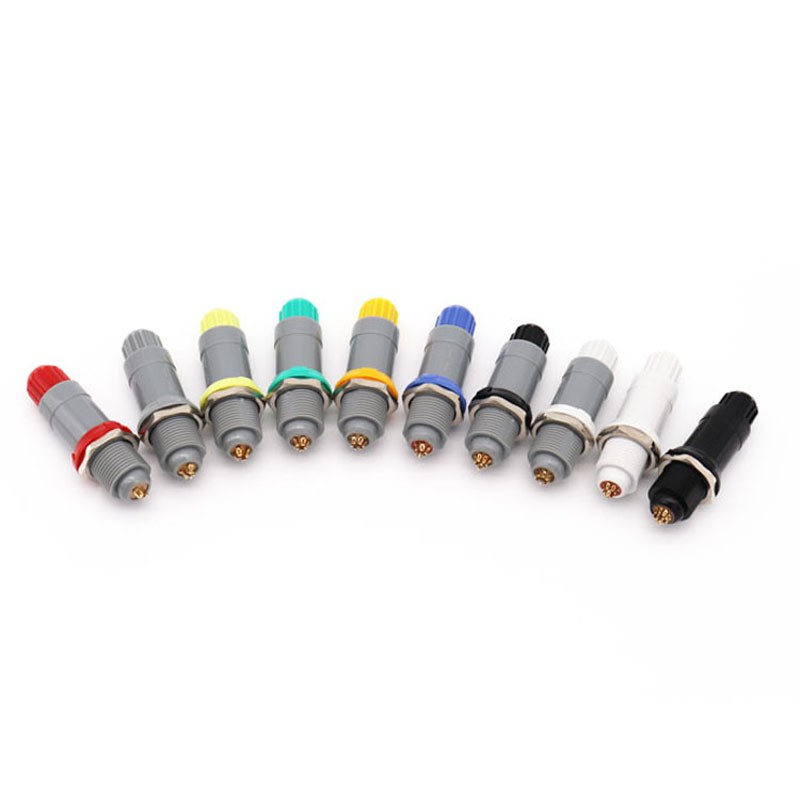

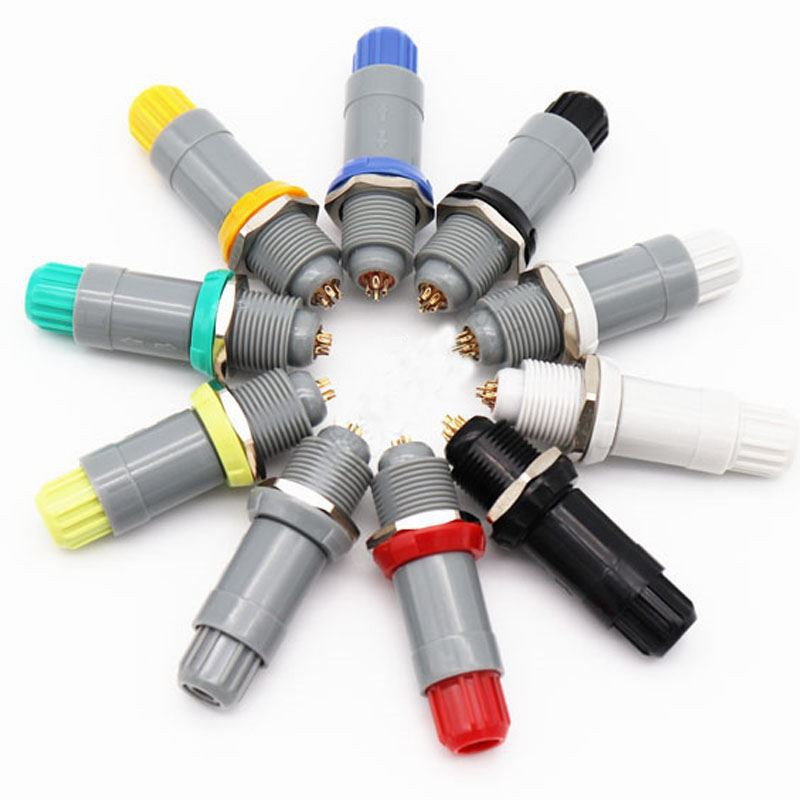

4.Colors : Black , Red ,Grey , Green , Blue, Yellow,Orange ,White ,All White ,All Black

if you have any questions,pls conatct us at any time

The modular design of the REDEL range provides over 5’000 connectors from ø 14 mm to ø 21 mm, capable of handling cable diameters up to 9.5 mm and up to 32 contacts.

This vast portfolio enables you to select the ideal connector configuration to suit almost any specific requirement in most markets, including medical devices, test and measurement instruments, machinery, audio video broadcast, telecommunications and military.

This self-latching system is renowned worldwide for its easy and quick mating and unmating features. It provides absolute security against vibration, shock or pull on the cable, and facilitates operation in a very limited space.

1.The REDEL connectors are plastic Push-Pull connectors. These circular plastic connectors are especially adapted for applications such as medical electronics and test & measurement. REDEL offers a wide choice of connectors with various contact configurations: multipole contacts, coaxial, fibre optics and fluidic connectors. In addition, a range of one time use connectors and connectors for mains power is available. The REDEL connectors are available in 3 sizes, depending on the cable diameter.

2.● Medical electronics ● Test and measurement ● Industrial electronics ● Automotive ● Aesthetically pleasing design ● Lightweight ● Plastic shell made of PSU or PEI ● Extensive sterilisation (over 100 cycles) ● Excellent electrical safety (touch & scoop proof) ● Wide choice of colours for easy identification (grey, blue, yellow, black, red, green and white) ● Large choice of keying to avoid cross mating ● Various contact types: solder, crimp, print and elbow print 90º ● Disposable mode.
