Metal 1B 14 Pin Straight Plug

1B 14pin straight plug, outer shell in chrome-plated brass, PEEK insulator, male solder contacts, D type collet for 5.2-6.2 mm diameter cable and nut for fitting a bend relief.

Description: 14 Position Circular Connector Plug, Male Pins Solder Cup

OEM part no.: FGG.1B.314.CLAD62Z



The Metal 1B 14-pin Straight Plug meets rigorous industry standards, especially in healthcare. Crafted from premium biocompatible materials, its compact, ergonomic design ensures seamless integration into medical devices, minimizing interference via precise dimensions and smooth surfaces.
Electronically, it delivers stable, accurate performance across wide voltage/current ranges, critical for reliable data transmission in patient monitors (e.g., heart rate, SpO2). Resistant to temperature, humidity, and electromagnetic interference, it maintains signal integrity in busy hospital environments, reducing malfunctions.
Fully compliant with medical regulations, each unit undergoes strict testing and is traceable for safety, ensuring trust in critical applications.

Fixed Socket for JH-TGG.1B.314.CLAD62Z (OEM PN. LEMO FGG.1B.314.CLAD62Z)

Model: JH-ZGG.1B.314.CLL (OEM part no. EGG.1B.314.CLL)

Features: It is used in conjunction with the FGG.1B.314.CLAD62Z plug. It is a 14-pin fixed socket with a chrome-plated brass housing and a PEEK insulator. It adopts welded female contacts and is fixed by nuts. It comes with a G-type key to prevent incorrect insertion and is suitable for a variety of devices that require stable electrical connections.

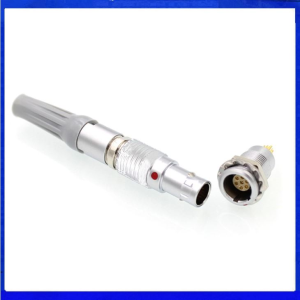

 Other Models of Compatible LEMO 1B Series Connectors

Models: Such as JH-TGG.1B.308.CLAD62Z, JH-TGG.1B.320.CLAD62Z, etc.

Features: They belong to the 1B series and share similar design concepts and basic performance, such as the push-pull locking system, chrome-plated brass housing, and PEEK insulator. However, they differ in the number of pins, dimensions, etc., and can meet the diverse needs of different devices for connectors.

Customized Products

Models: Customized derivatives of JH-TGG.1B.314.CLAD62Z based on customer requirements.

Features: Customization can be carried out in aspects such as the number of pins, key positions, housing color, and electrical performance to meet the personalized needs of specific users in special application scenarios. They are suitable for projects with unique requirements for connectors, such as the aerospace.

• This connector excels in high-reliability applications across medical, industrial, aerospace, and test sectors. In medical devices, its biocompatible PEEK insulator and shielded brass shell safeguard safety and signal quality. For industrial use, it withstands moisture, vibration, and EMI in automation systems. In aviation, its rugged build meets strict environmental standards. Ideal for test instruments, it ensures stable power and signal transfer.
  With a D-type collet for 5.2–6.2 mm cables and a bend relief nut, it resists mechanical stress. Solder contacts guarantee dependable electrical connections for permanent and semi-permanent setups.

Q: Is the JH-TGG.1B.314.CLAD62Z safe for use in direct contact with patients?
A: Yes, it is constructed with biocompatible materials and has been tested to meet the strict safety requirements for medical applications, ensuring it is safe for use in proximity to patients.

Q: What is the expected lifespan of the JH-TGG.1B.314.CLAD62Z in a medical device?
A: The lifespan depends on various factors such as the frequency of use and the specific operating conditions. However, under normal medical device usage, it is designed to have a long and reliable service life, typically exceeding [X] hours of continuous operation.

Q: Can the JH-TGG.1B.314.CLAD62Z be sterilized?
A: It is compatible with most common sterilization methods used in the medical industry, such as autoclaving, ethylene oxide sterilization, and gamma irradiation. However, it is recommended to follow the specific sterilization guidelines provided to ensure the integrity of the component.

Q: How does the JH-TGG.1B.314.CLAD62Z contribute to the accuracy of medical measurements?
A: Its stable electrical performance and precise design minimize signal distortion and interference, allowing for accurate transmission and processing of data from medical sensors. This, in turn, leads to more precise medical measurements and diagnoses.

We are Greatmade company, a renowned manufacturer in the medical accessories industry. Our comprehensive range of products is designed to meet the diverse needs of the healthcare sector.

Our offerings include:
Spo2 Sensor (Probe) and Kits
ECG and EKG Cables
NIBP Cuff and Accessories
Temperature Probes
IBP Cables and Disposable Transducers
Connectors: An assortment of connectors such as plastic pull-push self-latching circular connectors, including straight pull-push plastic plugs (both standard and with bent relief), fixed straight sockets, free sockets, elbow sockets, and fluidic and gas male and female connectors, facilitating easy and secure connections in medical equipment setups.
