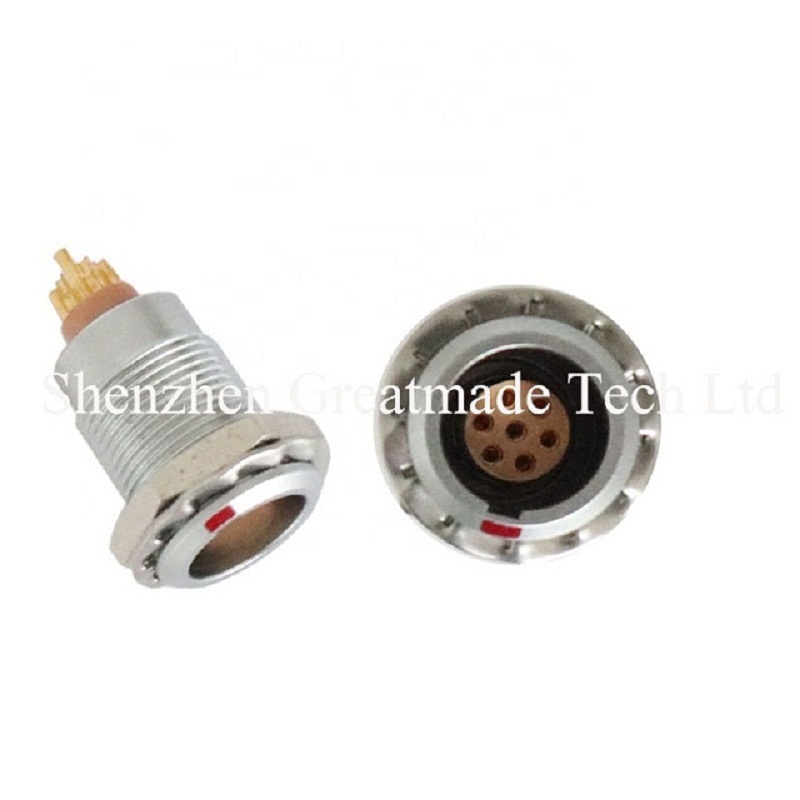

Quick Details

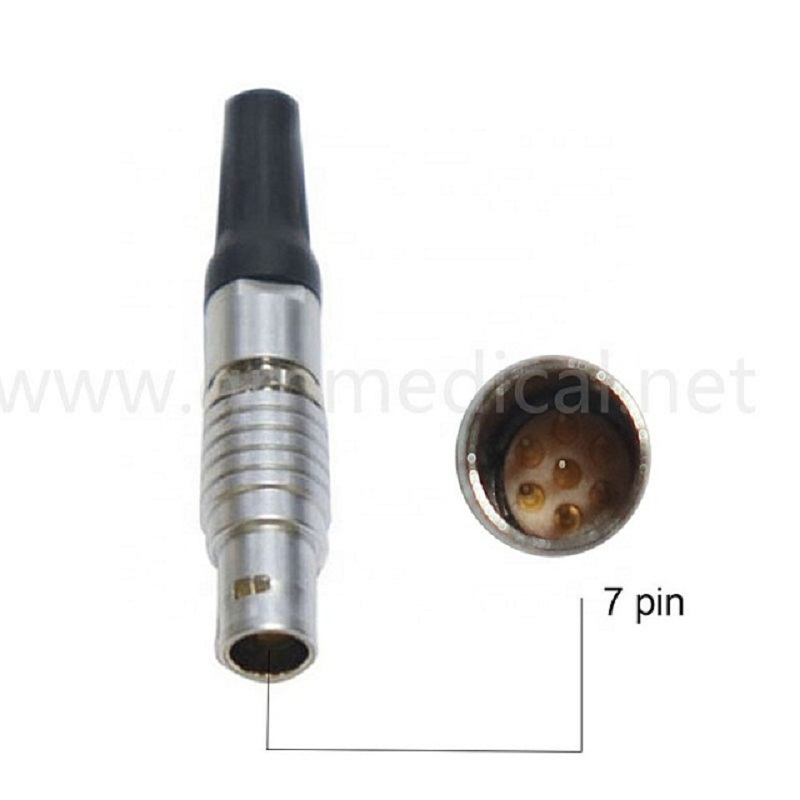

Place of Origin: Guangdong, China (Mainland) Brand Name: Greatmade
Model Number: EGG FGG.0B.307.CLAD52Z Gender: Female/Male, Female and Male
Application: Automotive, Lighting, Electrical Connector Pin: 7pin
Housing Materia: Brass Contact Treatmen: Plated gold
Surface Treatment: Pearl Chrome Endurance: Above 5000 times push-pull
Insulator Material: PPS IP Degree: IP50
Supply Ability
Supply Ability: 50000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details 1 PCS connector in a PE bag,
50-100 PCS connectors in a small box/cartoon
Port shenzhen
Lead Time :
| Quantity(Pieces) | 1 - 200 | 201 - 500 | >500 |
| Est. Time(days) | 5 | 7 | To be negotiated |
Product Description

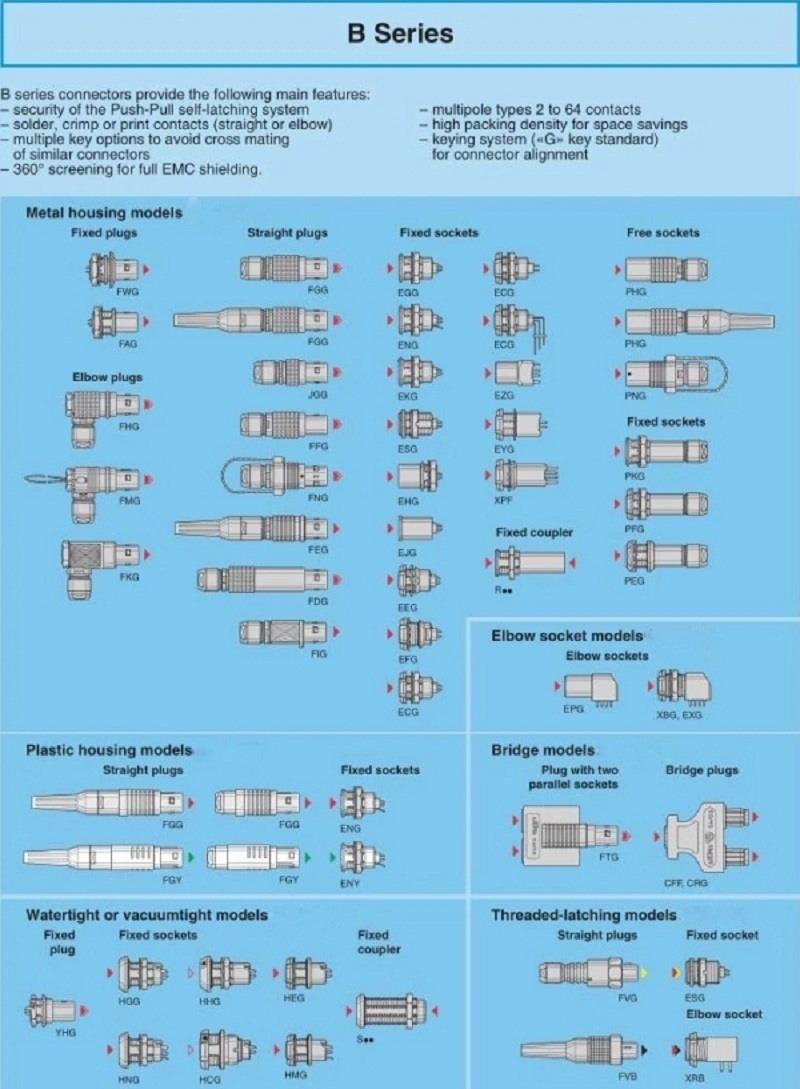

B series connectors provide the following main features:
1.Security of the Push-Pull self-latching system.

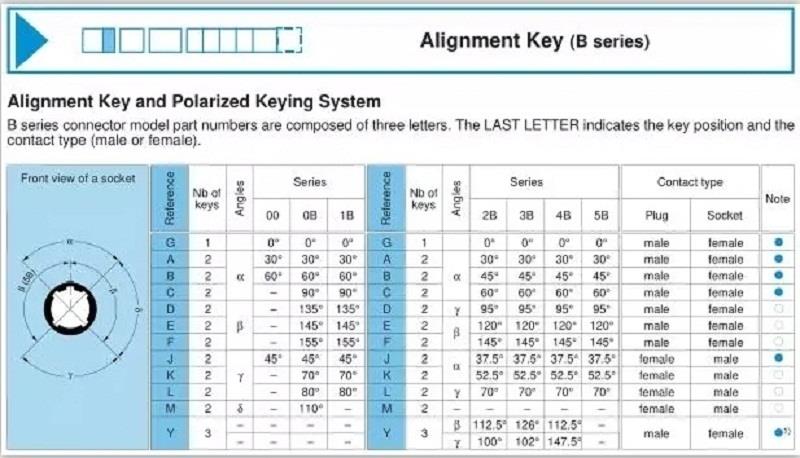

2.Multiple key(alpha=0/30/45/60).
3.Multipole types 2 to 26 contacts.
4.Solder, PCB contacts (straight or elbow).
5.keying system («G» key standard)of similar connectors for connector alignment.
6.360° screening for full EMC shielding.
7.High packing density for space savings.
Product Parameters
| Number | FGG.0B.307.CLAD52Z EGG.0B.307.CLL |
| Size/Series | 0B |
| Shell Style/Model | Straight plug,cable collet Fixed receptacle, nut fixing |
| Keying | 1 key (alpha=0, plug: male contacts, receptacle: female contacts) |
| Housing Material | Brass (chrome plated) shell and collet nut, nickel plated brass latch sleeve and mid pieces |
| Configuration | Brass (gold plated) |
| Insulator | PPS |
| Contact Type | Solder |
| Endurance (Shell) | 5000 mating cycles |
| Temp (min) | -40 deg |
| Temp (max) | 200 deg C |
| Humidity (max) | <=95% [at 60 deg C / 140 F] |
| Vibration | 15 g [10 Hz - 2000 Hz] |
| Shock Resistance | 100 g [ 6 ms] |
| Salt Spray Corrosion | >144 hr |
| IP Rating | IP50 |
Insulator specs for B series:

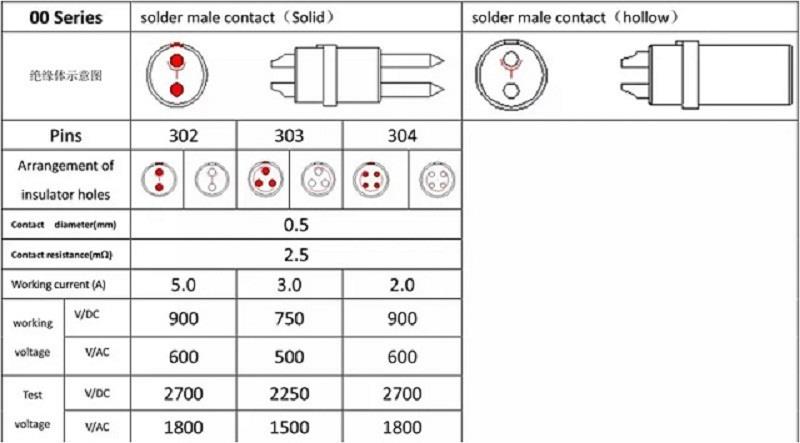

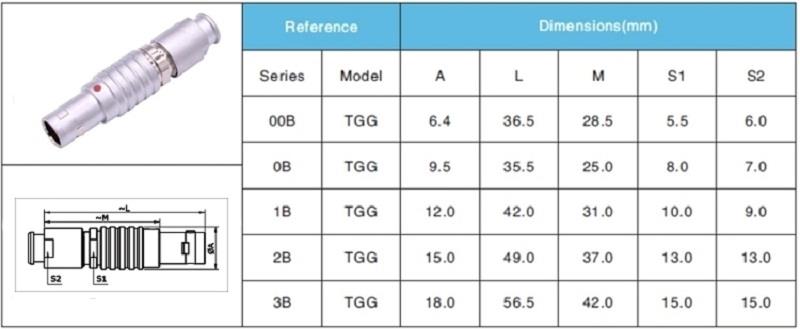

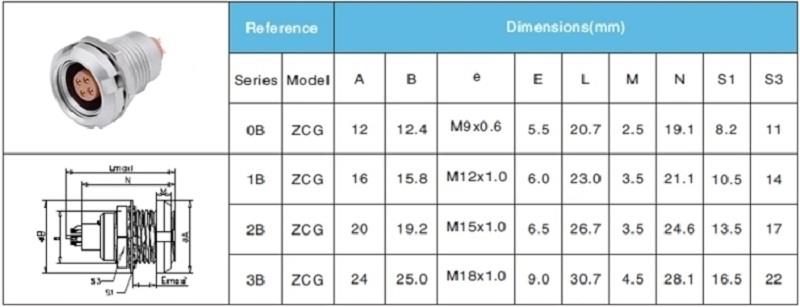

Prodcut Size:
Product characteristics
1. This self-latching system is renowned worldwide for its easy and quick mating and unmating features. It provides absolute security against vibration, shock or pull on the cable, and facilitates operation in a very limited space
2. Security of the Push-Pull self-latching system. Quickly insert and pull out, it is very convenient to use.
3. Multiple key options to avoid cross mating of similar connectors , effectively prevent incorrect insertion.
5.Made of metal, high quality and durable.
6.About bend relief: we have a wide range of colors to choose from, can effectively prevent mis-insertion
7. B series belongs to the standard keyed Series, Ingress protection is IP50, suitable for indoor use.
8. K series belongs to the watertight keyed Series, Ingress protection is IP 66 to IP68, suitable for outdoor use.

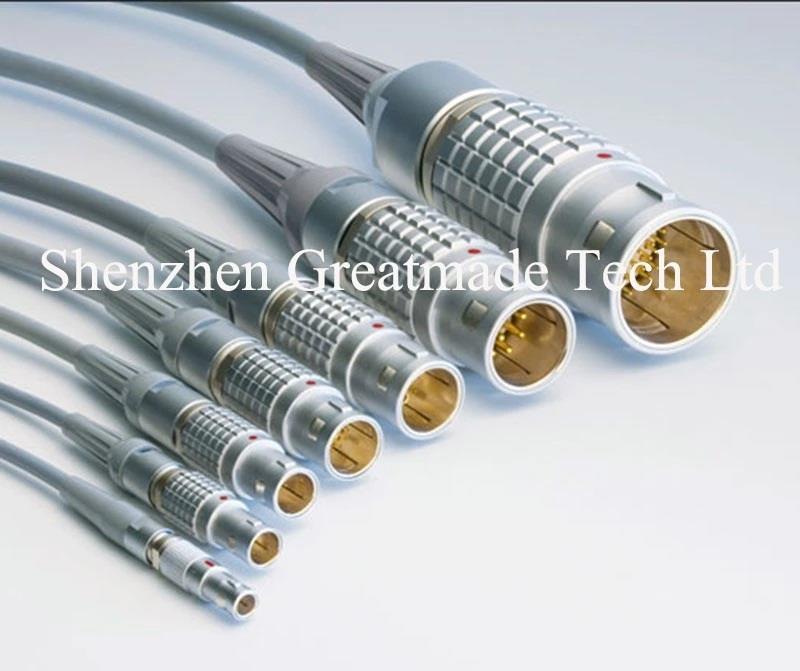

Sizes and contacts
Customization services, you can choose the series (size) you need and the number of contacts you want.
We have different sizes: 00B, 0B, 1B , 2B and 3B etc. (Just means sizes)
There are many kinds of contacts in each series.
You can order from us according to your requirements.

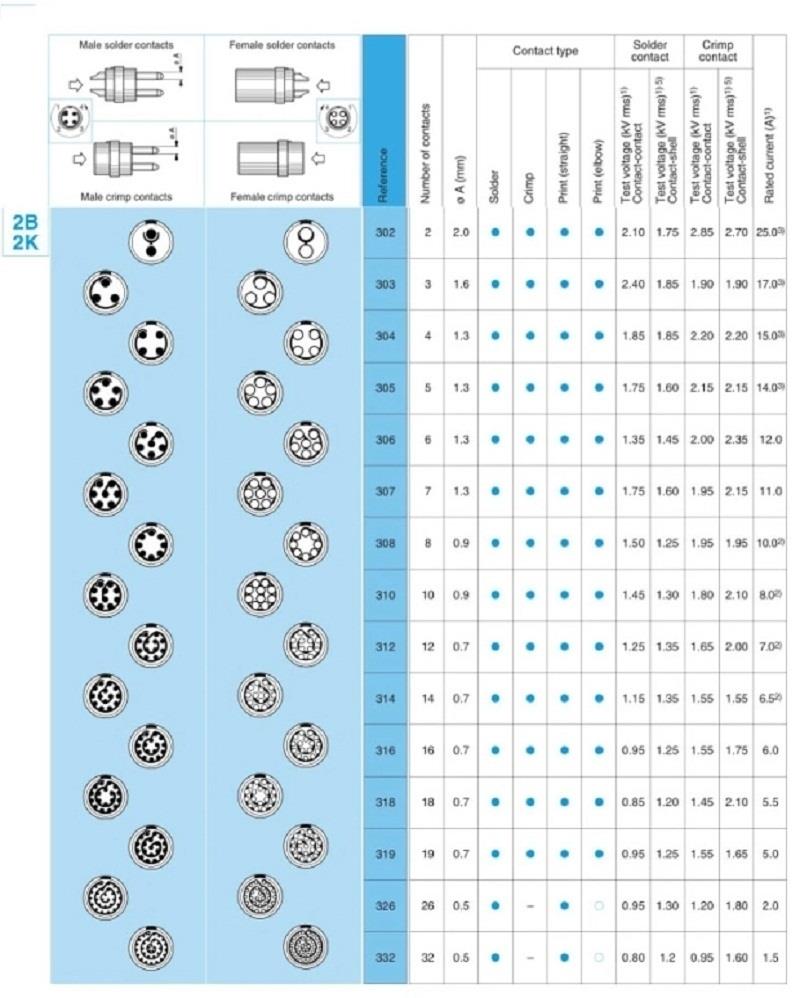

Different Series Connector Pins Number :
1. 00B Series:2 pins , 3 pins, 4 pins ,5 pins
2.0B Series:2 pins , 3 pins, 4 pins ,5 pins , 6 pins, 7 pins ,9 pins
3.1B Series:2 pins , 3 pins, 4 pins ,5 pins , 6 pins, 7 pins ,8 pins, 10 pins ,12 pins , 14 pins, 16 pins
4.2B Series:2 pins , 3 pins, 4 pins ,5 pins , 6 pins, 7 pins ,8 pins, 10 pins ,12 pins , 14 pins, 16 pins , 18 pins, 19 pins
5. 3B Series:3 pins, 4 pins , 7 pins ,8 pins, 10 pins ,12 pins , 14 pins, 16 pins , 18 pins, 20 pins , 24 pins, 26 pins , 30 pins

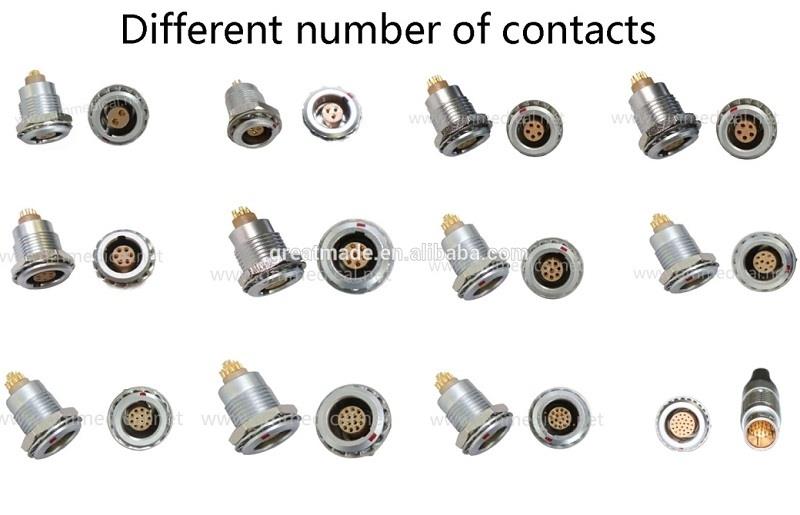

Multipole
Contact type
Soldering characteristics
– no need to order specific tools, a simple soldering iron is sufficient
– ideal for very small and fragile conductors
– contacts with solder cups to allow the solder to flow

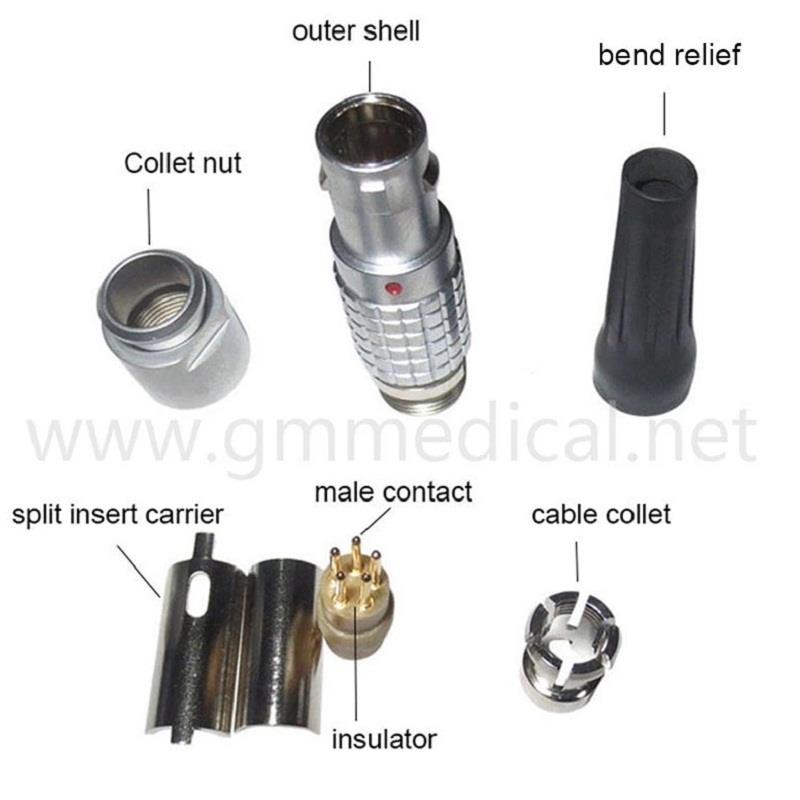

Internal structure
We have " with bend relief " and " without bend relief " styles ,normally we will sent " with bend relief ",
if you want " without bend relief " style,pls tell us.
Scope of Application
Usage: beauty equipment; medical devices; various high-end test equipment; micro drones; detection equipment; video equipment; visual equipment; military communication equipment, mobile equipment, etc. are widely used
All products of metal connectors
Company Information
Shenzhen Greatmade Tech LTD is a prefessional manufacturer of medical cable ,
Which is widely use with multi-parameter patient monitor , pulse oximeter, EKG device,
Blood pressure montior , electrosurgical unit.
We have 10 years experience in this field .
We have our own factory in Shenzhen China Mainland , and have complete manufacturing device and test device.We also build professional Research and Development team to satisfy various Market need Our superior quality , advantageous price and thoughtful service have wined our National and international customers' permanent support .
Our Competition advantage is below :
1.Various products for wide selection .
2. All product procedures are fininshed in our own factory .
3.Ex-factory competitive price
4. Professional Research and Development ability .
5.Quality control during the procedure and finished products.
6. Flexible products price and delivery
7. Thoughtful customer service during the sale and after sale .
(5)Certification : ISO13485 ,CE and FDA
Q1: Are you trading company or manufacturer ?
A: We are the manufacture.
Q2: How long is your delivery time?
A: It is 15 days after payment successful.
Q3: Do you provide samples ? is it free or extra ?
A: Yes,we provide samples for free,but you will pay for the shipping fee.
Q4: What is your terms of payment ?
A: If the payment<=$1000, 100% in advance.
Payment>=$1000, we accept 50% T/T in advance.
Q5:Does your product have any warranty?
A: Yes, all of our connectors can work normally after 5000 cycles mating, Our factory has instruments to tested them before shipping. Damage due to misuse, treatment and unauthorized modifications and repairs are not covered by our warranty.
Q6:What's your advantage? Why we choose you?
A:1)Many years experience of waterproof connectors production and R&D.We have the most professional techniques and team.
2)Great production capacity Sustainable Supply . According to customer requirements, We support the customized include package.
3)We use 100% new materials and the best production process .
