Overview
Quick Details
Place of Origin:Guangdong, China (Mainland) Brand Name: Greatmade
Model Number:FGG.00B.304CLAD42Z Type:circular push pull
Application:Automotive Gender:Female/Male, Male and Female
Material:Metal Pin:4pin
Housing Material:Brass Contact Type: Solder
Contact Treatmen:Plated gold Endurance:Above 5000 times push-pull
Surface Treatment:Pearl Chrome Insulator Material:PPS
IP Degree:IP50
Supply Ability
Supply Ability: 50000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
Packaging Details 1 PCS connector in a PE bag,
50-100 PCS connectors in a small box/cartoon
Port shenzhen
Lead Time :
Quantity(Pieces) 1 - 200 201 - 500 >500
Est. Time(days) 5 7 To be negotiated

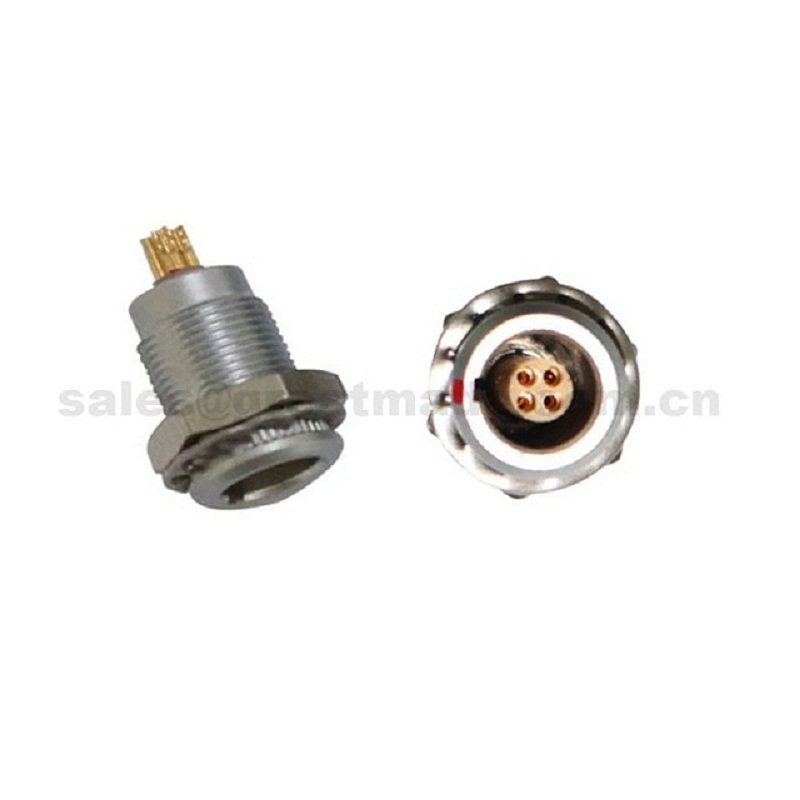

Product Description

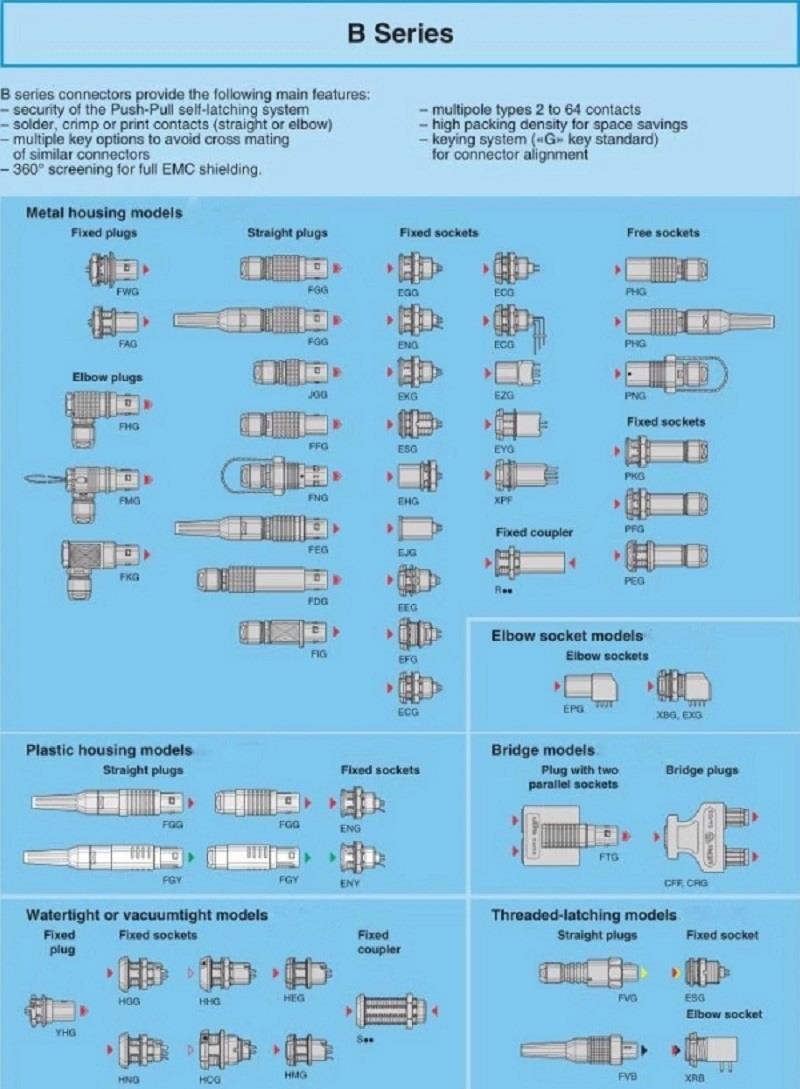

B series connectors provide the following main features:
1.Security of the Push-Pull self-latching system.
2.Multiple key(alpha=0/30/45/60).
3.Multipole types 2 to 26 contacts.
4.Solder, PCB contacts (straight or elbow).

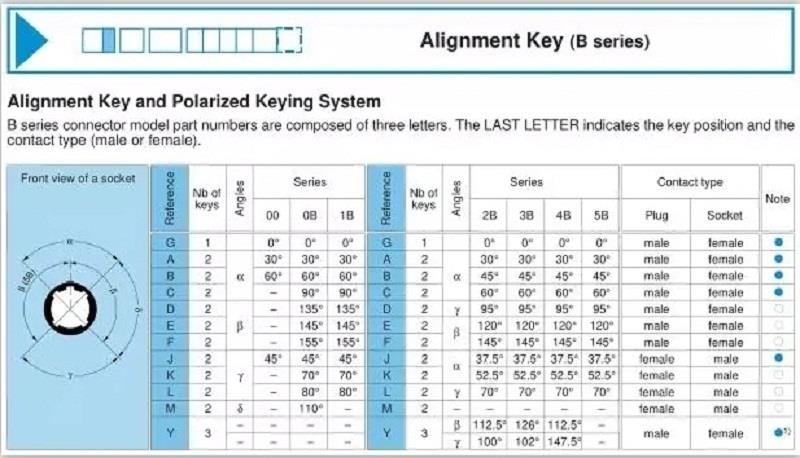

5.keying system («G» key standard)of similar connectors for connector alignment.
6.360° screening for full EMC shielding.
7.High packing density for space savings.

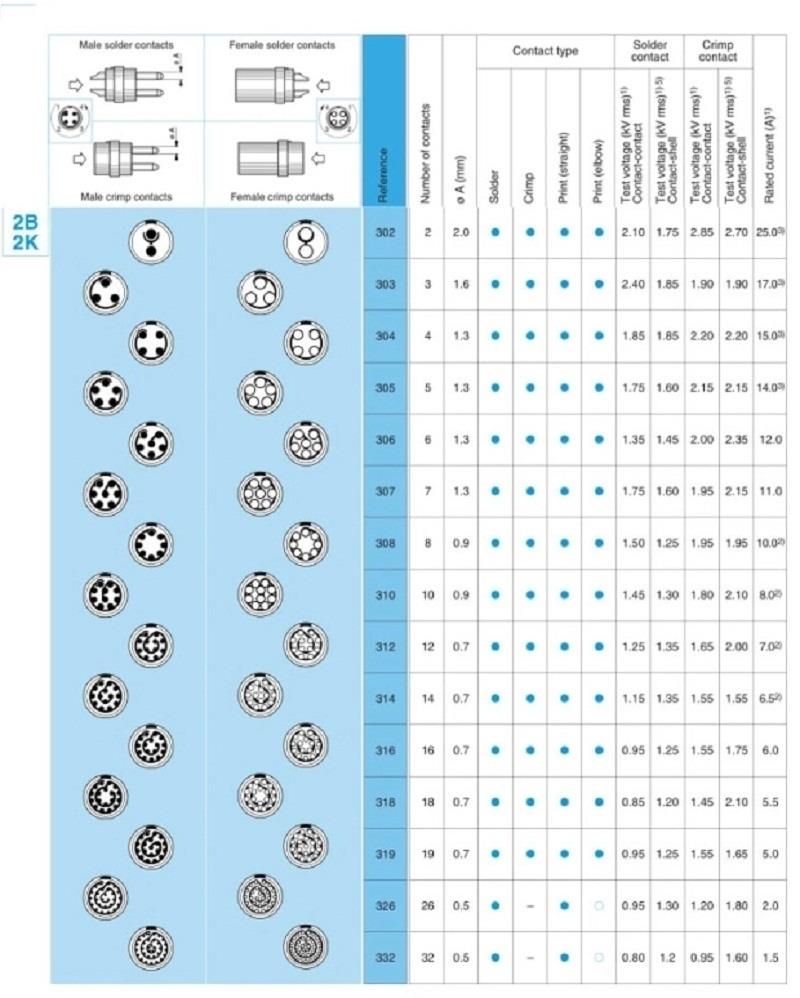

Insulator specs for B series:
Product characteristics
1. This self-latching system is renowned worldwide for its easy and quick mating and unmating features. It provides absolute security against vibration, shock or pull on the cable, and facilitates operation in a very limited space
2. Security of the Push-Pull self-latching system. Quickly insert and pull out, it is very convenient to use.
3. Multiple key options to avoid cross mating of similar connectors , effectively prevent incorrect insertion.
5.Made of metal, high quality and durable.
6.About bend relief: we have a wide range of colors to choose from, can effectively prevent mis-insertion
7. B series belongs to the standard keyed Series, Ingress protection is IP50, suitable for indoor use.
8. K series belongs to the watertight keyed Series, Ingress protection is IP 66 to IP68, suitable for outdoor use.
Sizes and contacts
Customization services, you can choose the series (size) you need and the number of contacts you want.

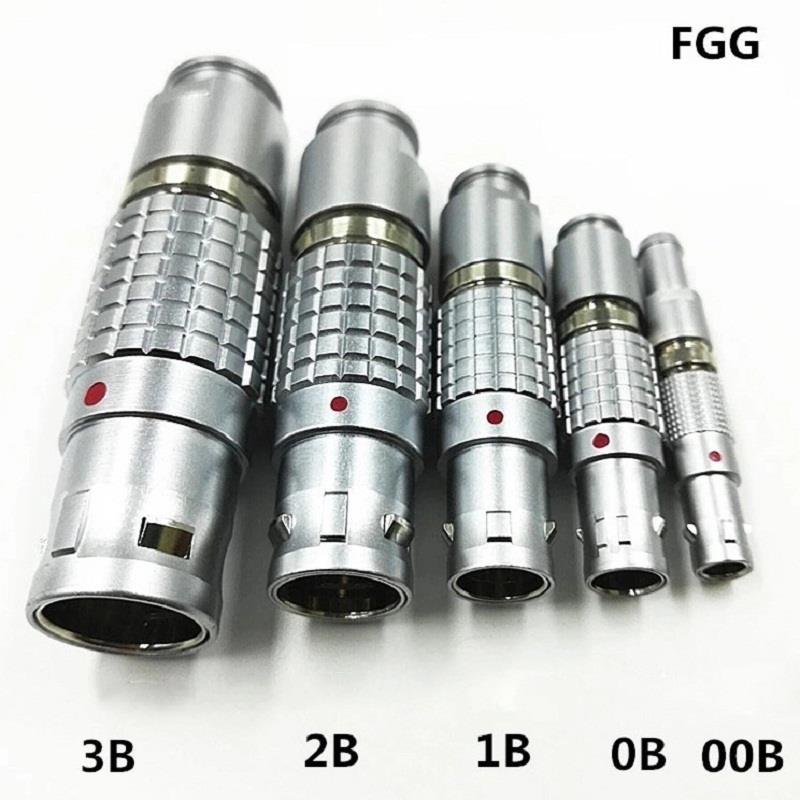

We have different sizes: 00B, 0B, 1B , 2B and 3B etc. (Just means sizes)
There are many kinds of contacts in each series.
You can order from us according to your requirements.
Different Series Connector Pins Number :

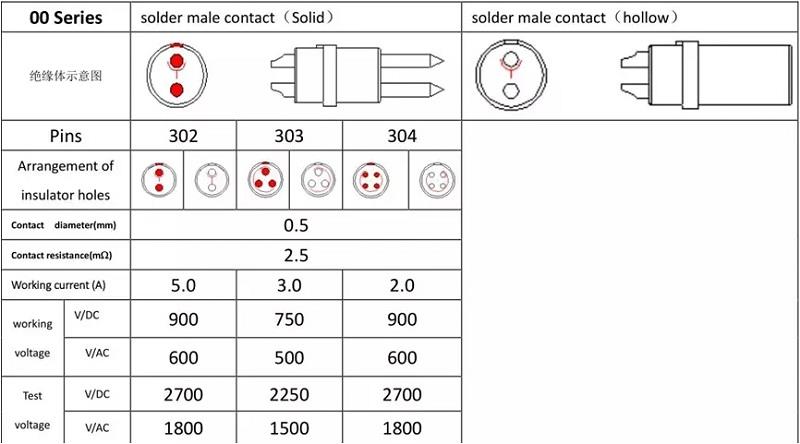

1. 00B Series:2 pins , 3 pins, 4 pins ,5 pins
2.0B Series:2 pins , 3 pins, 4 pins ,5 pins , 6 pins, 7 pins ,9 pins
3.1B Series:2 pins , 3 pins, 4 pins ,5 pins , 6 pins, 7 pins ,8 pins, 10 pins ,12 pins , 14 pins, 16 pins
4.2B Series:2 pins , 3 pins, 4 pins ,5 pins , 6 pins, 7 pins ,8 pins, 10 pins ,12 pins , 14 pins, 16 pins , 18 pins, 19 pins
5. 3B Series:3 pins, 4 pins , 7 pins ,8 pins, 10 pins ,12 pins , 14 pins, 16 pins , 18 pins, 20 pins , 24 pins, 26 pins , 30 pins
Multipole
Contact type
Soldering characteristics
– no need to order specific tools, a simple soldering iron is sufficient
– ideal for very small and fragile conductors
– contacts with solder cups to allow the solder to flow
Internal structure
Scope of Application
Usage: beauty equipment; medical devices; various high-end test equipment; micro drones; detection equipment; video equipment; visual equipment; military communication equipment, mobile equipment, etc. are widely used
All products of metal connectors
Company Information
Shenzhen Greatmade Tech LTD is a prefessional manufacturer of medical cable ,
Which is widely use with multi-parameter patient monitor , pulse oximeter, EKG device,
Blood pressure montior , electrosurgical unit.
We have 10 years experience in this field .
We have our own factory in Shenzhen China Mainland , and have complete manufacturing device and test device.We also build professional Research and Development team to satisfy various Market need Our superior quality , advantageous price and thoughtful service have wined our National and international customers' permanent support .
(5). ISO13485 ,CE mark and FDA
FAQ
Q1: Are you trading company or manufacturer ?
A: We are the manufacture.
Q2: How long is your delivery time?
A: It is 15 days after payment successful.
Q3: Do you provide samples ? is it free or extra ?
A: Yes,we provide samples for free,but you will pay for the shipping fee.
Q4: What is your terms of payment ?
A: If the payment<=$1000, 100% in advance.
Payment>=$1000, we accept 50% T/T in advance.
Q5:Does your product have any warranty?
A: Yes, all of our connectors can work normally after 5000 cycles mating, Our factory has instruments to tested them before shipping. Damage due to misuse, treatment and unauthorized modifications and repairs are not covered by our warranty.
Q6:What's your advantage? Why we choose you?
A:1)Many years experience of waterproof connectors production and R&D.We have the most professional techniques and team.
2)Great production capacity Sustainable Supply . According to customer requirements, We support the customized include package.
3)We use 100% new materials and the best production process .
