Quick Details
Place of Origin: Guangdong, China (Mainland) Brand Name: Greatmade
Model Number: EGG FGG.1B.302.CLAD62Z Type: Circular Push Pull
Application: Automotive, Lighting, Electrical Connector Gender: Female/Male, Female and Male
Pin: 1B 2pin Housing Materia: Brass
Contact Type: Solder Pins Contact Treatmen: Plated gold
Surface Treatment: Pearl Chrome Endurance: Above 5000 times push-pull
Insulator Material: PPS IP Degree: IP50
Supply Ability
Supply Ability: 50000 Piece/Pieces per Month
Packaging & Delivery

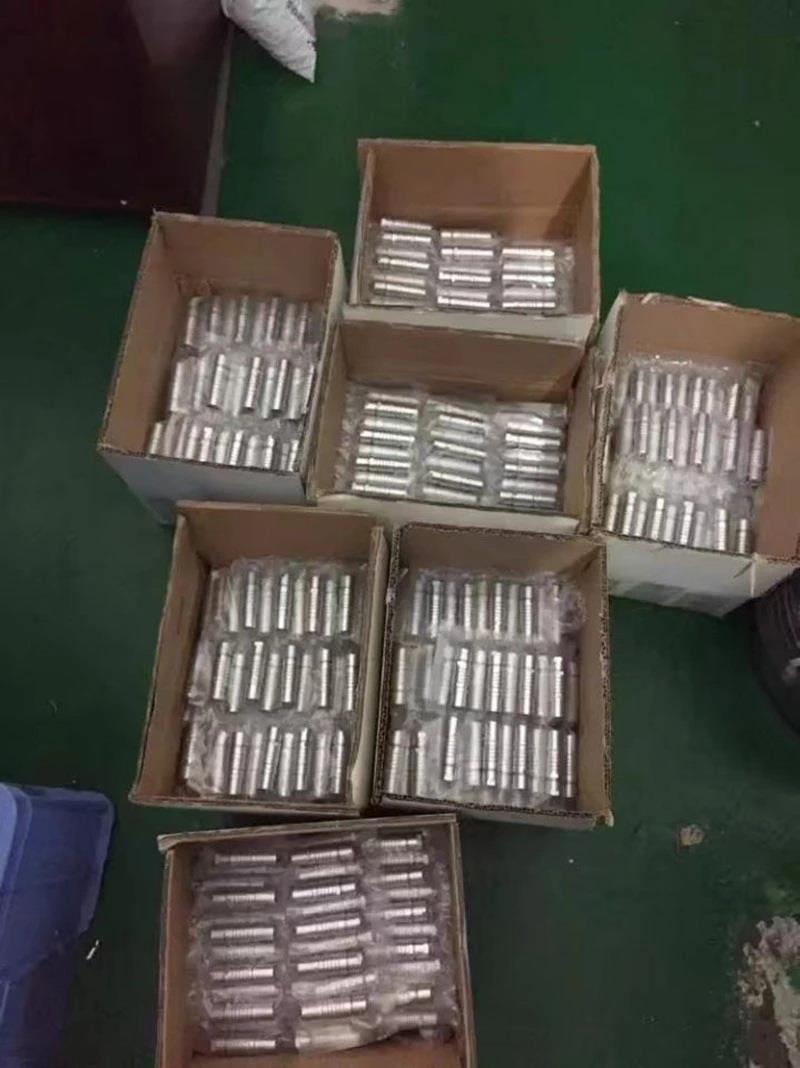

packaging Details 1 PCS connector in a PE bag,
50-100 PCS connectors in a small box/cartoon
Port shenzhen
Lead Time :
Quantity(Pieces) 1 - 200 201 - 500 >500 Est. Time(days) 5 7 To be negotiated
Product Description

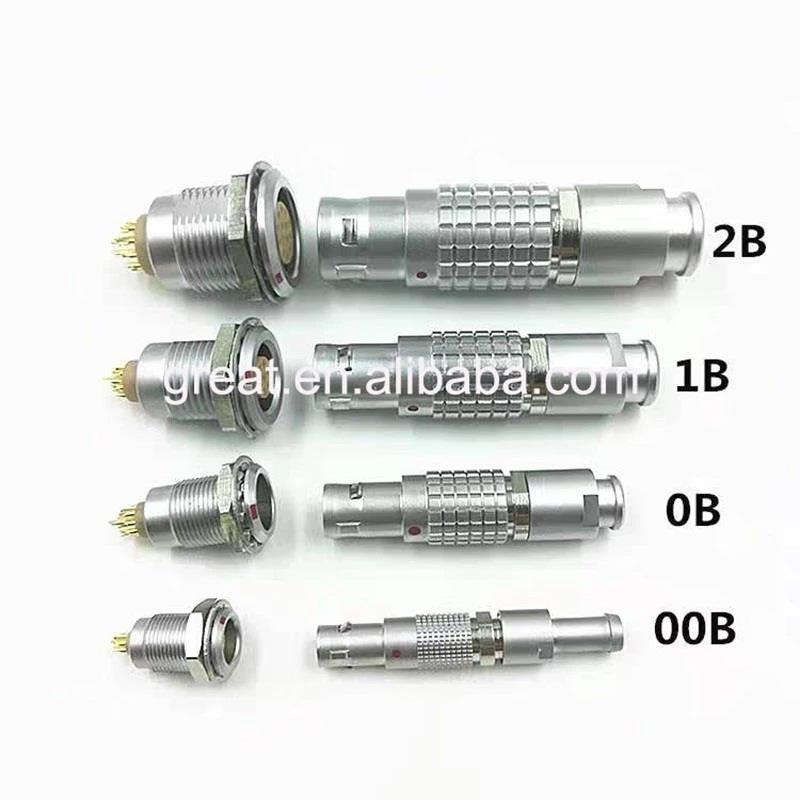

B series connectors provide the following main features:
1.Security of the Push-Pull self-latching system.
2.Multiple key(alpha=0/30/45/60).
3.Multipole types 2 to 26 contacts.
4.Solder, PCB contacts (straight or elbow).
5.keying system («G» key standard)of similar connectors for connector alignment.
6.360° screening for full EMC shielding.
7.High packing density for space savings.
Product Parameters

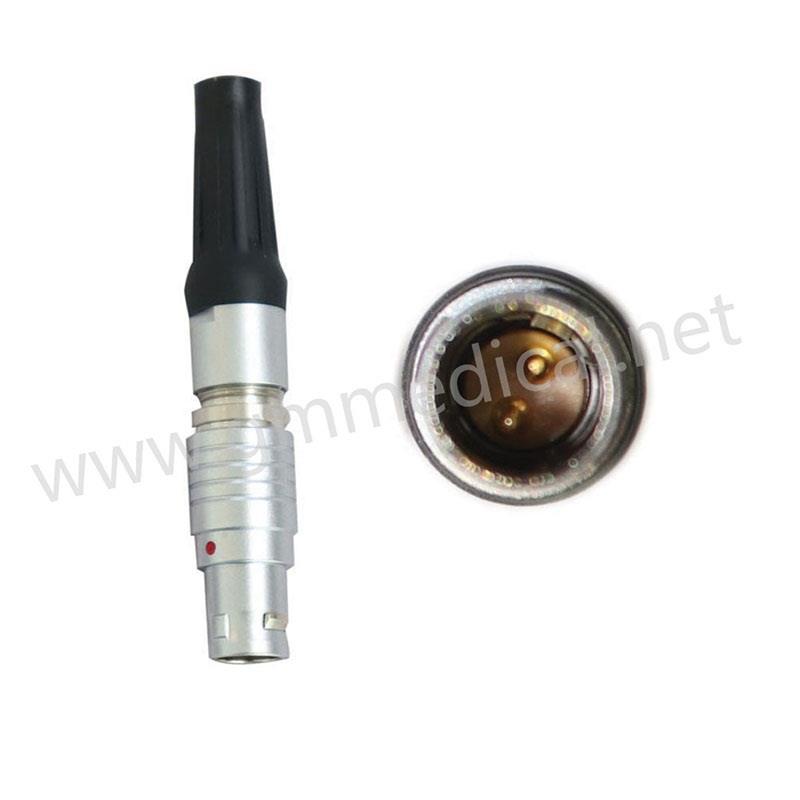

| Number | FGG.1B.302.CLAD62Z EGG.1B.302.CLL |
| Size/Series | 1B |
| Shell Style/Model | Straight plug,cable collet Fixed receptacle, nut fixing |
| Keying | 1 key (alpha=0, plug: male contacts, receptacle: female contacts) |
| Housing Material | Brass (chrome plated) shell and collet nut, nickel plated brass latch sleeve and mid pieces |
| Configuration | Brass (gold plated) |
| Insulator | PPS |
| Contact Type | Solder |
| Endurance (Shell) | 5000 mating cycles |
| Temp (min) | -40 deg |
| Temp (max) | 200 deg C |
| Humidity (max) | <=95% [at 60 deg C / 140 F] |
| Vibration | 15 g [10 Hz - 2000 Hz] |
| Shock Resistance | 100 g [ 6 ms] |
| Salt Spray Corrosion | >144 hr |
| IP Rating | IP50 |

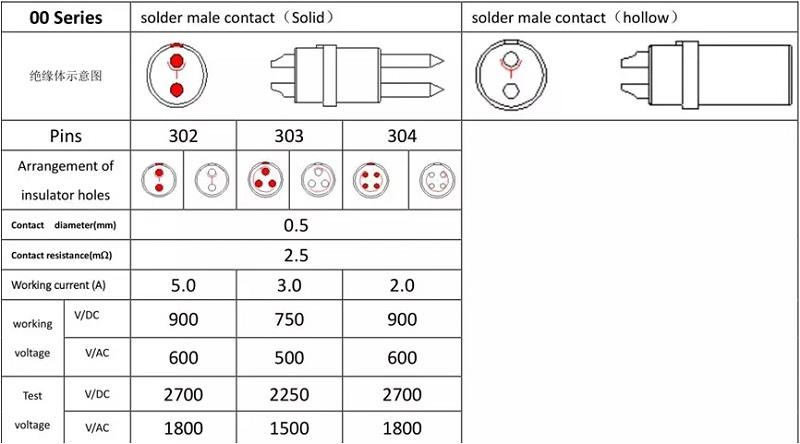

Insulator specs for B series:
Prodcut Size:
Product characteristics
There are many kinds of contacts in each series.
You can order from us according to your requirements.

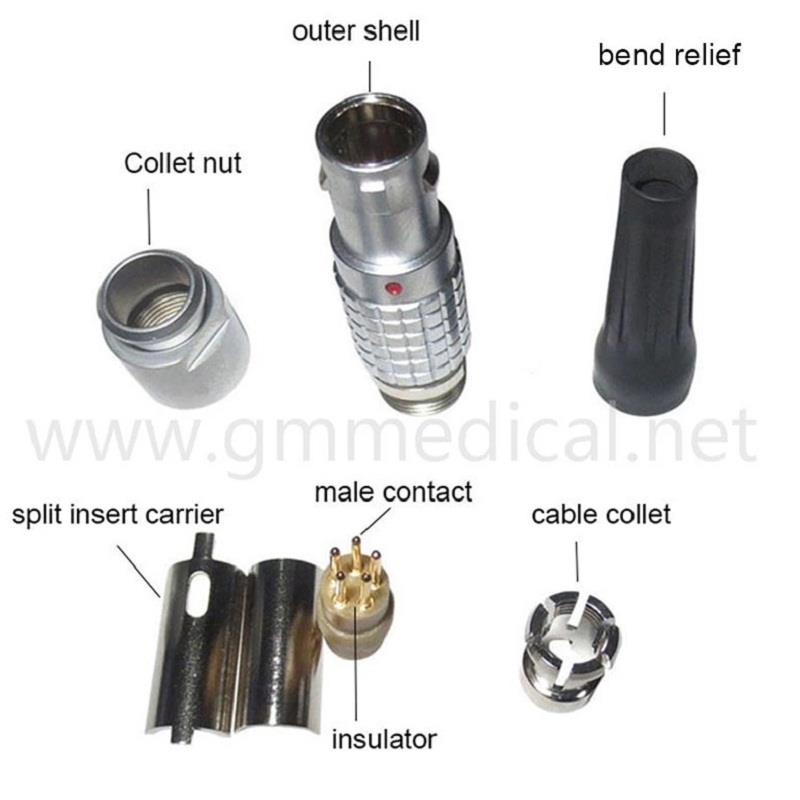

Internal structure
We have " with bend relief " and " without bend relief " styles ,normally we will sent " with bend relief ",
if you want " without bend relief " style,pls tell us.
Scope of Application
Usage: beauty equipment; medical devices; various high-end test equipment; micro drones; detection equipment; video equipment; visual equipment; military communication equipment, mobile equipment, etc. are widely used
Company Information
Shenzhen Greatmade Tech LTD is a prefessional manufacturer of medical cable ,
Which is widely use with multi-parameter patient monitor , pulse oximeter, EKG device,
Blood pressure montior , electrosurgical unit.
We have 10 years experience in this field .
We have our own factory in Shenzhen China Mainland , and have complete manufacturing device and test device.We also build professional Research and Development team to satisfy various Market need Our superior quality , advantageous price and thoughtful service have wined our National and international customers' permanent support .

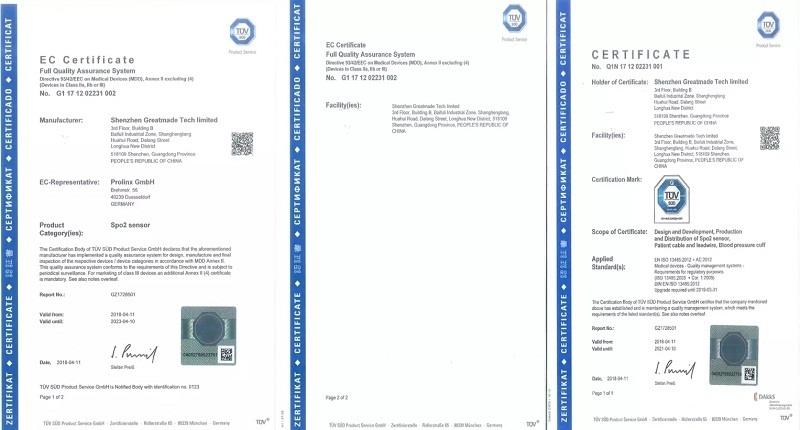

Our Certification:
EC, CE ,FDA
Q1: Are you trading company or manufacturer ?
A: We are the manufacture.
Q2: How long is your delivery time?
A: It is 15 days after payment successful.
Q3: Do you provide samples ? is it free or extra ?
A: Yes,we provide samples for free,but you will pay for the shipping fee.
Q4: What is your terms of payment ?
A: If the payment<=$1000, 100% in advance.
Payment>=$1000, we accept 50% T/T in advance.
Q5:Does your product have any warranty?
A: Yes, all of our connectors can work normally after 5000 cycles mating, Our factory has instruments to tested them before shipping. Damage due to misuse, treatment and unauthorized modifications and repairs are not covered by our warranty.
Q6:What's your advantage? Why we choose you?
A:1)Many years experience of waterproof connectors production and R&D.We have the most professional techniques and team.
2)Great production capacity Sustainable Supply . According to customer requirements, We support the customized include package.
3)We use 100% new materials and the best production process .
