FGG PHG 2B 302 Push-pull Metal Straight Plug/free Socket Connector

FGG PHG 2B 302 Push-pull Metal Straight Plug/free Socket Connector

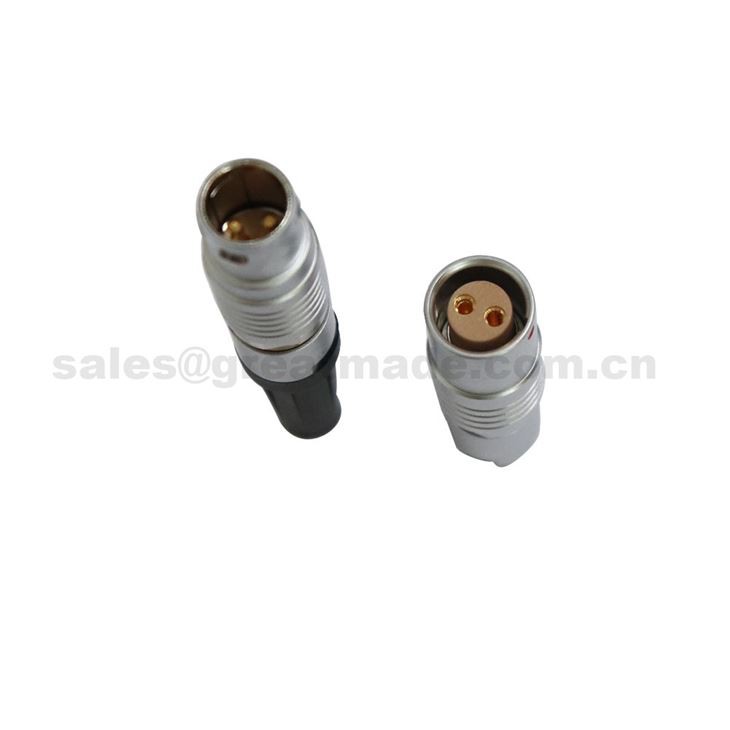

FGG.2B.302.CLAD10Z=straight plug with key (G) and cable collet, 2B series, multipole type with 2 contacts, outer shell in chrome-plated brass, PEEK insulator, male solder contacts, D type collet PHG.2B.302.CLAD10Z=free socket with key (G) and cable collet, 2B series, multipole type with 2 contacts, outer shell in chrome-plated brass, PEEK insulator, female solder contacts, D type collet

Product Introduction



phg

fgg

FGG PHG 2B 2 3 4 5 6 7 8 10 12 14 16 18 19 pin FGG Male Plug and PHG Female Free Socket-1

1 (2)

13 (2)


11 (3)

2

12 (2)

14 (2)

15 (2)

未标题-3

修图6 (2)

修图7 (2)

修图8 (2)

201907221436466233058

Product characteristics

1. This self-latching system is renowned worldwide for its easy and quick mating and unmating features. It provides absolute security against vibration, shock or pull on the cable, and facilitates operation in a very limited space

2. Security of the Push-Pull self-latching system. Quickly insert and pull out, it is very convenient to use.

3. Multiple key options to avoid cross mating of similar connectors , effectively prevent incorrect insertion.

4. Customization services, you can choose the series (size) you need and the number of needles you want

5. Made of metal, high quality and durable.

6. About bend relief: we have a wide range of colors to choose from, can effectively prevent mis-insertion

7. B series belongs to the standard keyed Series, Ingress protection is IP50, suitable for indoor use.
