FGG 1B Push-Pull Circular Metal Connector 14pin Plug With Socket
The features of B series connectors:
– security of the Push-Pull self-latching system.
– solder, crimp or print contacts (straight or elbow).
– high packing density for space savings.
– multipole types 2 to 64 contacts.
– 360° screening for full EMC shielding.
– multiple key options to avoid cross mating .
– keying system («G» key standard) for connector alignment.

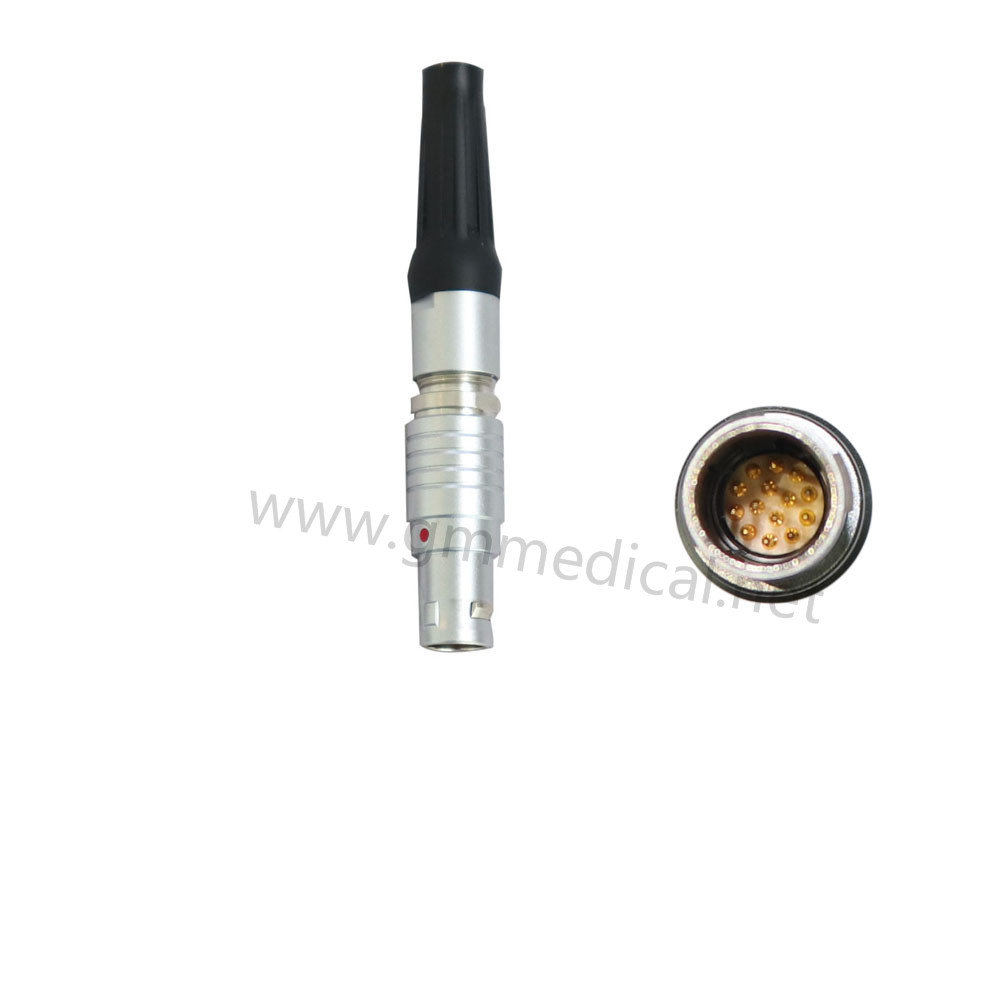

FGG.1B.314:straight plug with key (G) and cable collet, 1B series, multipole type with 14 contacts, outer shell in chrome-plated brass, PEEK insulator, male solder contacts, D type collet for 6.0 mm diameter cable.

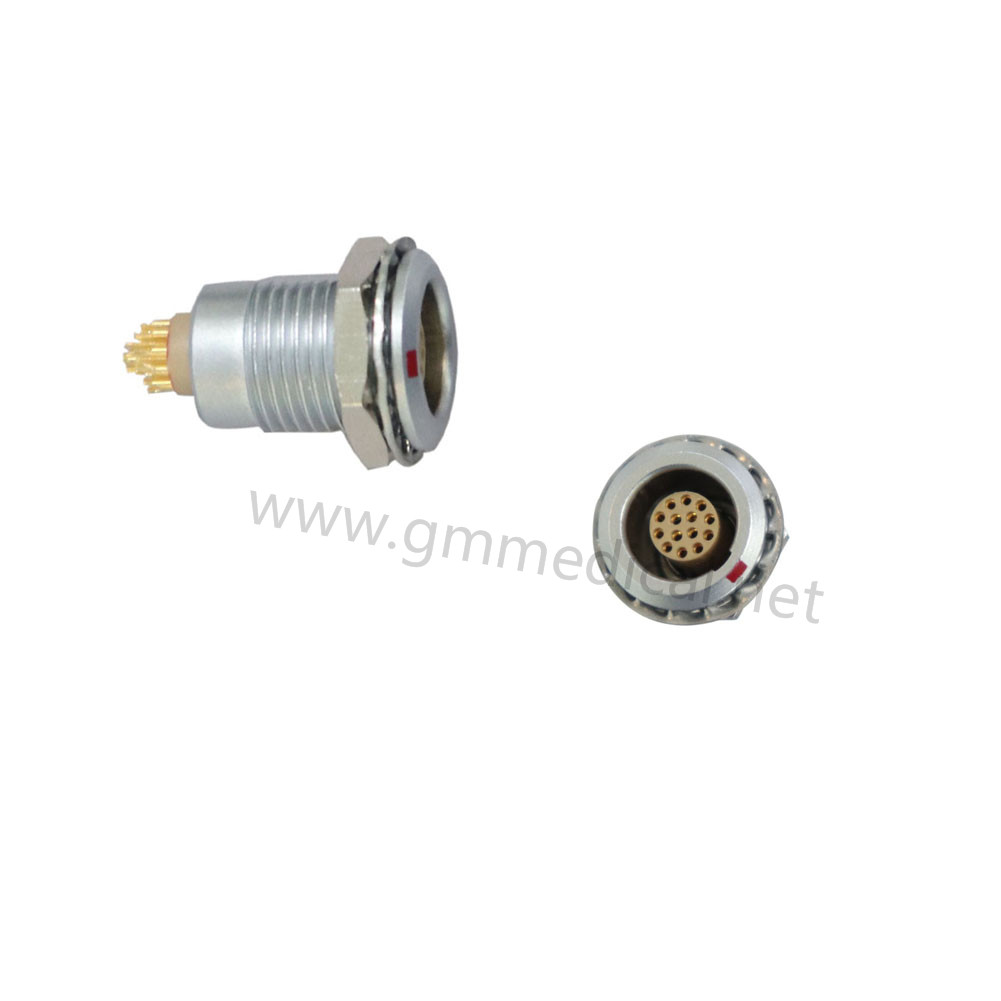

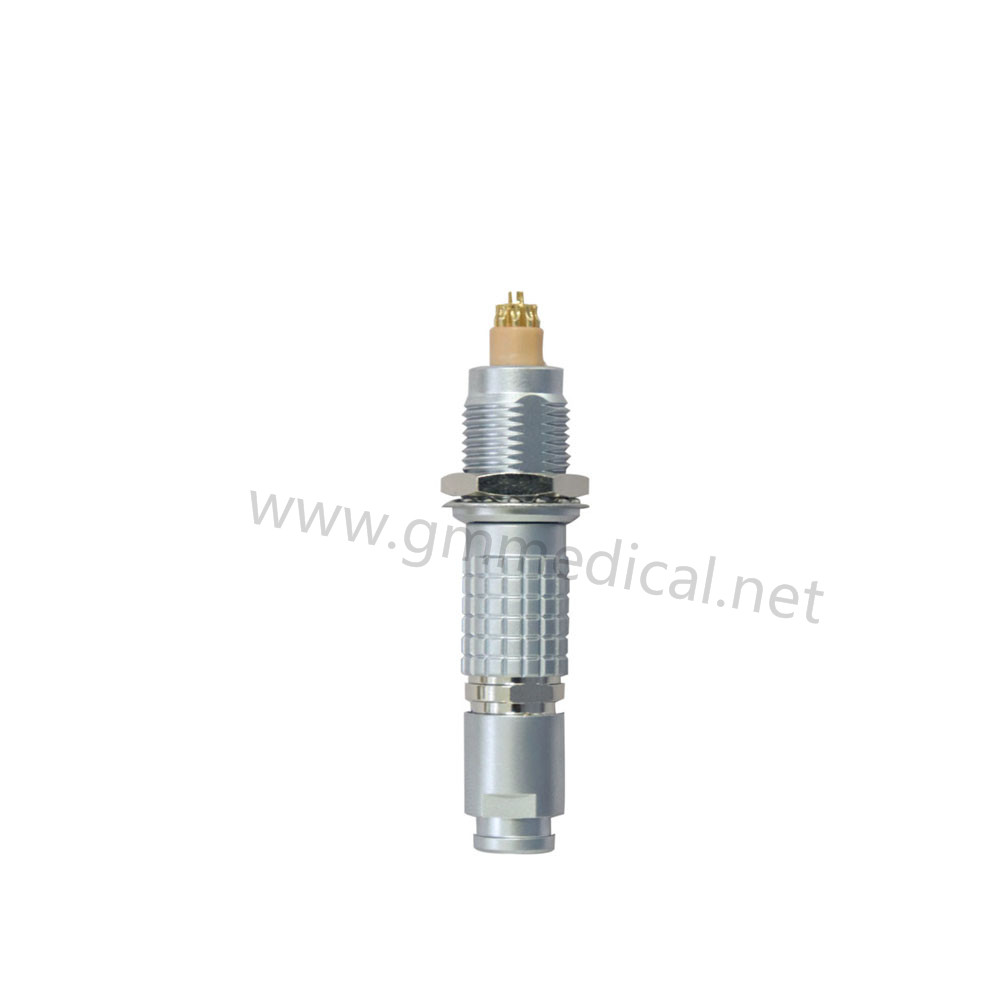

EGG.1B.314 : fixed socket, nut fixing, with key (G), 1B series, multipole type with 14 contacts, outer shell in chromeplated brass, PEEK extended insulator, female crimp contacts.

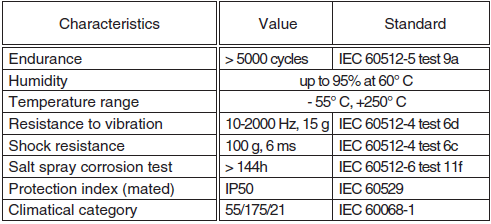

Technical Characteristics:
Specifications:
Greatmade No.: FGG 1B 314
Shell Material: brass/bronze
Insulator Material: PEEK
Payment Items: T/T, Western Union
Place Origin: Shenzhen,Guangdong,China(Mainland)
Port: Shenzhen
Shipping:
Delivery Time : 1-3 working days for sample and 5-7 working days for big order.
Payment:
