The JH-ZPG.0B.30*.HLN is a 2/3/4/5/6/7/8/9-pin circular push-pull PCB socket connector for high-performance electronic systems. It ensures reliable signal/power transmission with a secure lock, rugged build (chrome-brass shell, IP50), and gold-plated contacts for durability and easy use. Ideal for industrial, medical, and telecom applications requiring stability and low maintenance.

0B 2/3/4/5/6/7/8/9 pin 90°elbow socket

Greatmade Part no.: JH-ZPG.0B.30*.HLN

OEM Part no.: EPG.0B.30*.HLN

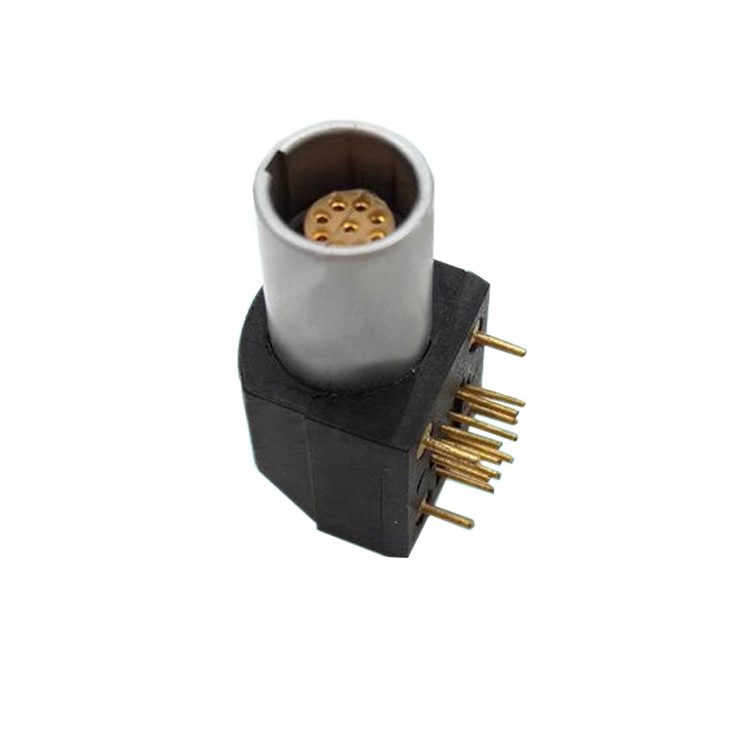

90° Elbow Power Socket with Solder Contacts

Compact socket with 2-9 pins for power wire connections. Features a 90° elbow design and solder contacts, ideal for space-saving, reliable electrical interfaces in industrial and microwave applications.

specification

Part no.	JH-ZPG.0B.30*.HLN
Description	Circular Push Pull Connectors 2/3/4/5/6/7/8/9P FEMALE PCB MNT R/A SOLDER
Series	0B
Connector Type	Receptacle, Female Sockets
Contact Gender	Socket (Female)
Number of Contacts	2/3/4/5/6/7/8/9 Contact
Mounting Style	PCB Mount
Termination Style	Print (Straight)
Primary Material	Metal
Shell Material	Brass
Shell Plating	Nickel
Contact Dia.	0.5mm
Ingress Protection	IP 50
Operating Temperature	-55°C to 250°C

The 0B series modular Circular Connector offers a solution for most applications. The push pull latching mechanism provides a secure connection whilst the density of the contacts provides for considerable panel space savings. The multi key options prevent cross mating of similar connectors within a panel. Contact types include LV, fibre optic, HV, coax providing for every eventuality. The ruggedized design combined with precision manufacturing offers excellent durability, reliability and quality.

Secure push-pull latching
Full EMC protection
Solder, crimp and PCB contacts
2 to 64 Contacts
5000 Mating cycles
1000-hour Salt spray
-55 to +250°C Temperature range

Selling Points

Superior Electrical Performance

2.5A rated current for reliable power delivery, resists overheating.

Gold-plated contacts reduce resistance/corrosion, ensuring stable signals and longer lifespan.

Robust Build Quality

Chrome-plated brass shell offers mechanical protection, EMI shielding, and durability for industrial/outdoor use.

IP50 dust-resistant rating safeguards internal components.

User-Friendly Design

Push-pull locking for quick, tool-free connections (50% faster than screw-locks), prevents accidental disconnection.

Keyed design ensures correct mating, avoiding misalignment damage.

Versatile Compatibility

Standardized PCB dimensions for easy integration, reducing design costs.

Operates in -40°C to +85°C extremes, suitable for harsh environments.

Usage Instructions

Installation: Align the keyed connector with the corresponding socket on the PCB, ensuring correct orientation. Apply gentle pressure to push the connector into place until it clicks, indicating a secure lock.

Removal: Grasp the outer shell of the connector and pull straight out using even force. Avoid twisting or pulling at an angle to prevent damage.

Maintenance: Periodically inspect for signs of wear or debris. Use a dry, lint-free cloth to clean the contacts if necessary. For optimal performance, ensure the mating surfaces remain free of contaminants.

Application Areas

Industrial Automation: Connects sensors/actuators in manufacturing lines; rugged, vibration-resistant design ensures continuous operation.
Test & Measurement: Enables precise signal transmission in lab instruments for accurate testing.
Medical Devices: Used in diagnostic/patient monitoring systems; biocompatible, safety-compliant.
Telecommunications: Provides stable data transfer in network equipment (switches, routers) under high-traffic conditions.
Aerospace & Defense: Meets avionics/military needs with lightweight, robust connectivity in extreme environments.
