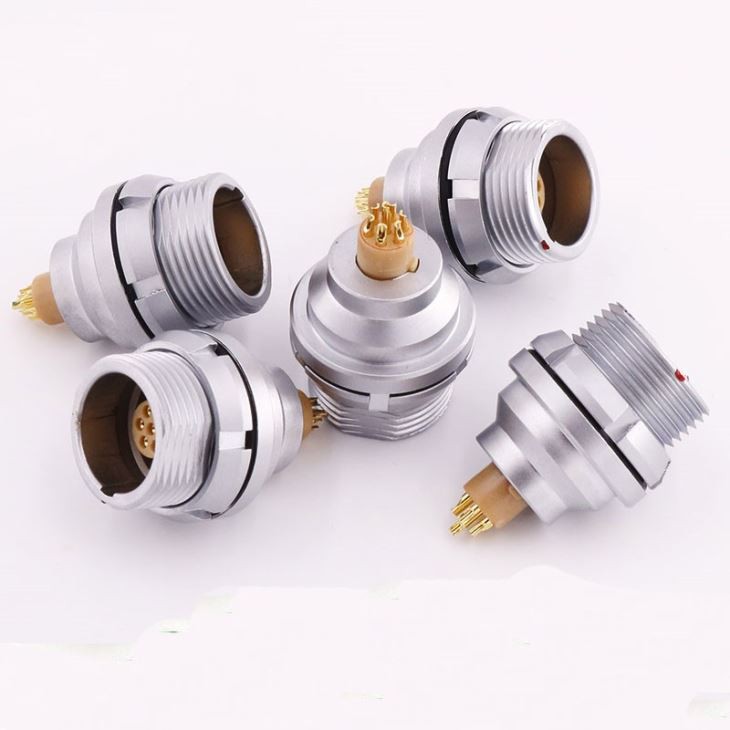

EEG 0K Series Metal M14 External Fixation Socket
EEG 0K 插座 M14 外固定 2-9芯 (2)

EEG 0K Series Metal M14 External Fixation Socket

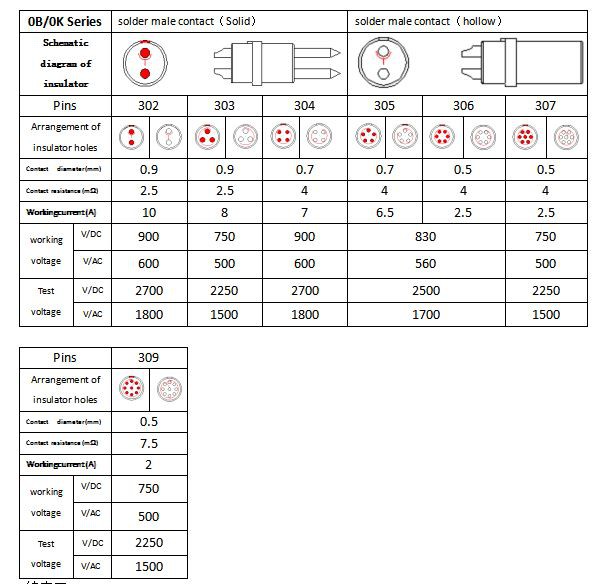

EEG.0K.305.CLAD52Z=Fixed socket with key (G) and cable collet, 0K series, multipole type with 5 contacts, outer shell in chrome-plated brass, PEEK insulator, male solder contacts, D type collet EEG.0K.306.CLAD52Z=Fixed socket with key (G) and cable collet, 0K series, multipole type with 6 contacts, outer shell in chrome-plated brass, PEEK insulator, male solder contacts, D type collet

Product Introduction

EEG 0K 插座 M14 外固定 2-9芯 (2)

201907221436466233058

Product characteristics

1. This self-latching system is renowned worldwide for its easy and quick mating and unmating features. It provides absolute security against vibration, shock or pull on the cable, and facilitates operation in a very limited space

2. Security of the Push-Pull self-latching system. Quickly insert and pull out, it is very convenient to use.

3. Multiple key options to avoid cross mating of similar connectors , effectively prevent incorrect insertion.

4. Customization services, you can choose the series (size) you need and the number of needles you want

5. Made of metal, high quality and durable.

6. About bend relief: we have a wide range of colors to choose from, can effectively prevent mis-insertion

7. K series belongs to the watertight keyed Series, Ingress protection is IP 66 to IP68, suitable for outdoor use.
