Products Description

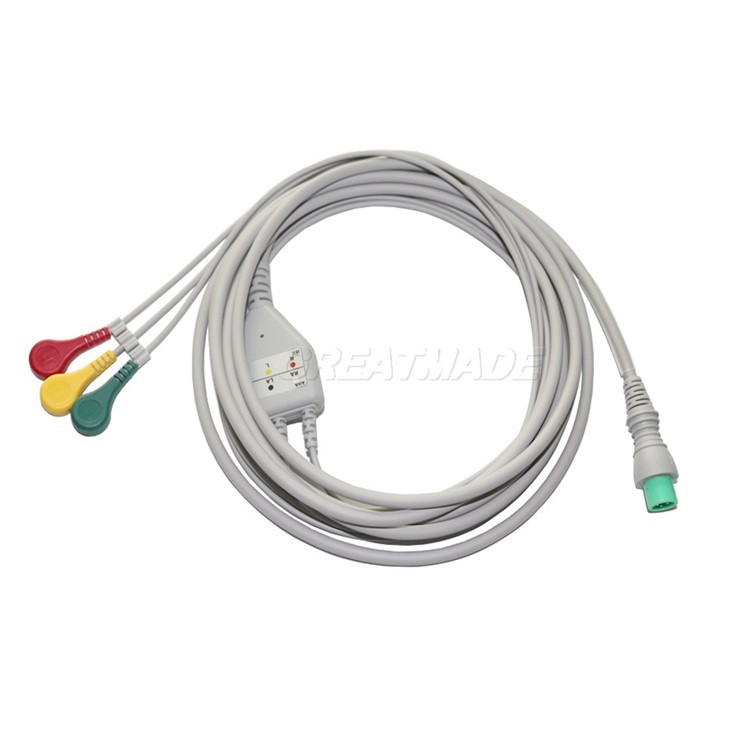

ECG cable with leadwires for Biolight M800
The ECG leadwires of the Biolight multi parameter monitor M800 are wires used to connect electrocardiogram electrodes and the monitor, mainly used to monitor the patient's electrocardiogram signals. Here is detailed information about ECG Leadwires:
Greatmade Part no.: MC128-3IS
Compatibiliity: Biolight M800vet handheld monitor
These wires usually need to comply with medical equipment standards to ensure the accuracy and stability of signal transmission. Using incompatible wires may result in inaccurate monitoring results or equipment malfunction
Function: The main function of ECG LEADFIRES is to transmit the patient's electrocardiogram signal to the monitor for real-time monitoring of the patient's electrocardiogram activity. These wires are usually connected to electrode patches on the patient's body, and then transmit the signal to the monitor for processing and display.
Usage: When using ECG LEADFIRES, it is necessary to attach electrode patches to specific areas of the patient (such as the chest, limbs, etc.), and then connect wires to these electrodes. The other end of the wire is connected to the electrocardiogram interface of the monitor. In this way, the monitor can display the patient's electrocardiogram waveform in real time, helping medical staff monitor the patient's cardiac health status
Specification
| Category | ECG cable |
|---|---|
| Type | One piece ECG cable with leadwires |
| Latex-free | Yes |
| Cable Color | Gray |
| Cable Diameter | 5.0mm |
| Cable Material | TPU Jacket |
| Cable leads | 3 lead |
| Connector Distal (Monitor end) | 4-pin Connector |
| Connector Proximal (patient end) | snap |
| lead wire diameter | 2.6mm |
| Lead Color Coding | IEC |
| Age Sizing | Pediatric/ Adult |
| Latex-free | yes |
| Packaging Type | Bag |
| Packaging Unit | 1 |
ECG leads: from electrodes to limb leads, chest leads & 12-lead ECG. … An electrode is a conductive pad that is attached to the skin and enables recording of electrical currents. An ECG lead is a graphical description of the electrical activity of the heart and it is created by analysing several electrodes.
Features
Pin and Lead Configuration:
The 4-pin connector is meticulously engineered to fit snugly into the corresponding ports of Biolight ECG machines. Each pin is made of high-quality, corrosion-resistant metal, ensuring reliable electrical contact.
The 3-leadwire system follows the standard lead placement protocol, with wires color-coded for easy identification:
IEC standard:
- R (Right Arm) - red,
- L (Left Arm) - Yellow,
- F (Left Leg) - green,
AHA standard:
- RA (Right Arm) - typically red
- LL (Left Leg) - black,
- V (Chest) - white.
This color-coding system adheres to international medical standards, facilitating quick and error-free setup.
Maintenance :
In order to ensure the normal use and prolong the service life of ECG LEADFIRES, it is recommended to regularly check the connection status of the wires to ensure that they are not damaged or loose. In addition, keeping the electrode patches and wires clean to avoid contamination and damage can reduce signal interference and ensure monitoring accuracy
Certificate
Package and storage :
Every ECG cable should be packaged singly,It should be stored in drafty indoor without corrosive gas. The storage conditions are below:(1)Environment temperature:-10℃~+40℃(2)Relative humidity:≤80%
Comply with EC,ISO13485
Warranty period/period of validity:
Warranty period:12 month
period of validity:N/A
