Product Description
Compatible With Schiler Cardiovit FT-1 MS-12 Holter ECG Recorder 10 Lead Snap Leadwire.
Schiller CARDIOVIT FT-1 ECG System
The Schiller CARDIOVIT FT-1 is an ultra-portable, high-performance 12-lead ECG device designed for modern clinical environments. Weighing just over 2 pounds, it features an intuitive 8-inch high-resolution multi-touch screen and supports both Wi-Fi and Ethernet connectivity for seamless integration with EMR/HIS systems. Its advanced diagnostic capabilities, including a 32,000 Hz sampling rate, ensure exceptional signal quality, making it ideal for both adult and pediatric ECGs

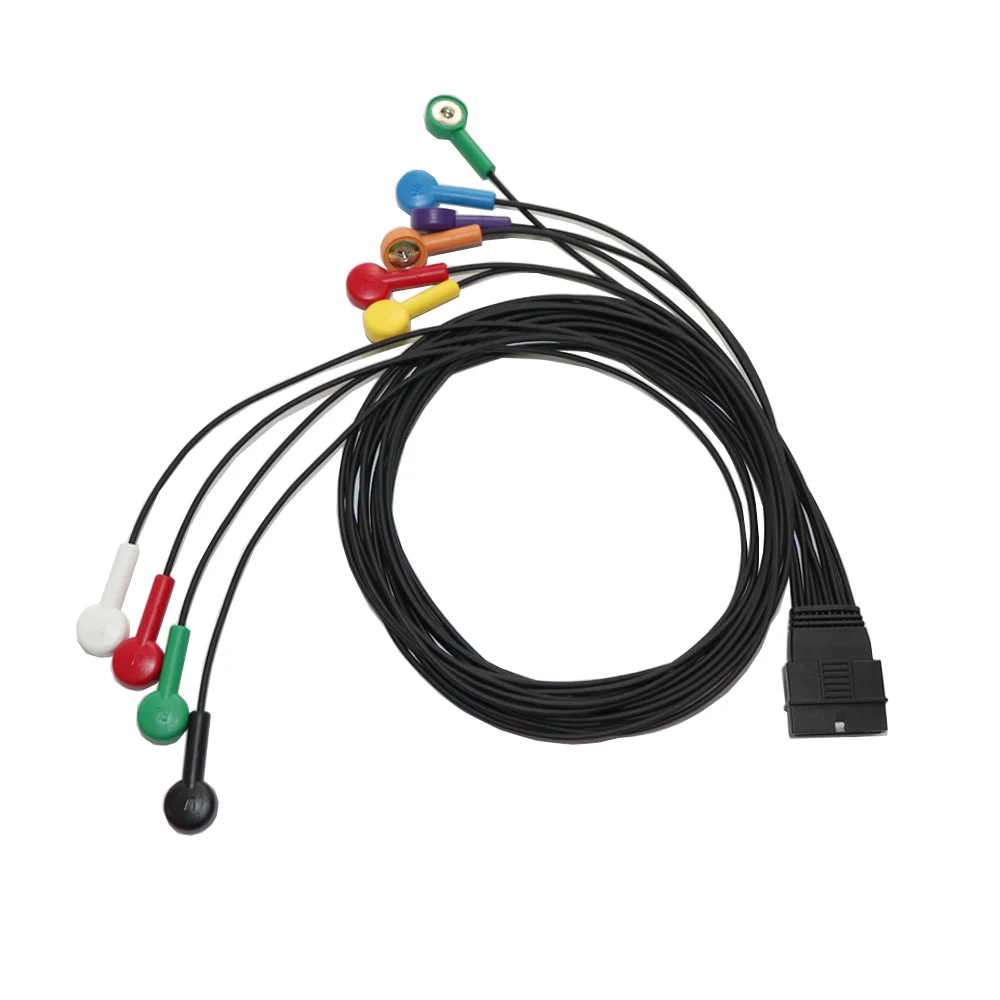

10-Lead Snap Leadwire for CARDIOVIT FT-1
The 10-Lead Snap Leadwire is specifically designed for use with the Schiller CARDIOVIT FT-1 ECG system. This one-piece, reusable cable features snap-style connectors and adheres to AHA standards, ensuring reliable and accurate signal transmission during ECG procedures.
Specifications:
Type : One-piece, reusable design
Color: Black ribbon type cable
Lead: 10 Lead configuration
Leadwire type: Snap-style connectors
Standard : AHA standard
Compatible for : Schiler Cardiovit Ft-1 MS-12 ECG system
Packaging: 1 piece/bag
How to Use the 10-Lead Snap Leadwire with the CARDIOVIT FT-1
1. Connect the Leadwire to the ECG Device
Locate the ECG cable input on the CARDIOVIT FT-1

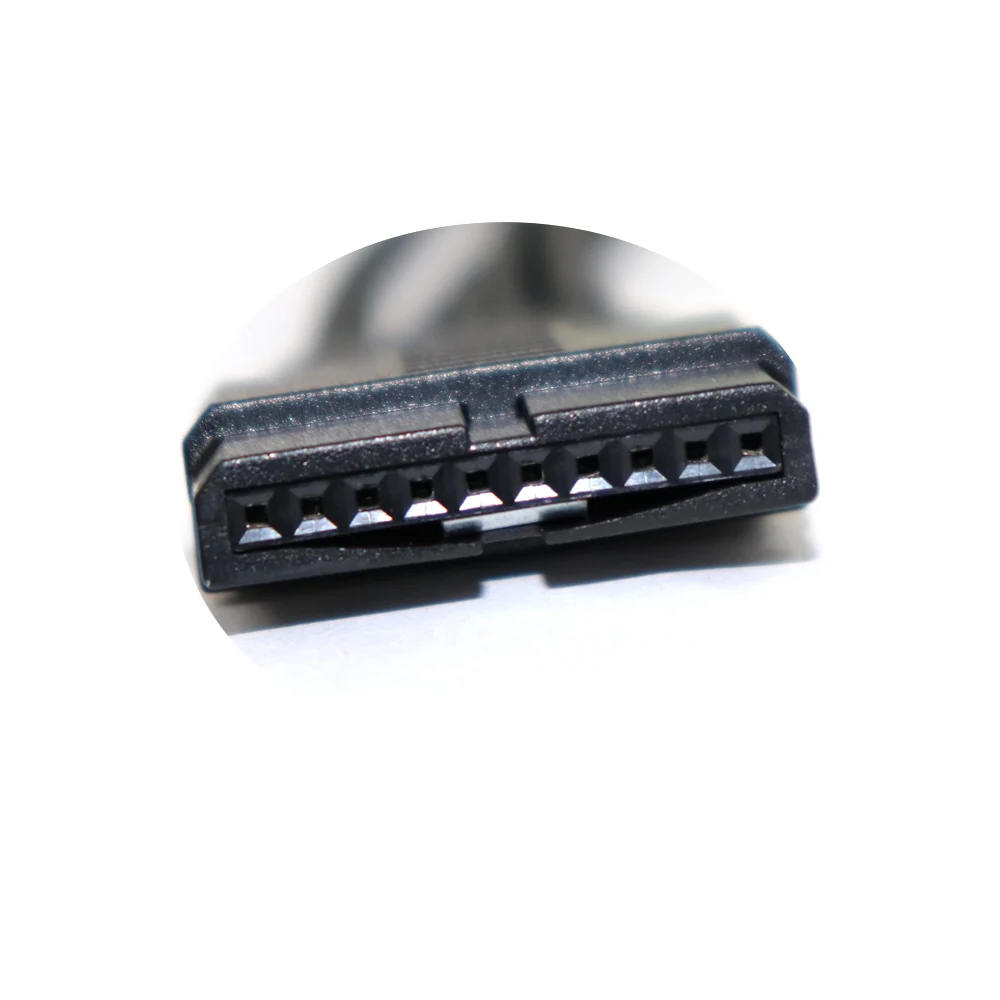

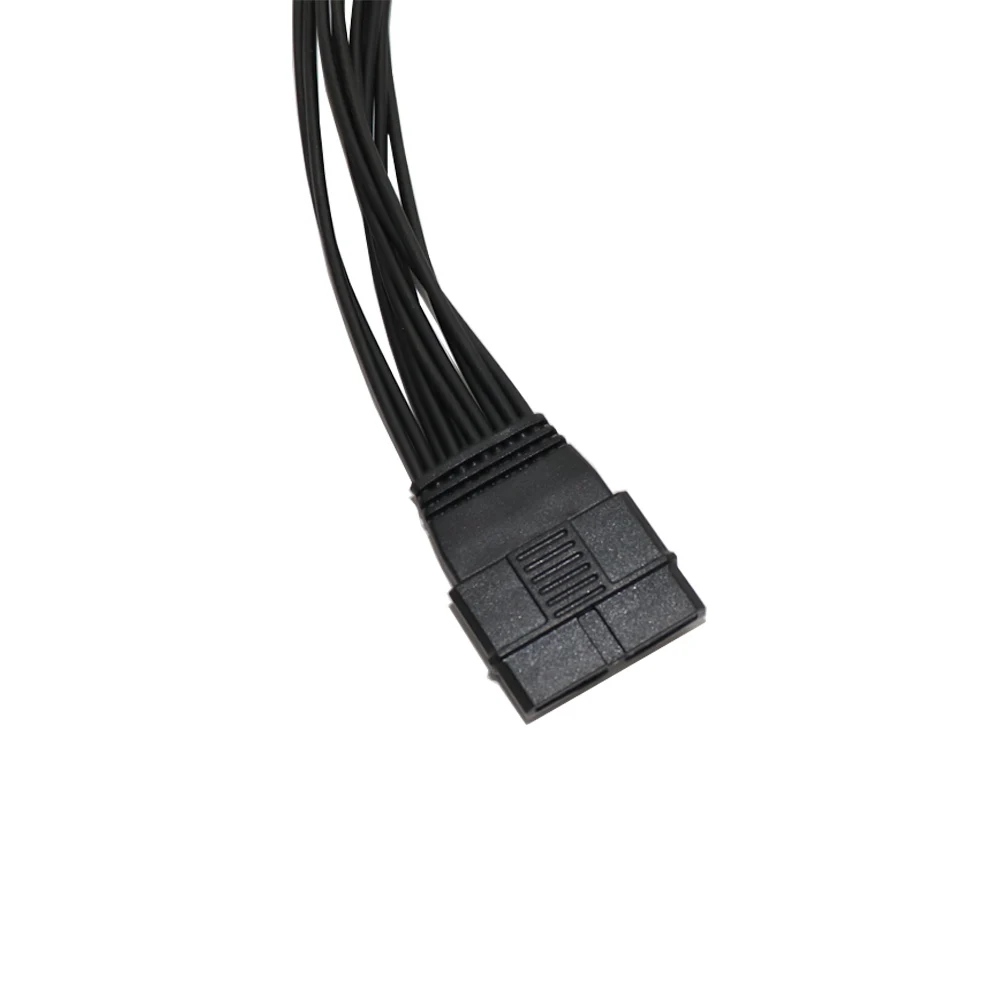

Firmly insert the connector end of the 10-lead cable into the ECG port until it clicks into place.
2. Prepare the Patient
Have the patient lie down in a comfortable, supine position.
Clean the skin areas where the electrodes will be placed using alcohol wipes to ensure good contact.
3. Attach Electrodes to the Patient
Snap ECG electrodes onto each of the leadwire snap ends.
Place electrodes on the patient's body according to standard AHA 10-lead placement:
| Lead | Placement |
|---|---|
| RA | Right arm, just below the clavicle |
| LA | Left arm, just below the clavicle |
| RL | Right leg, on the lower torso |
| LL | Left leg, on the lower torso |
| V1 | 4th intercostal space, right sternal border |
| V2 | 4th intercostal space, left sternal border |
| V3 | Midway between V2 and V4 |
| V4 | 5th intercostal space, midclavicular line |
| V5 | Level with V4, left anterior axillary line |
| V6 | Level with V4, left midaxillary line |
4. Verify Hook-Up on the Screen
The CARDIOVIT FT-1 has a lead placement guide and hook-up adviser.
It will show real-time connection status-ensure all leads are connected properly.
The device may warn if a lead is disconnected or placed incorrectly.
5. Start the ECG Recording
Once placement is verified, use the touchscreen interface to initiate the ECG.
You can record a resting ECG or a rhythm strip, depending on your clinical need.
6. Print or Save the Results
Results can be printed using the built-in thermal printer or saved/exported via Wi-Fi or Ethernet to your EMR/HIS system.
After Use
Remove electrodes gently from the patient.
Detach and clean the leadwires per your facility's infection control protocols.
Store the cable properly to avoid tangling or damage.
