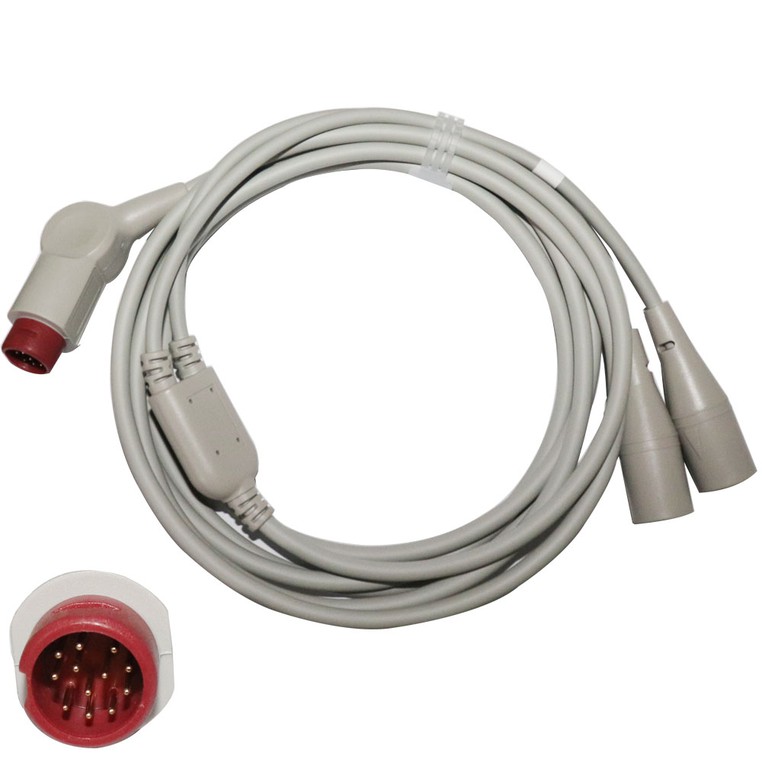

Compatible philips to Abbott IBP Adapter cable,2 channels
Technical Specifications:
| Compatibility: | Philips to Abbott |
| Category | Compatible IBP Adapter Cable |
| Cable Color | Gray |
| Cable Diameter | Main wire 6.0mm Leadwire 5.0mm |
| Cable Material | TPU Jacket |
| Certifications | CE, ISO10993-1, 5, 10:2003E, TUV, RoHS Compliant |

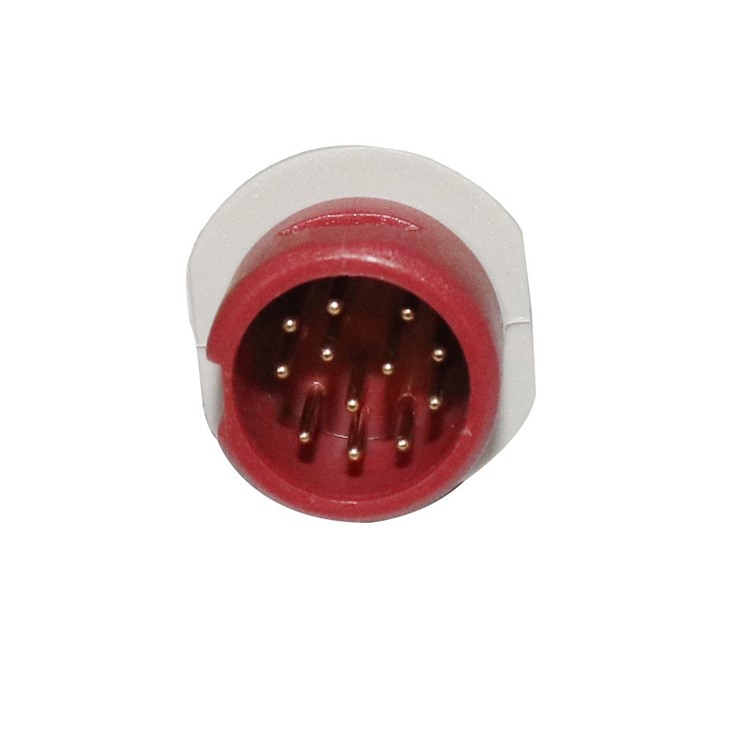

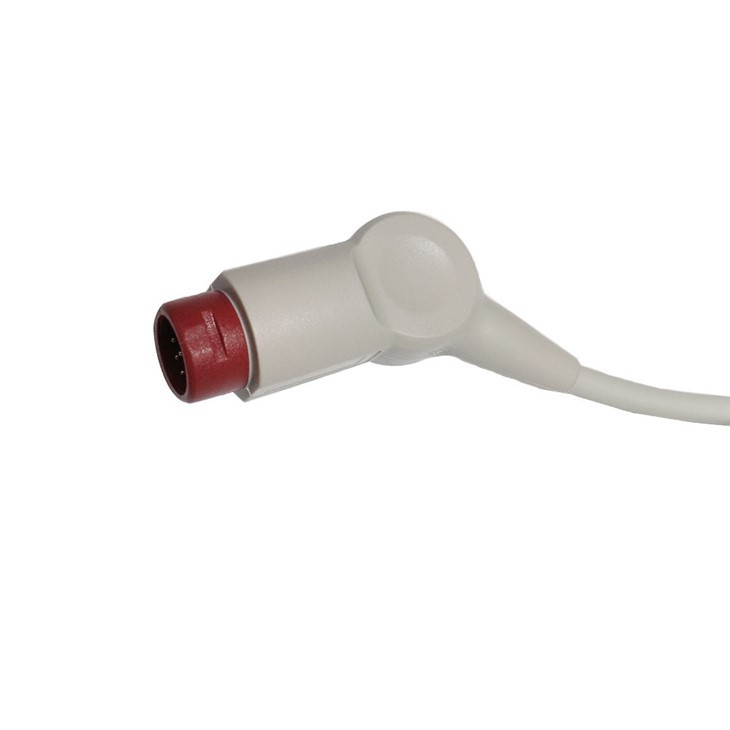

| Connector Distal | Philips 12 Pins |

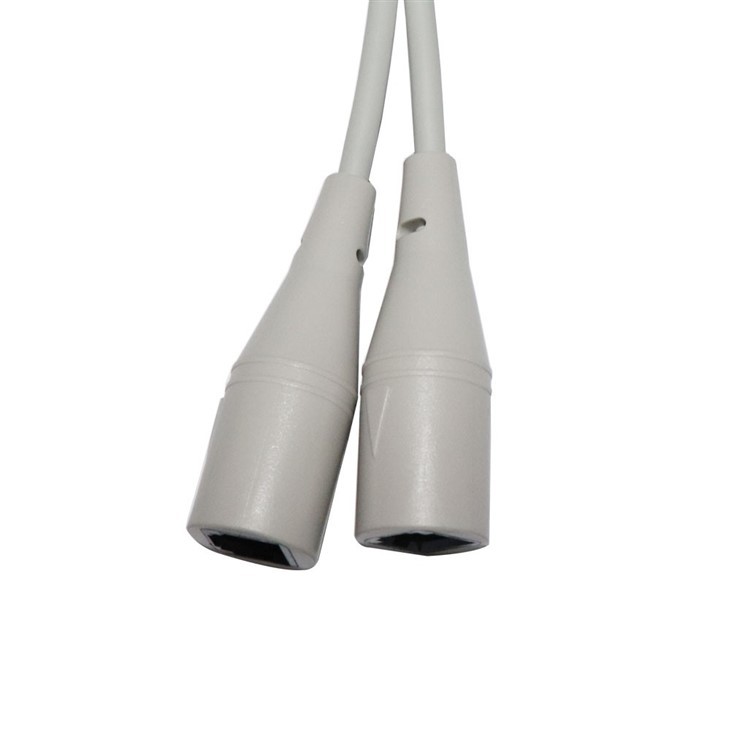

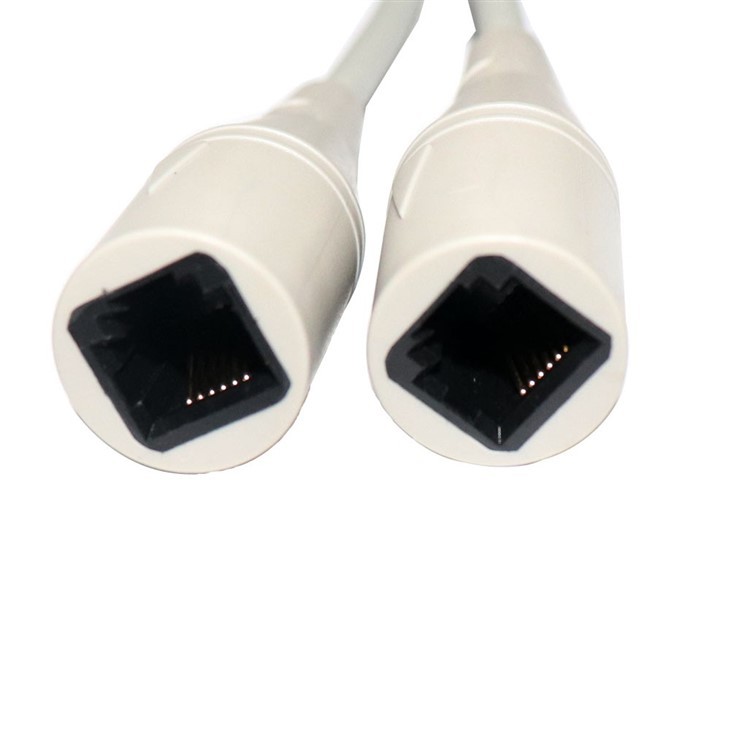

| Connector Proximal 1 | Abbott 6 Pins |
| Connector Proximal 2 | Abbott 6 Pins |
| Latex-free | Yes |
| Packaging Type | Plastic bag |
| Packaging Unit | 1 |
| Sterile | No |
| Warranty | 12 months |
Usage Instructions
1. Connection Setup
Plug the Philips IBP 2-channel cable into the Abbott monitor IBP input port (9-pin or proprietary connector, depending on the model).
Attach the transducer connector (disposable pressure transducer set) to the cable.
Ensure channel mapping:
Channel 1 (IBP1): typically arterial (ART).
Channel 2 (IBP2): typically central venous pressure (CVP) or other line.
2. Transducer Preparation
Flush the disposable pressure transducer with sterile saline.
Remove all air bubbles from the line.
Mount the transducer at phlebostatic axis (4th intercostal space, mid-axillary line).
3. Zeroing & Calibration
On the Abbott monitor, select the IBP channel → Zero to atmosphere before connecting to the patient.
Confirm waveform quality and stable baseline after connection.
4. Monitoring
Connect catheter line (arterial, venous, etc.) to the transducer.
Monitor pressure waveform and numeric values.
Ensure correct labeling on the monitor (ART, CVP, PA, etc.).
Cleaning & Disinfection
The IBP cable is reusable, but transducers are disposable (single-patient use).
1. Routine Cleaning
After use, disconnect the cable from both the monitor and the transducer.
Wipe the cable surface with a soft cloth moistened with mild soap solution.
Alternatively, use 70% isopropyl alcohol wipes.
2. Disinfection
Approved agents: 70% isopropyl alcohol, quaternary ammonium disinfectant wipes, or diluted bleach (≤10%).
Avoid: strong solvents (acetone, ether), autoclaving, or immersion in liquid.
3. Drying & Storage
Air dry completely before coiling and storing.
Store in a cool, dry place, away from direct sunlight.
Company
We are a professional manufacturer and exporter which specializes in Reusable SpO2 Sensor, Disposable SpO2 Sensor, SpO2 Extension Cable, ECG cable, EKG cable, IBP cable and Disposable pressure transducer, NIBP cuff & tube,Temperature Probe, semi-finished SpO2/ECG cables, SpO2/ECG/EKG/redial and different types monitor's OEM & ODM projects services.We have both legal production certifications and accuracy test equipment.Most of our products have passe CE Certification and ISO 13485 .
Product Application
Used in patient monitor, ECG Machine, Anesthesia Machine, Ventilator
