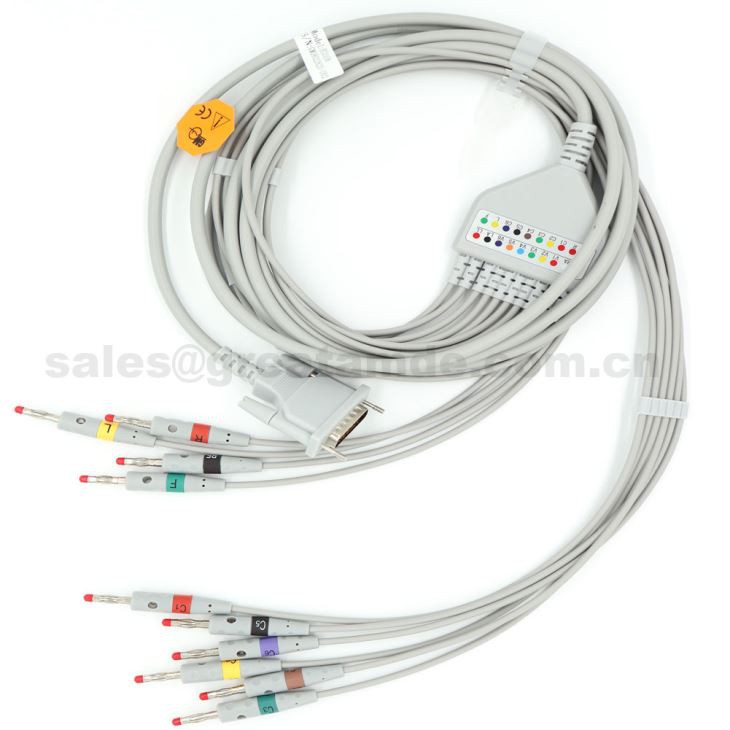

10 Lead EKG Cable with Leadwires for Schiller

10 lead EKG Cable with Leadwires for Schiller is an electrocardiogram (EKG) cable.
It's a crucial part of an EKG device. The cable is designed to connect the electrodes placed on a patient's body to the EKG machine. The leadwires are the wires that branch out from the main cable and are attached to the electrodes.
The "Schiller AT - 1" indicates that it's a specific model, likely designed to be used with Schiller brand EKG equipment. The cable usually has a particular connector at one end to fit into the EKG machine (such as a DB - 15 connector with screws) and banana - plug - like connectors at the other end for the leadwires. The leadwires have colors following the AHA/IEC standard for easy identification and correct connection to the electrodes on the patient's body. The cable is covered with a TPU jacket, which provides flexibility and durability. This type of cable is essential for accurately transmitting the electrical signals from the heart to the EKG machine to generate a clear electrocardiogram reading for medical diagnosis.

Product Description

10 lead EKG Cable with Leadwires for Schiller is a key part of an EKG device. It links the electrodes on a patient's body to the EKG machine. The leadwires branch from the main cable and attach to the electrodes.

1.Description: schiller EKG cable , IEC, DB15M> Banana 4.0
2.Connector Guide: DB15 male
3.Compatibility: Suitable for Schiller AT-102, CS-200,Cardiovit AT-10 plus,AT-104 PC, AT-110; Futuremed ;all ; Cardiette , Astron; BTL ; Del Mar ;910.920, 930,940, 942, 950, 960,970,980, Camina

4.CABLE material: Quality TPU jacket cable

5.Latex free

6.Quantity: 1 piece/bag

Detailed Images

Technical specifications:

Safety: AAMI&IEC approved, conformity with MDD 93/42/EEC and AAMI/ANSI EC53
Ambient temperature: 0 to 40°C(32 to 104°F)
Relative humidity: 15% to 95%
Materials: Quality TPU jacket cable

Greatmade No.	Desceiption ( Cable and connector )
EC010A	schiller EKG cable , IEC, DB15M> Banana 4.0
EC010B	schiller EKG cable , AHA, DB15M> Banana 4.0
EC010C	Schiller EKG Cable , IEC, DB15M>Grabber
EC010D	Schiller EKG Cable , AHA, DB15M>Grabber
EC010E	Schiller EKG Cable , IEC, DB15M>Snap
EC010F	Schiller EKG Cable , AHA, DB15M>Snap

DB15 Pin Connector

Banana 4.0 leadwires

EKG leadwires

AHA and IEC

EKG cable IEC DB15M Banana 40 AT-1 Use with Schiller AT-102 CS-200

IEC and AHA.jpg

Physical Characteristics

Connector Design: The distal connector is a DB-15 connector with screws, and the proximal connector is designed to be banana plugs, which are latex-free.

Cable Specifications:

Trunk cable duameter : 6.0mm, Leadwires diameter: 3.20 mm

cable material is covered with a TPU jacket, which is not only durable but also provides good insulation and flexibility.

The cable color is gray, and the lead wires are color-coded according to the AHA/IEC standard, which is convenient for correct connection and identification.

Packaging: It usually comes in a bag packaging, and the packaging unit is 1 piece.

Compatibility: This cable is highly compatible and can be used with a variety of EKG machine models, including Cardiette AR1200, Adv Contec ECG300G, Esaote 50, Biosound Mylab 30 CD, Biosound Mylab 30 CV, Mylab 30 Vet, P80 series 40893, Mindray Datascope Beneheart R3, and of course, the Schiller AT-1, AT-2, AT2 light, AT2 plus, AT4 and other models of the Schiller series.

Performance and Advantages

Accurate Measurement: It can ensure the accurate transmission of EKG signals, providing reliable data support for medical diagnosis.
High Quality and Durability: The use of high-quality materials and advanced manufacturing processes makes the cable have superior flexibility and durability, and can withstand long-term use and frequent bending.
Safety: The cable is latex-free, reducing the risk of allergic reactions in patients and medical staff.
