Products Description
Pediatric Multi-use Limb Electrode And Suction Electrode
Pediatric Multi - use Limb Electrodes and Suction Electrodes are commonly used accessories in pediatric electrocardiogram (ECG) detection:
Purpose: They are used to collect electrocardiac signals of children, which helps diagnose heart structural abnormalities, arrhythmias, myocardial injuries or inflammations, etc.
Usage: They are suitable for infants, toddlers, and children weighing less than 90 pounds. Limb leads should be placed on the four limbs. Arm leads are placed above the elbows, and leg leads are placed between the knees and ankles.
For infants, toddlers, and children under 90 lbs, measuring rib spaces is not usually possible. For all ECGs, limb leads should be placed on the limbs - not the torso. Arm leads should be placed just above the elbows. Leg leads should be placed between the knee and ankle.
ECG Basics
V1 4th intercostal space to the right of the sternum (about ½ inch to 1 inch from the midline)
V2 4th intercostal space to the left of the sternum (about ½ inch to 1 inch from the midline)
V3 Midway between V2 and V4
V4 5th intercostal space at the midclavicular line (at the nipple line)
V5 Anterior axillary line at the same level as V4 (where the ribs curve back)
V6 Midaxillary line at the same level as V4 and V5 (should be below the armpit)
Limb leads:
Place on top part of arm or leg (less muscle interference)
Function
ECG Limb Clamp is the accessory for ECG Machine to obtain the ECG signal, it is reusable and durable.
Suction electrodes are used with muscle research systems to record the action potentials from the stretch receptors at the same time that the length and tension of the muscle are recorded.
Specification
Pediatric Multi-use Limb Electrode And Suction Electrode
| Description | Multi-use Limb Electrode with Screw, Pediatric size | |
| Part no. | EC012D | |
| Technical Parameter | electrode type | limb |
| electrode spec | fit for banana 4.0, Din 3.0, Snap and clip | |
| Patient size | Pediatric | |
| Number of electrode | 4 pcs/ set | |
| Electrode material | Nickel-plated | |
| Clamp material | Plastic | |
| Plastics color | Red yellow black green | |

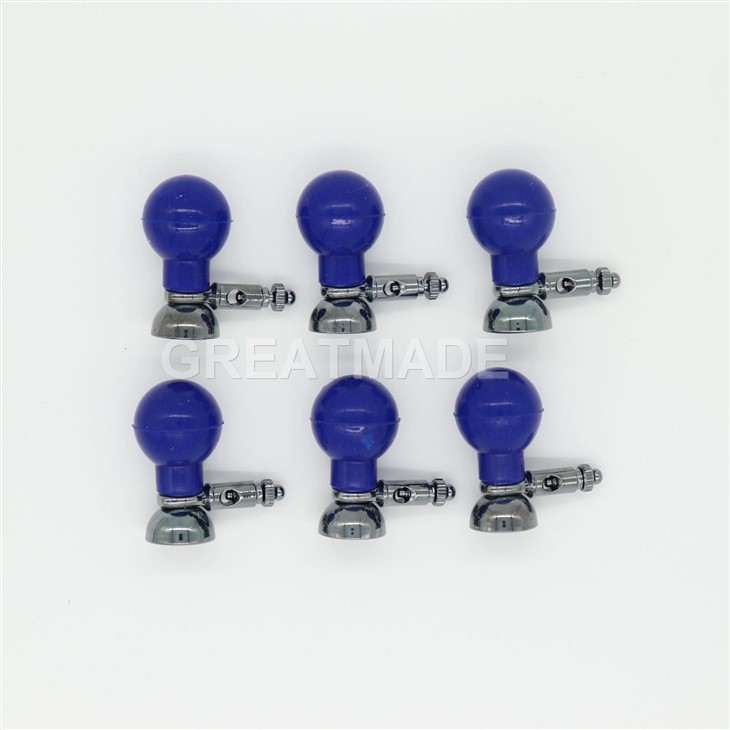

| Description | Multi-use Limb Electrode with Screw, Pediatric size |
| Part no. | EC013F |
| Perfit for | 3.0mm Din plug and 4.0 banana |
| Material | plating Nickel(Shine), metal pedestal |
| Diameter of ball | 26mm |
| Metal Diameter | 21mm |
| Packaging Unit | 6 pcs/ set |
| Packaing Type | box |
Advantages
1) Attractive design, high quality and reasonable prices
2) Advanced processing technology
3) Advanced detection equipment
4) high quality raw material
