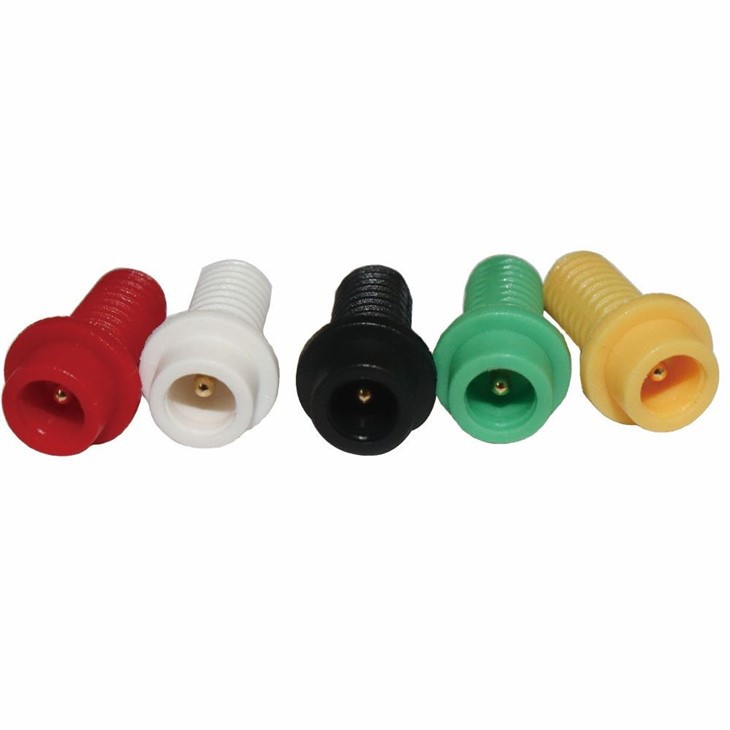

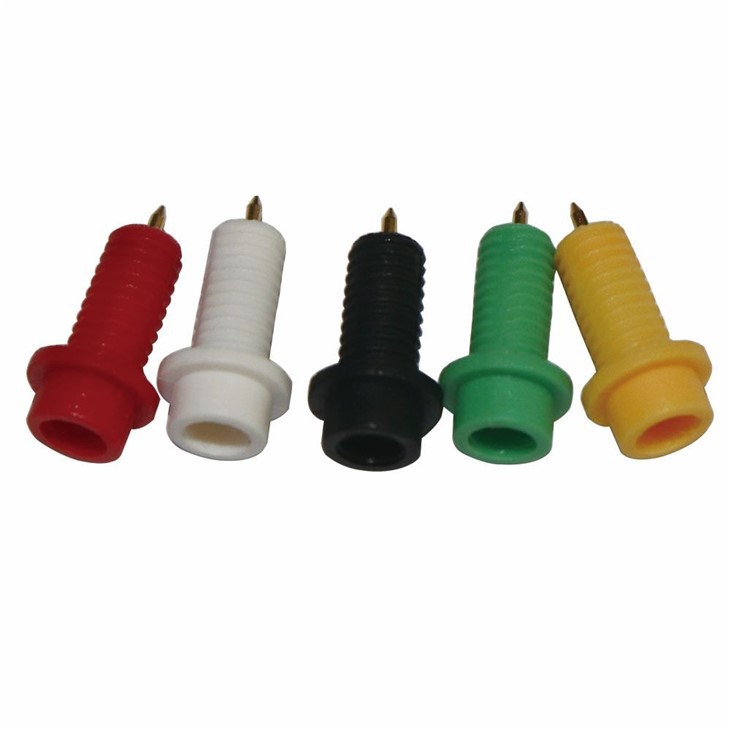

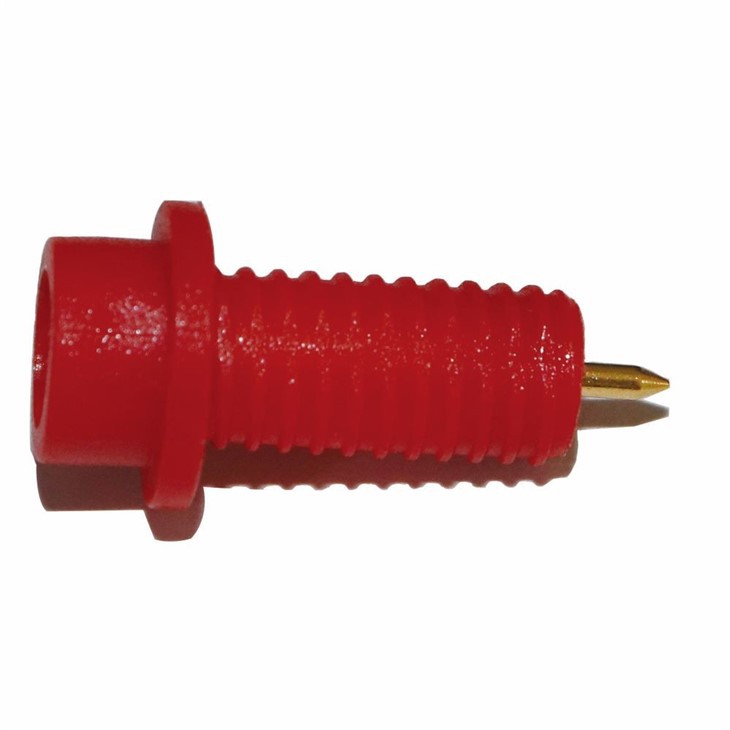

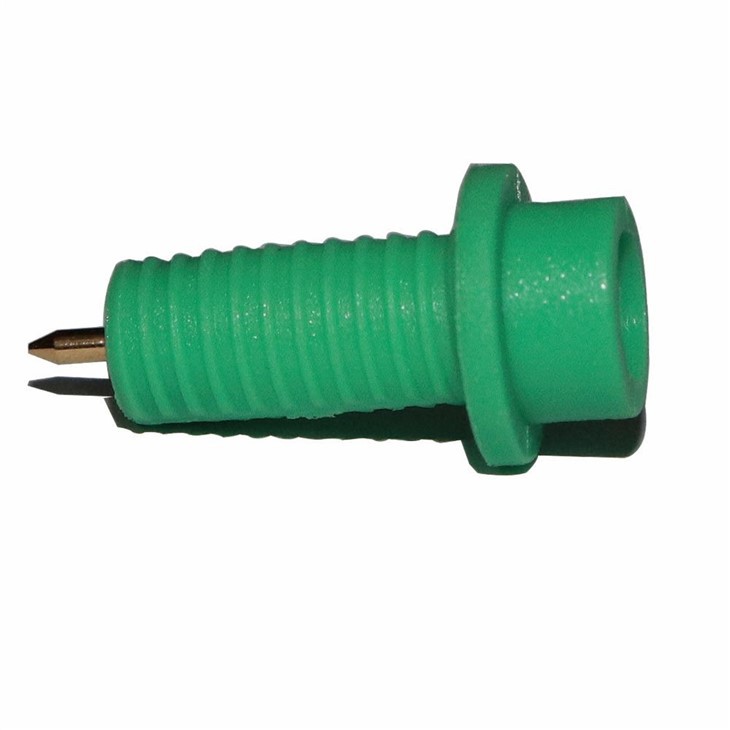

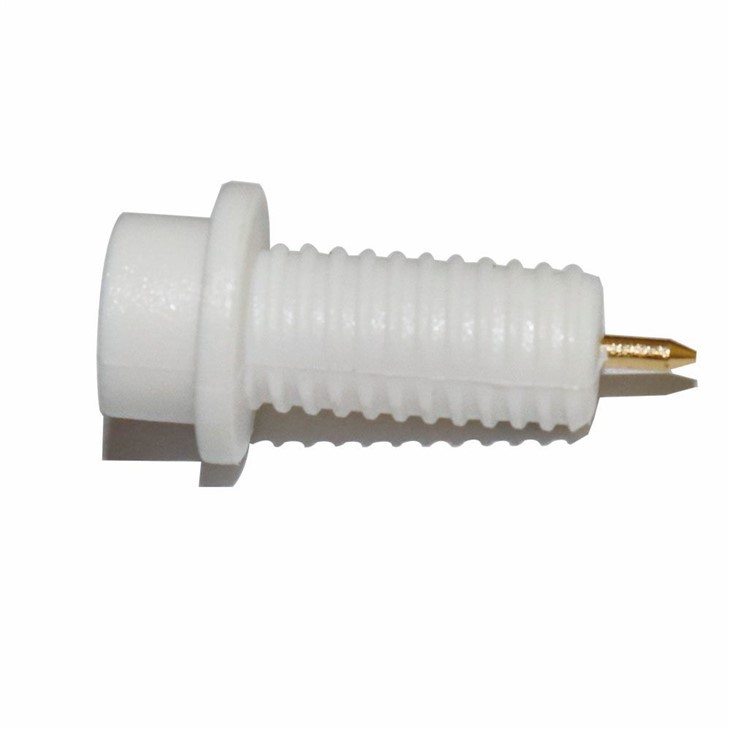

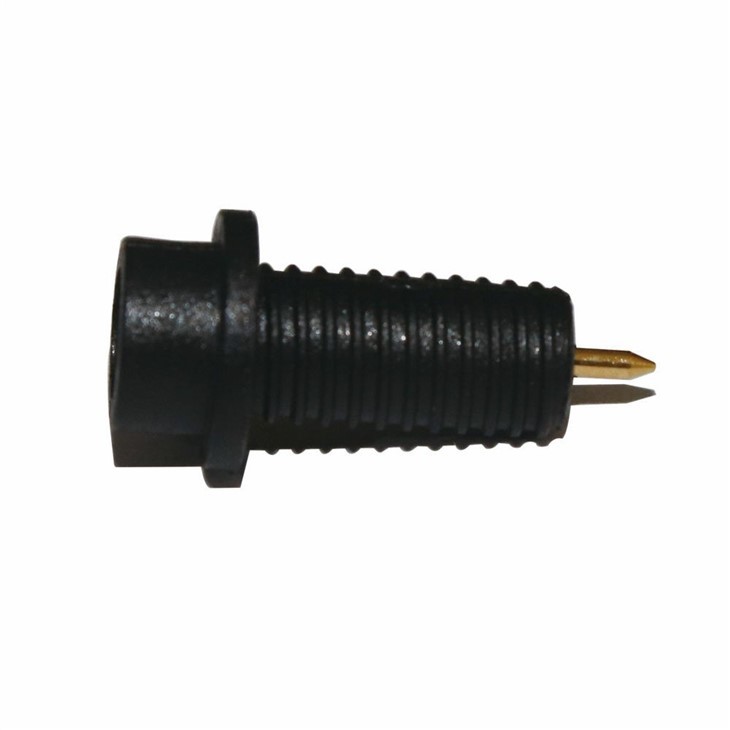

DIN 1.5 Female Socket for EEG leadwires ,Threaded Female Socket
Description
A DIN 1.5mm female socket designed to accept standard 1.5mm male lead wire pins.
Equipped with a screw-thread locking mechanism, ensuring secure attachment to EEG electrodes.
Provides a stable, low-noise electrical connection for accurate EEG signal acquisition
Specifications
Connector Type: DIN 1.5mm female socket.
Locking Mechanism: Internal screw thread (typically M2–M3, depending on model).
Contact Material: Gold-plated brass / nickel-plated brass (excellent conductivity & corrosion resistance).
Insulation Housing: Medical-grade ABS or TPU plastic.
Outer Diameter: ~6–8 mm (varies by manufacturer).
Socket Depth: ~10–12 mm for secure pin insertion.
Threaded Cap/Collar: Used to lock the electrode securely in place.
Color Coding: Available in multiple colors (Red, Black, Blue, White, Green, Yellow, etc.) for channel identification.
Standard Compliance: DIN 42 802 / IEC 60601-1 patient safety standards.
Advantages
Secure fit: Screw-thread prevents accidental disconnection during recording.
Signal stability: Gold-plated contacts reduce impedance and noise.
Durable & reusable: Designed for multiple sessions with proper care.
Color coding makes multi-channel EEG setup easier.
Applications
EEG electrodes (cup electrodes, disk electrodes, reusable Ag/AgCl electrodes).
Neurodiagnostic systems: EEG, EMG, EP (evoked potential), PSG (sleep study).
Patient monitoring systems requiring secure electrode connections.
Research labs, hospitals, and teaching institutes.
Cleaning & Maintenance
Disconnect before cleaning.
Wipe gently with 70% isopropyl alcohol or hospital-approved disinfectant.
Avoid soaking, autoclaving, or using strong solvents.
Regularly check threads and contact surface for wear or oxidation. Replace if loose or damaged.
Company
We are a professional manufacturer and exporter which specializes in Reusable SpO2 Sensor, Disposable SpO2 Sensor, SpO2 Extension Cable, ECG cable, EKG cable, IBP cable and Disposable pressure transducer, NIBP cuff & tube,Temperature Probe, semi-finished SpO2/ECG cables, SpO2/ECG/EKG/redial and different types monitor's OEM & ODM projects services.We have both legal production certifications and accuracy test equipment.Most of our products have passe CE Certification and ISO 13485 .
Product Application
Used in patient monitor, ECG Machine, Anesthesia Machine, Ventilator
