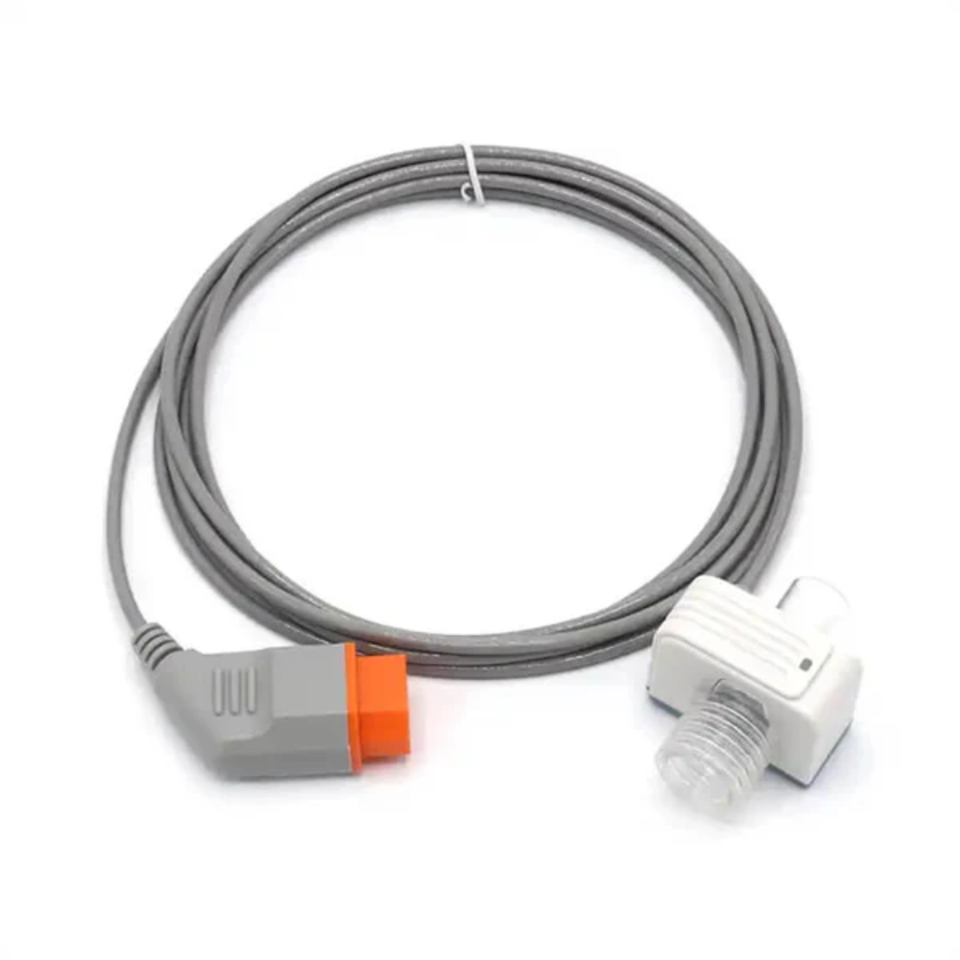

Nihon Kohden Mainstream Tec 8352K Etco2 Sensor
Technical Specification
|
Sample Flow Rate |
Range:50-150 ml/min; Accuracy:±20% ; Default: 75 ml/min |
|
Principle of Operation |
Non-dispersive infrared, dual wavelength, no moving parts |
|
Initialization Time |
Capnogram displayed in less than 4 seconds, at an ambient temperature of 25℃, full specifications within 2 mintues |
|
CO2 measurement Range |
0-114 mmHg ; 0-15% ; 0-15.2 kPa |
|
CO2 Response Time |
Includes Transport time and rise time.Less than 2 seconds, at 150 ml/min sampling flow |
|
CO2 Resolution |
0.2 mmHg @ 0-59 mmHg ; 0.5mmHg @60-114 mmHg |
|
CO2 Accuracy |
0-40 mmHg ± 2 mmHg41-70 mmHg ± 5% of reading |
|
CO2 Stability |
Short Term Drift : Drift over three hours shall not exceed 1 mmHg maximumLong term Drift : Accuracy specification will be |
|
CO2 Noise |
RMS noise of the sensor shall be less than or equal to 0.5 mmHg at 5% CO2 |
|
Sampling Rate |
100Hz |
|
Respiration Rate Range |
2 to 150 breaths per minute |
|
Respiration Rate Accuracy |
± 1 breath |
|
Calibration |
No Routine user calibration required |
|
EtCO2 Calcuation |
Method: peak of the expired CO2 waveform |
|
Inspired CO2 Measurement |
Method: Lowest reading of the CO2 waveform in the previous 20 seconds |
|
Temperature |
Operation : 0 to 40℃ ; Storage :-40 to 70℃ ; Transport :-40 to 70℃ |
|
Humidity |
Operation :10 to 90 % RH, Non-condensing ; Storage :10 to 90 % RH, Non-condensing. |
|
Atmospheric Perssure |
Operating :400-800 mmHg ; Storage :400-800 mmHg ; Transport :400-800 mmHg |
|
Water Resisitance |
IPX4-Splash-Proof- sensor only |
|
Voltage Requirements |
5 VDC ±5% ; Ripple not to exceed 100.0mV |
|
Power Raing |
< 1.2W Typical; < 2.0 W Warm-up |
|
Sensor Weight |
< 250 g |
|
Sensor Size |
Deep*Wide*High 102*62*38mm |
|
Cable Length |
75cm |

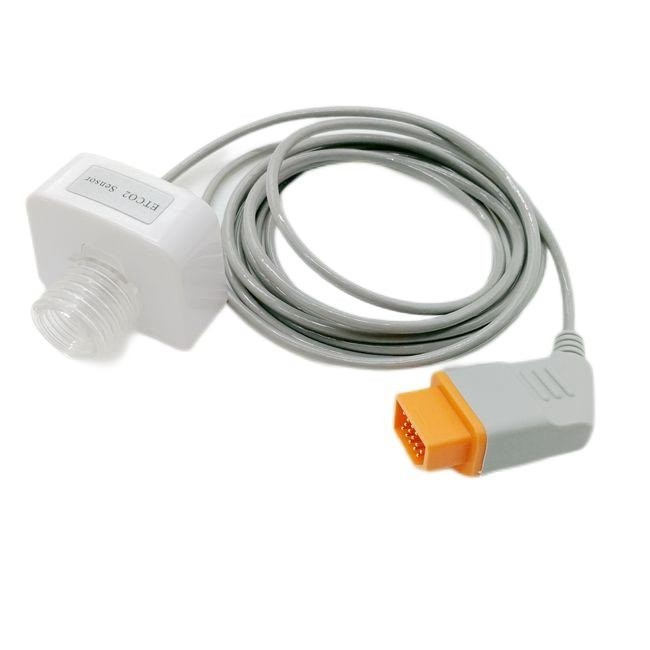

Products Image
requirements
1. Appearance requests:
a) The cable is round and glossy. the color uniformity. the jacket
is ok. no Disrepair. no dirt. no disfigurement. etc.
b) The surface of the connector is glossy. no burr. no obvious machine scar. no disfigurement. no modification. no dirt. no metal rust etc.
c)Plugs.cable.connections between the sensors should be strong. reliable
2. Size requirements:
Testing the Size according to the drawing.
(The important size requirements. please notify it on time)
3. Packaging requirements:
The packaging in accordance with the requirements of the engineer drawing. (In case of special packaging requirements. please promptly notify it.)
